Part Number:
IC693DNM200-BCWeight:
0.4kgDimensions:
3.5x13.2x13.5cmManufacture Year:
Latest yearPlace of Origin:
USACertification:
COODescription:

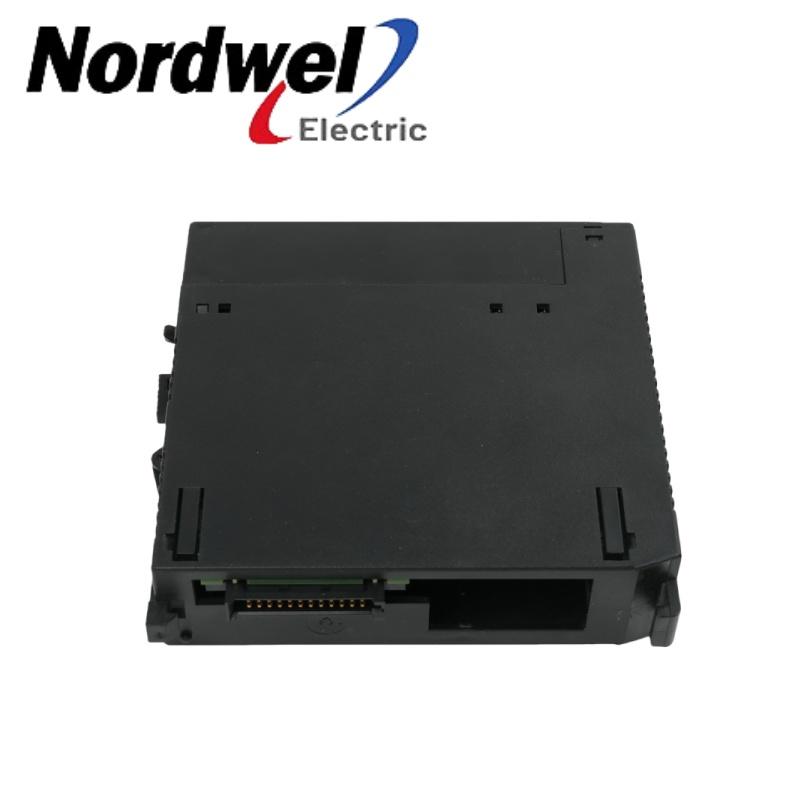

GE IC693DNM200-BC net master module
Get in touch today for a quick price
Sales manager : Tiffany Guan Email: sales2@mooreplc.com
Team: dddemi33@outlook.com Mobile / WhatsApp : + 86 18030235313
Product Information
|
Part Number |
IC693DNM200-BC |
Lead Time |
in stock |
|
Weight |
0.4kg |
Warranty |
12 months |
|
Dimensions |
3.5x13.2x13.5cm |
Port of loading |
Xiamen |
Parameter
Compatibility: Series 90-30, PACSystems RX3i
Communication Ports: One (1) DeviceNet terminal; One (1) Service port
Supported Network: DeviceNet
Communication Speed: 125K, 250K, and 500K
Supported Data Rates: 125K, 250K, and 500K Baud
Module Location: Any slot of Series 90-30 except slots 0 and 1
Rated Voltage: 12 to 24 Volts DC, positive logic
Module Width: Single slot
ON-State Voltage Drop: 0.3 Volts DC
Number of Slaves: Up to 63 DeviceNet slaves
ON / OFF Response Times: 0.5 milliseconds (maximum)
Number of I/O Connections per Slave: Two (2) I/O connections per slave
Number of Outputs: 32
Data Transfer per Slave: 255 Input Bytes / 255 Output Bytes
Inrush Current: 5.4 Amps for 10 milliseconds
Data Transfer to Master: 3972 Input Bytes / 3972 Output Bytes
Output Current: 0.5 Amps per point
Connection Type: Poll, Strobe, Cyclic, and COS I/O
Backplane Current Consumption: 450 milliAmps at 5 Volts DC (typical)
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Frequently asked questions
1.Does the IC693DNM200-BC come with a warranty?
Yes, the IC693DNM200-BC includes a free 2-year DO Supply warranty. You can upgrade to a 3-year warranty at checkout for even more protection.
2.What are the communication rates supported by the IC693DNM200-BC ?
The IC693DNM200-BC supports 125K, 250K and 500K transmission rates.
3.How many slots does the IC693DNM200-BC occupy in the baseplate?
The IC693DNM200-BC occupies a single slot only.
4.How many DeviceNet slaves can be connected to the IC693DNM200-BC ?
The IC693DNM200-BC can be connected to up to 63 slave nodes.
|
