Payment:
T/TPart Number:
CM202Weight:
0.22kgDimensions:
5.4x5.5x11.8cmManufacture Year:
The latest yearPlace of Origin:
AustriaCertification:
COODescription:
Module—— Specifications：

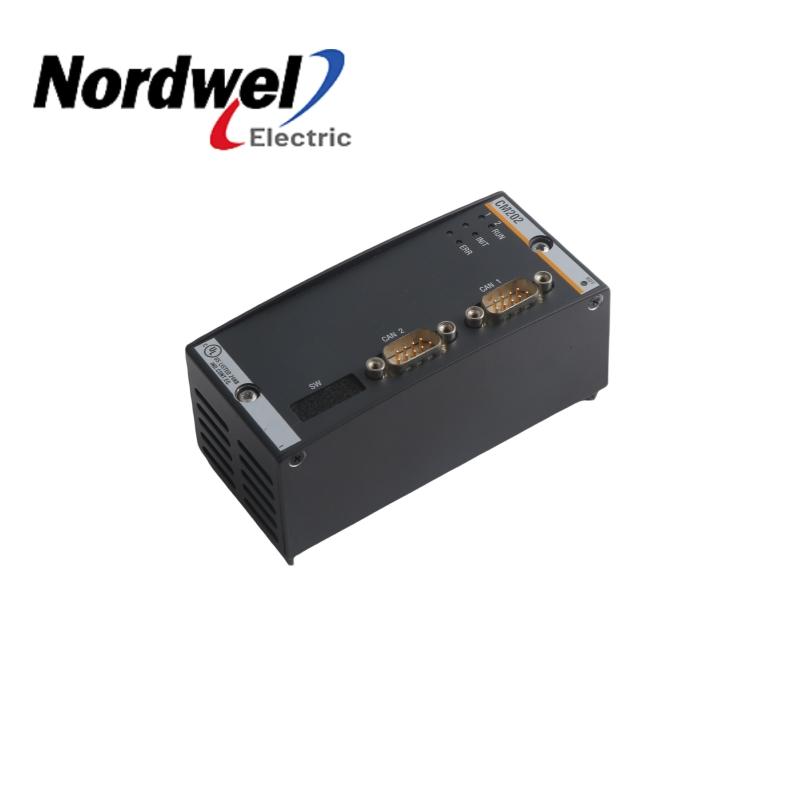

Model: CM202
Brand: Bachmann
Condition: Brand New and Origin
General specifications:
Maximum number of masters per M1 controller: 4.
Number of CAN buses per module: 2.
Maximum number of nodes per CAN bus: 64.
Protocol: CIA DS 301 for CANopen.
Device profile: CIA DS 405 compliant.
Firmware: Reloadable using flash technology.
Current consumption: 320mA at 5V DC.
Inquiry： Jenny Chan E-mail: sales3@mooreplc.com
Phone/Whatsapp/Skype: +86 18020714662
—— Feature：
CAN interface:
Transmission rate: 10kbaud to 1mbaud.
Bus length: Up to 5000 meters with signal repeaters.
Connection: 2 x 9-pin D-Sub female connectors.
Pinout: CIA DS 102/4 compliant.
Signal level: CIA DS 102/4 compliant.
CANopen functionality:
Master/slave functionality: Can be used as CANopen master or slave.
Startup mode: Supports minimum startup, no extended startup.
COB ID allocation: Through SDO, no DBT.
Node ID allocation: Support, no LMT.
Number of send/receive PDOs: 128 each.
PDO mode: Supports synchronous, asynchronous, RTR, event mode.
PDO mapping: Supports variable PDO mapping.
Emergency message: Support (master as client, slave as server).
Life Guardian: Supports heartbeat and/or node guard.
Number of SDOs: 4 servers, 64 clients.
Device profile: Compliant with 301, 302 and 405.
—— Frequently Asked：
Q: What is the warranty period of Bachmann CM202?
A: The warranty period of this product is 12 months.
Q: What is the data transmission rate range supported by CM202?
A: The supported data transmission rate range is 10kbaud to 1mbaud.
Q: How many nodes can be connected to each CM202 module at most?
A: Each module has 2 CAN buses, and each CAN bus can connect up to 64 nodes.
