Payment:
T/TPart Number:
KFD2-UT-EX1Weight:
0.6kgDimensions:
15x20x4cmManufacture Year:
The latest yearPlace of Origin:
GermanyCertification:
COODescription:
Module
Parameters

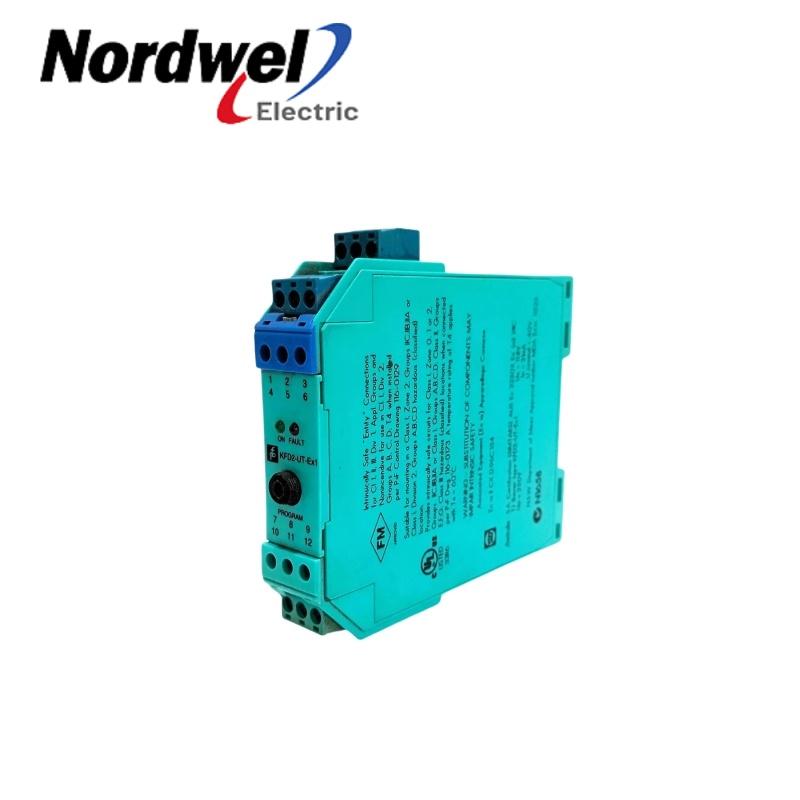

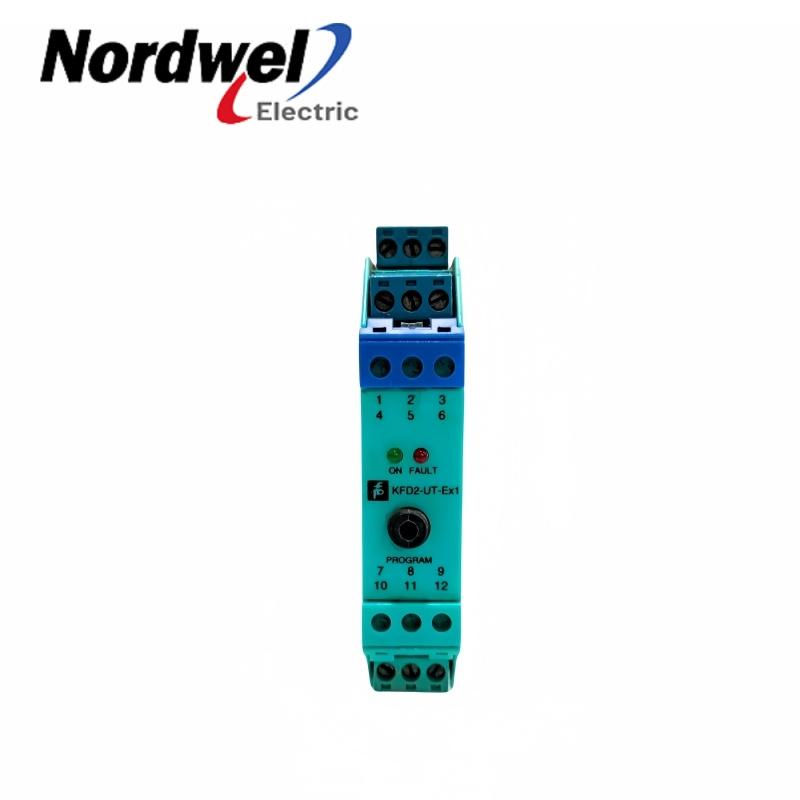

Model: KFD2-UT-EX1
Brand: PEPPERL & FUCHS
Condition: Brand New and Origin
Power supply: Rated voltage 20 - 35V DC, maximum power consumption 1.5W, typical power consumption 1W.
Input:
The input connection terminals are 1, 2, 3, 4, suitable for Pt100, Ni100, thermocouple and other signals, configured through the programming interface.
For RTD measurement, the measurement current is about 200µA, supporting 2-, 3-, 4-wire connection, and the maximum lead resistance of each line is 50Ω.
Thermocouple types support B, E, J, K, N, R, S, T and other types, with internal and external cold end compensation.
Potentiometer signals of 0 - 20kΩ (2-wire) and 0.8 - 20kΩ (3-wire) can be measured, and voltage signals of - 100 - 100mV can also be measured. The voltage input resistance in this range is ≥1MΩ.
Output:
Current output type, output range 4 - 20mA, output 20.5mA when over range.
Fault signal can be set to downscale 2 - 4mA or upscale 20.5 - 22mA.
Transmission response time 0 - 430ms.
Protection level: IP20.
Functional safety level: reaches SIL2, in line with IEC/EN 61508/IEC/EN 61511 standards.
Jenny Chan
E-mail: sales3@mooreplc.com
Phone/Whatsapp/Skype: +86 18020714662
Feature
Multiple signal inputs: can accept multiple analog signal inputs such as thermocouples, thermal resistors, potentiometers or voltages, can meet the conversion requirements of different types of sensor signals, and are suitable for a variety of industrial measurement occasions.
Isolation function: as an isolation barrier, it can effectively isolate field signals from control signals, prevent field interference signals from entering the control system, improve system stability and reliability, and ensure the safe operation of equipment.
Related Concerns
Q: What types of sensors can this signal converter be used with?
A: It can be used with thermal resistance sensors such as Pt100 and Ni100, thermocouple sensors such as B, E, J, K, N, R, S, T, and potentiometer sensors of 0 - 20kΩ (2-wire), 0.8 - 20kΩ (3-wire) and sensors with output - 100 - 100mV voltage signals.
Q: How to program and configure KFD2-UT-EX1?
A: Through the programming interface, use PACTware software to configure it, and set parameters such as signal type, range, fault signal output, etc.
1. Is your product new or refurbished?
A: Yes, All our products are original new with one year warranty.
2. Where is the country of origin?
A: The country of Origin is : USA
3. How long is your warranty?
A: We gurrantee all products have 1 year warranty
4. Do you have datasheet?
A: Yes. Do you need it for technical evaluation?
|
