Payment:
T/TPart Number:
4351BWeight:
2kgDimensions:
40x40x2mManufacture Year:
The latest yearPlace of Origin:
USACertification:
COODescription:
Module
Parameters

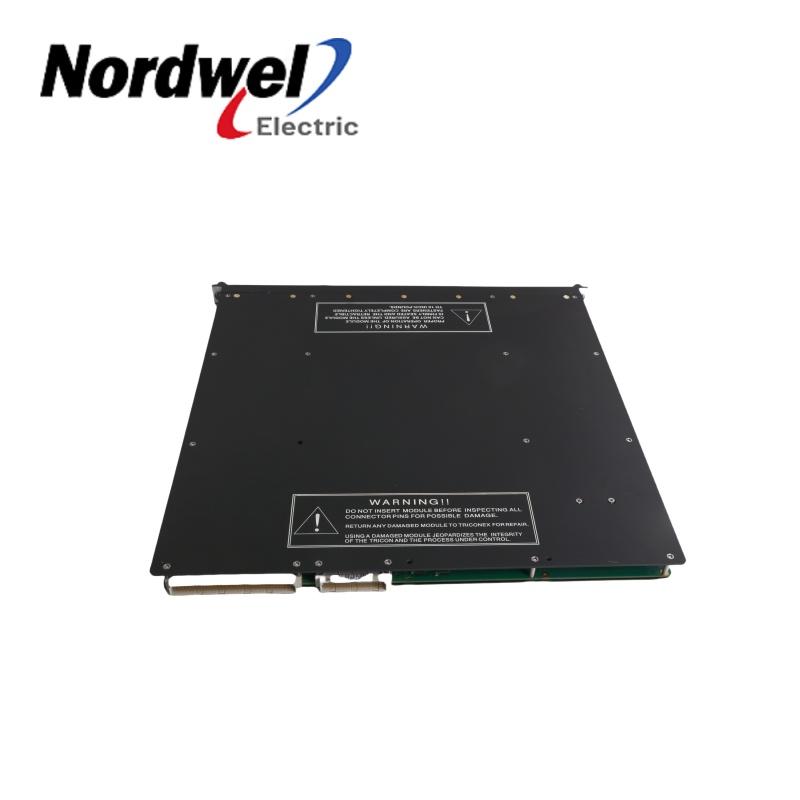

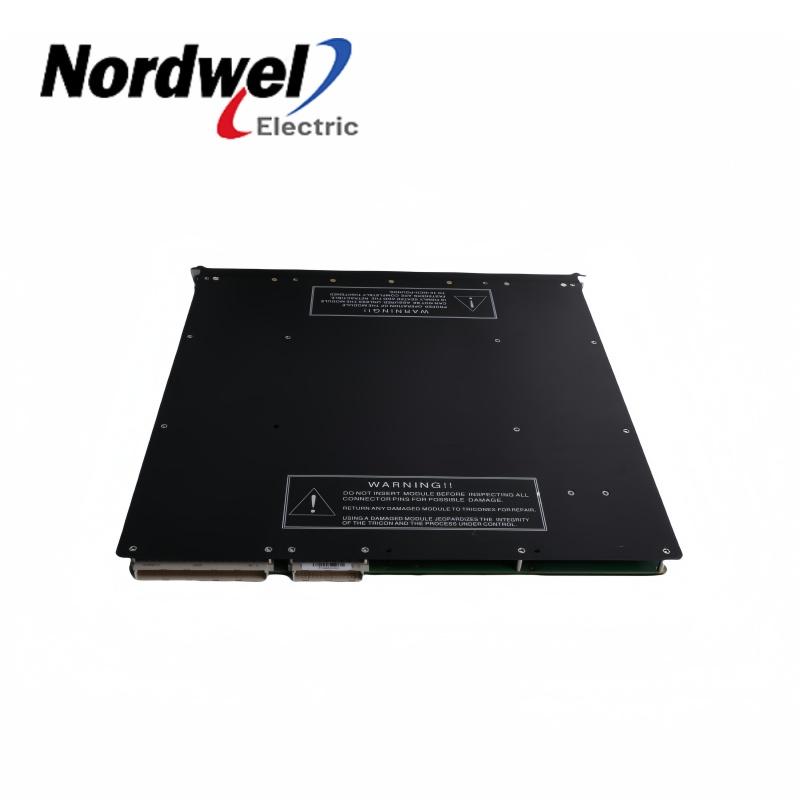

Model: 4351B
Brand: Triconex
Condition: Brand New and Origin

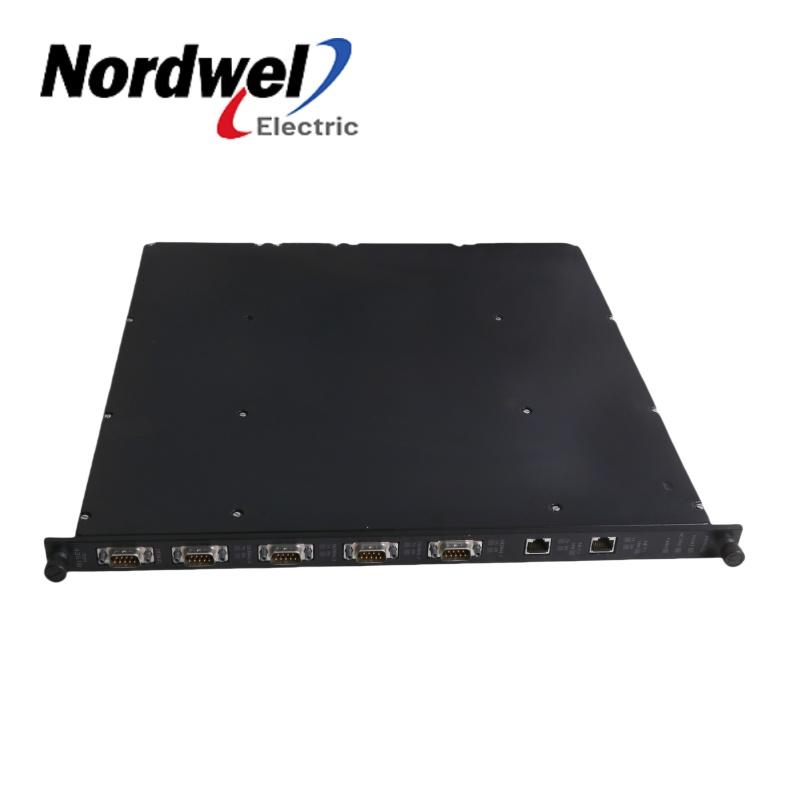

Serial port: 4, RS-232/RS-485 port, DB-9 connector.
Network port: 2 10/100BaseT Ethernet ports, RJ-45 connector; 2 fiber Ethernet ports, MT-RJ connector, using 62.5/125μm fiber optic cable.
Communication speed: copper Ethernet port communication speed is 10/100Mbps, fiber Ethernet port communication speed is 100Mbps, serial port communication speed can reach up to 115.2kbps/b].
Status indicator: with Pass, Fault, Active, Firm and other status indicators, as well as 1 Link indicator for each network port, 1 TX (transmit) indicator and 1 RX (receive) indicator for each port, so that users can understand the working status and communication status of the module in real time.
Jenny Chan 》》 E-mail: sales3@mooreplc.com 》》 Phone/Whatsapp/Skype: +86 18020714662
Feature
Support for multiple communication protocols: Supports Tristation, Modbus, TCP/IP, ICMP, SNTP, TSAA (supports IP multicast), Trimble GPS, Embedded OPC Server, Peer-to-Peer (UDP/IP), Peer-to-Peer Time Synchronization, Jet and other communication protocols, can communicate with different types of equipment and systems, realize data interaction and sharing, and meet the diverse communication needs of industrial automation.
High-speed communication capability: With 4 serial ports, each serial port communication rate can reach up to 115.2kbps; 2 10/100Mbps copper Ethernet ports and 2 100Mbps fiber Ethernet ports, which can quickly transmit large amounts of data and ensure real-time communication and efficient collaboration between various parts of the system.
Related Concerns
Master-slave mode: It can be used as a master or slave in Modbus communication and flexibly configured according to specific application requirements. When acting as a master, it can actively initiate data requests and control commands to communicate with multiple slave devices; when acting as a slave, it can respond to the master's request, upload data or perform control operations.
