Payment:
T/TPart Number:
3300/16Weight:
0.96kgDimensions:
32x20x4cmManufacture Year:
The latest yearPlace of Origin:
USACertification:
COODescription:
Module
Parameters

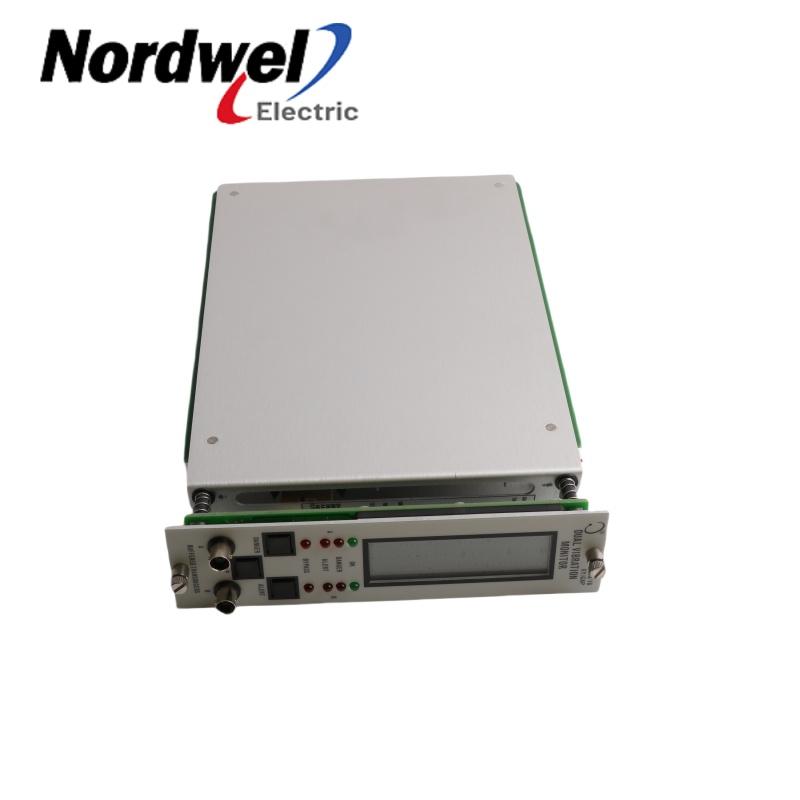

Model: 3300/16
Brand: Bently Nevada
Condition: Brand New and Origin
Input Signal: Accepts one or two proximity probe signals with 10kΩ input impedance.
Sensitivity: User programmable to 100mV/mil (4V/mm) or 200mV/mil (8V/mm).
Power Consumption: 2 Watts nominal.
Signal Conditioning Accuracy: ±0.33% of full scale typical, ±1% maximum.
Jenny Chan
E-mail: sales3@mooreplc.com
Phone/Whatsapp/Skype: +86 18020714662
Feature
Frequency Response: User programmable 4 to 4,000Hz (240 to 240,000cpm) or 1 to 600Hz (60 to 36,000cpm), -3dB nominal.
Recorder Output: User programmable between +4 to +20mA, 0 to -10VDC, or +1 to +5VDC. Voltage or current output is proportional to the full scale of the programmed monitor, each channel has a separate recorder output, and shorting the recorder output has no effect on monitor operation. Where recorder accuracy at +25°C is: 0.7% of signal from +4 to + 20mA, 0.09mA offset; 1.1% of signal from +1 to + 5VDC, 10mV offset; 1.1% of signal from 0 to -10VDC, 15mV offset.
Buffered Sensor Output: Output impedance short circuit protected.
Sensor Supply Voltage: User programmable in power supply to -24VDC or -18VDC.
Alarm Set Points: Resolution digitally adjustable from 0 to 100% full scale, repeatability to within ±0.39% of full scale, gap alarm time delay of 6 seconds.
Related Concerns
Q: What types of equipment is this monitor suitable for?
A: It is suitable for various rotating mechanical equipment that needs to monitor radial vibration and shaft position, such as motors, pumps, compressors, fans, etc. It can help users to timely detect abnormal vibration and shaft displacement problems of the equipment, prevent equipment failures, and ensure the safe and stable operation of the equipment.
Q: How to choose the appropriate full-scale range option and sensitivity setting?
A: It needs to be selected according to the specific specifications, operating parameters and accuracy requirements of the monitored equipment for vibration and shaft position monitoring. Generally speaking, if the vibration amplitude of the equipment is small and higher accuracy is required, a smaller full-scale range and a higher sensitivity setting can be selected; if the vibration amplitude is large and the accuracy requirement is relatively low, a larger full-scale range and a lower sensitivity setting can be selected. At the same time, the normal operating range of the equipment and possible abnormal conditions must also be considered to ensure that the monitor can accurately capture key information.
1. Is your product new or refurbished?
A: Yes, All our products are original new with one year warranty.
2. Where is the country of origin?
A: The country of Origin is : USA
3. How long is your warranty?
A: We gurrantee all products have 1 year warranty
4. Do you have datasheet?
A: Yes. Do you need it for technical evaluation?
|
