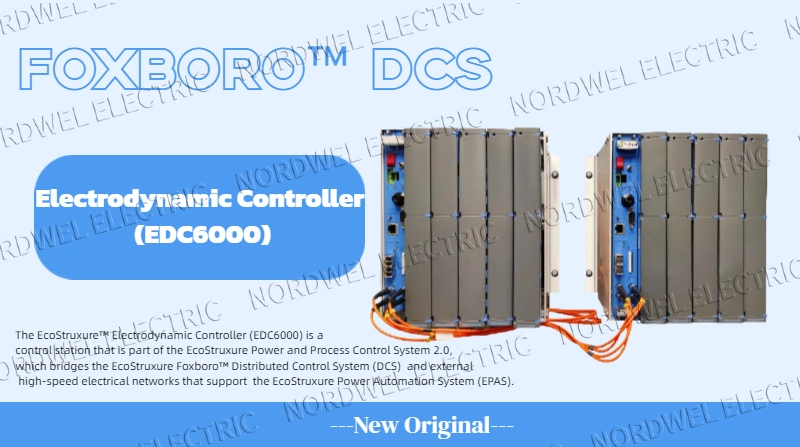

The Foxboro™ DCS Electric Power Controller (EDC6000) represents a major breakthrough in industrial automation, achieving seamless integration between process control and electrical systems. As a core component of the EcoStruxure Power and Process Control System 2.0, the EDC6000 completely breaks down the barriers between the previously independent operation of process control and electrical power systems. This controller acts as a critical hub, tightly integrating the mature Foxboro™ Distributed Control System (DCS) with the high-speed EcoStruxure Electric Automation System (EPAS) network. This innovation provides operators with an unprecedented global perspective, elevating plant operation visibility to new heights. Operators can now proactively identify potential problems in the power distribution network before process units are started up and accurately assess the potential impact of advanced power management strategies such as Intelligent Fast Load Switching (iFLS) on production processes. This marks a fundamental shift in plant operation from reactive to proactive.
Foxboro™ DCS Electrodynamic Controller (EDC6000) Centralizes Data and Control for Unprecedented Operational Insight
At the heart of its functionality, the EDC6000 excels as a centralized data hub and control processor. It is engineered to interface with a vast array of Intelligent Electronic Devices (IEDs), gathering critical data and distributing it to user interfaces. During this process, the controller performs complex internal regulatory, logic, timing, and sequential control functions. It supports robust alarm detection and sequence of events (SOE) notification, providing a clear audit trail for operational events. The device's capacity is significant, supporting up to 214 low-voltage Modbus devices or a combination of 59 medium-voltage IEC 61850 devices and 22 low-voltage Modbus devices, translating to a capability of handling up to 8,000 I/O blocks. This centralized approach ensures that data from previously disconnected systems is now correlated and actionable.
Foxboro™ DCS Electrodynamic Controller (EDC6000) Ensures System Resilience Through Advanced Configurations and Cybersecurity
Understanding the critical nature of its role, the EDC6000 is designed with a strong emphasis on system availability and security. It can be deployed in either simplex or high-availability configurations. The high-availability setup provides redundant control mechanisms that support Foxboro DCS Control Network redundancy and various forms of electrical network redundancy, ensuring continuous operation even during a component failure. Furthermore, it enables softwired load management via TCP/IP, reducing reliance on traditional hardwired I/O and increasing flexibility. From a cybersecurity perspective, the controller is configured and deployed to standard, secure Foxboro SCADA™ SCD6000 hardware, with its approach detailed in dedicated guides such as the EcoStruxure™ Foxboro™ SCADA SCD6000 Cybersecurity User’s Guide (B0780ES), ensuring that resilience extends to digital threats.
Foxboro™ DCS Electrodynamic Controller (EDC6000) Empowers Intelligent Power Management and Custom Logic
The EDC6000 moves beyond simple data aggregation to enable intelligent, automated strategies that protect both power and process assets. A key capability is its integration with the EcoStruxure Power Automation System's intelligent Fast Load Shedding (iFLS). The controller stabilizes the medium-voltage network by sending required data to the iFLS controller, which can shed load in response to a sudden loss of spinning reserve capacity, preventing a widespread blackout. To provide unparalleled flexibility, the controller supports powerful programming and function tools:
·State and Logic Language (SALL): Allows for the implementation of individual control and data processing logic, supporting control queues, floating-point arithmetic, and local vector array programming.
·Intrinsic Database Functions (IDF): Provides data-driven infix functions for creating logical relations between database points and deriving new results.
·Foxboro DCS Control Blocks: Supports select Foxboro DCS control blocks, including CALCA blocks for developing custom logic sequences and state machines within the DCS domain.
·Foxboro™ DCS Electrodynamic Controller (EDC6000) Offers Practical Advantages for Modernization and Daily Operations
The practical benefits of the EDC6000 are clear in both large-scale modernization projects and daily plant activities. Its support for online upgrades allows for the updating of controller pairs in high-availability configurations with new firmware and configuration files without any interruption to system operations, a critical feature for 24/7 industries. The ability to diagnose communication link issues with Ethernet connections without physically disrupting device interfaces significantly reduces maintenance time and improves mean time to repair. Furthermore, the controller's support for multiple types of softwired I/O and hardwired modules, such as the 4 Channel Analog Output Module, provides engineers with the flexibility to interface with both legacy and modern field devices, ensuring the EDC6000 can be seamlessly integrated into existing infrastructure while paving the way for a more connected and intelligent plant floor.
