Payment:
T/TPart Number:
MMS6312Weight:
0.26kgDimensions:
3x18.8x12.8cmManufacture Year:
The latest yearPlace of Origin:
GermanyCertification:
COODescription:
Module
Parameters

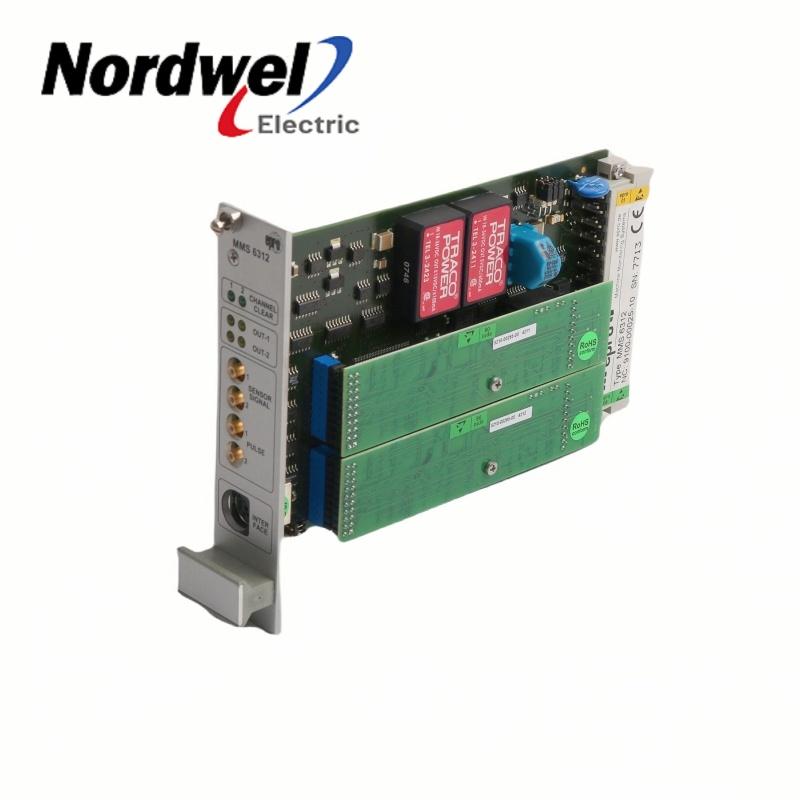

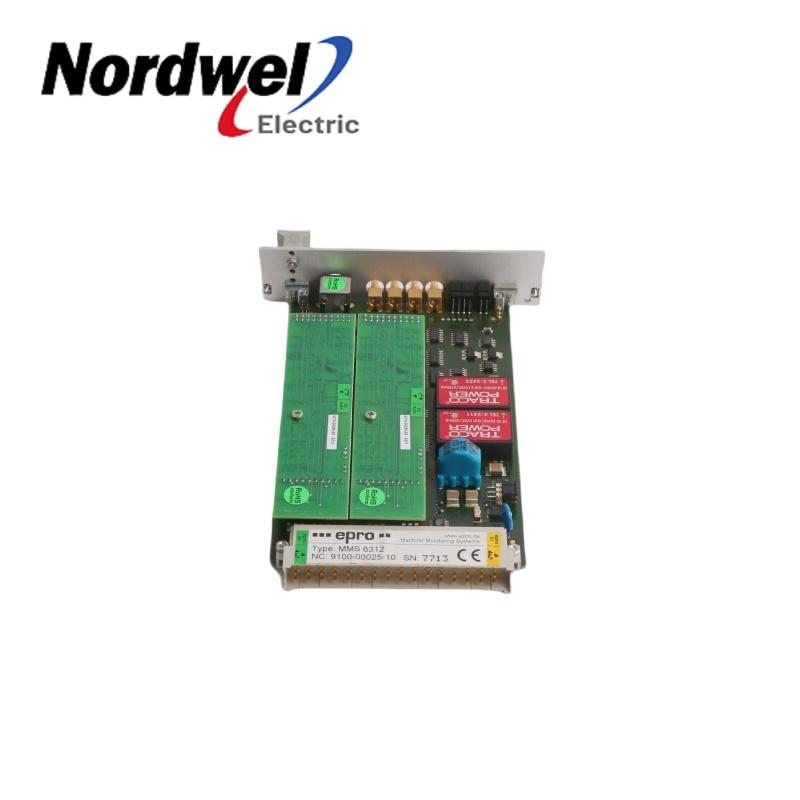

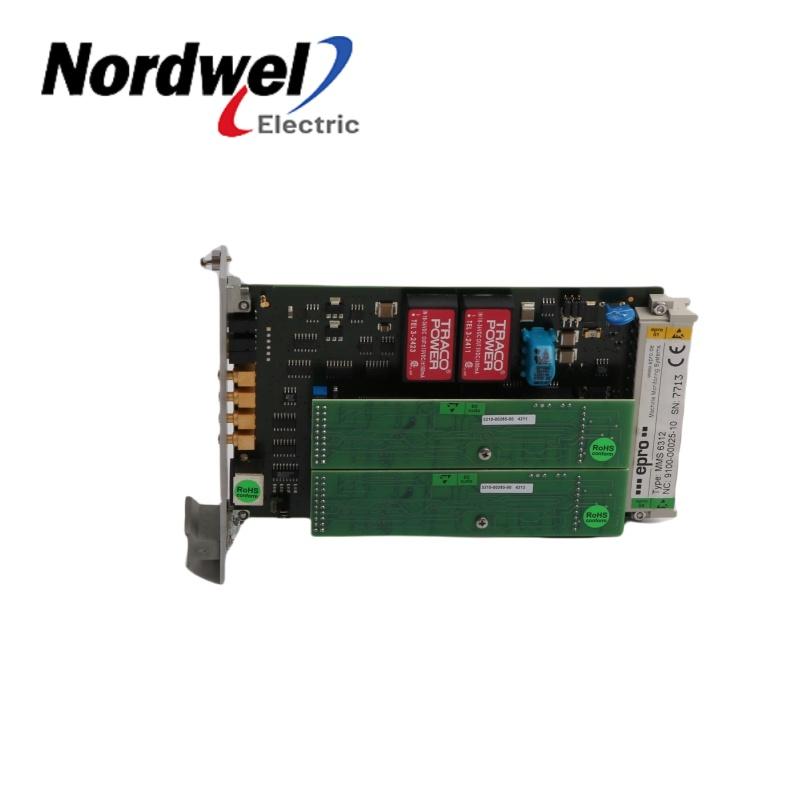

Model: MMS6312
Brand: EPRO
Condition: Brand New and Origin
Sensor input:
There are two independent inputs, suitable for eddy current sensors PR642./.. and preamplifier CON0.. series, or PR9376/.. sensors from German epro.
Input impedance: >100 kΩ. Input voltage range: 0…-27.3 V dc, maximum input voltage range: 0…30 V.
Input frequency range: 0…20000 Hz. The trigger level can be adjusted automatically or manually, and the minimum input level for automatic tracking is 2V. Sensor power supply: Provides independent buffered power supply output for the sensor of each input channel, which is electrically isolated from the system voltage and power supply, and has open circuit and short circuit protection.
Rated voltage: ±26.75 V dc. Rated current: 20mA / maximum 35mA.
Measuring range: Continuously adjustable through the configuration software, input frequency range: 0…20 kHz, up to 65535 RPM, configurable.
Control input:
Binary input shared by two channels, used to reset the alarm hold and control whether the optocoupler output is turned on to achieve alarm inhibition, 24V logic.
Input impedance: >10 kΩ.
Output:
There are two TTL pulse outputs, one for each channel, voltage 0...+5V, the width and frequency of the pulse are related to the sensor signal, which can be measured at the rear terminal or the front panel SMB interface "Pulse".
Two key phase signal outputs, one for each channel, the maximum output voltage is 24V, the output terminals are (d14/b14) and (d16/b16).
Two current outputs representing speed 0/4...20mA, one for each channel, the output terminals are z18/b18, z20/b20.
Limit monitoring:
Four independent alarm outputs are provided: Out1-1 (b26/b28), Out1-2 (d26/d28), Out2-1 (b30/b32), Out2-2 (d30/d32).
Each output can be selected as "rising limit", "falling limit", "cranking", "differential" or "rotation direction" in the configuration. In redundant mode, four alarm outputs are available, but "differential" and "rotation direction" selection is not available.
Power supply requirements: Two power supply inputs, internally isolated from each other by diodes.
Supply voltage: 18…24…31.2 V dc.
Power consumption: maximum 7.2 W (maximum current 300 mA at 24 V).
