Part Number:
1746-NIO4VWeight:
0.3kgDimensions:
12.7 cm x 5.1 cm x 15.2 cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

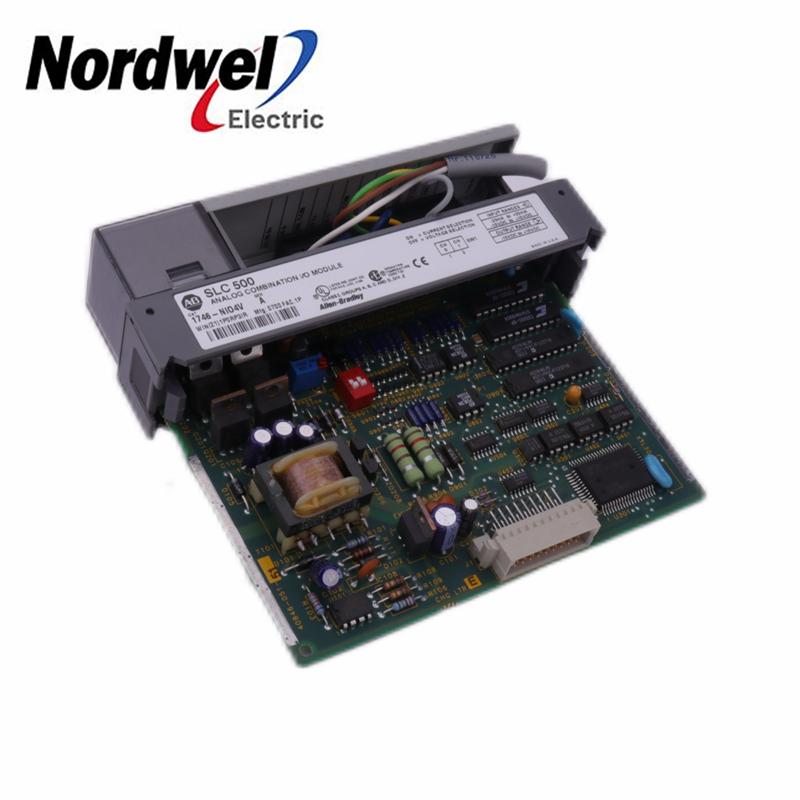

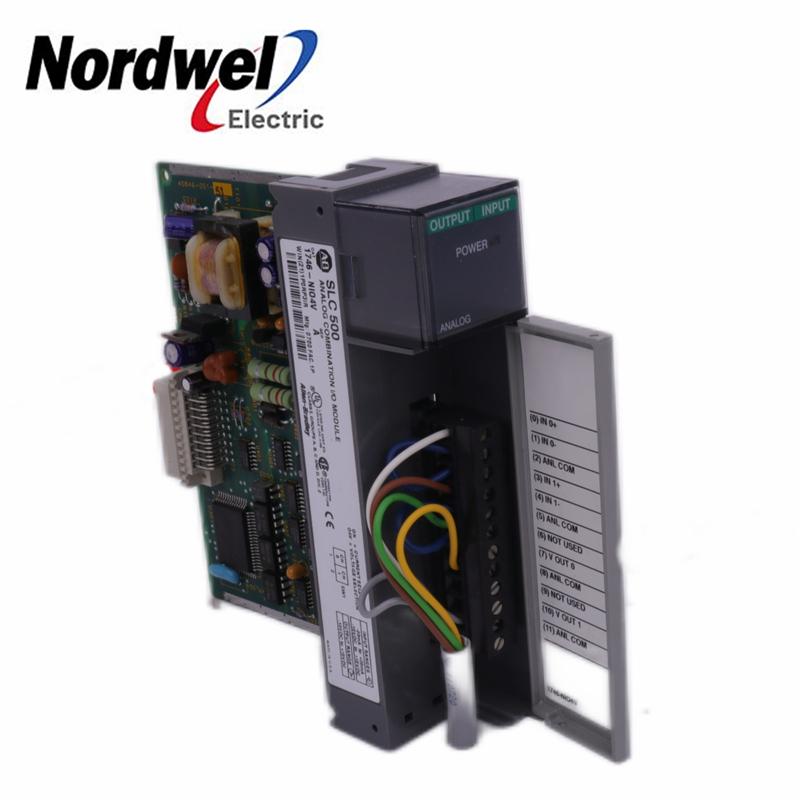

1746-NIO4V SLC 500 Analog Combination Module
Technical Description of 1746-NIO4V
The 1746-NIO4V is a SLC 500 Analog Combination Module. It has 2 Inputs and 2 Outputs with a Backplane Current (5 Volts) of 55 milliamps and a Bandwidth of 10 Hertz.
Technical Specifications for 1746-NIO4V
Manufacturer Automation
Module Type Analog combination module
Series SLC500
Part Number/Catalog No. 1746-NIO4V
No. of inputs Two (2) Differential Voltage / Current inputs
Current Input range -20 to 20 mA
Current input resolution 1.22070 µA per LSB
Voltage Input range -10 to +10V dc - 1 LSB
Voltage input resolution 305.176 µV per LSB
No. of Outputs Two (2) non-isolated voltage outputs
Output Voltage range -10 to +10 volts
Output voltage resolution 1.22070 mV per LSB
Backplane Current at 5.1 Volts 0.55 mA
Backplane Current at 24 Volts 115 mA
Inputs 2
Outputs 2
Backplane Current (5 Volts) 55 milliamps
Backplane Current (24 Volts) 115 milliamps
Bandwidth 10 Hertz
Update Time 512 microseconds
Resolution 16 bits in, 14 bits out
Step Response 60 milliseconds in, 2.5 milliseconds out
Mounting Rack mount
UPC 10662073735899
The 1746-NIO4V is an Analog Combination I/O module for enhancing SLC 500 control systems.
It is a module within the SLC 500 controllers which offers a unique and easy to use interface, featuring two input
channels and two output channels. The combination of the input and outputs in the same module allows for
expansion in a space- and cost-efficient manner. The input channels are user-selectable by switches found on
the analog control module. To configure the inputs to current, move the switch in the ON position. To configure
for voltage inputs, move the switch to the OFF position. Channels are not individually isolated.
