Part Number:
1786-RPFRLWeight:
1.4kgDimensions:
5.1cmX12.7cmX27.9cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

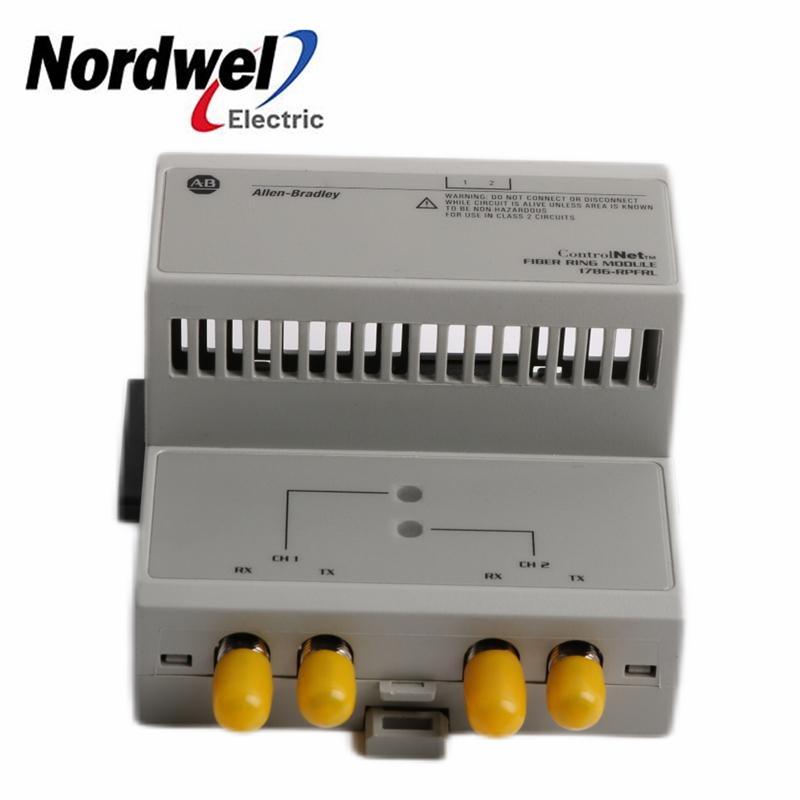

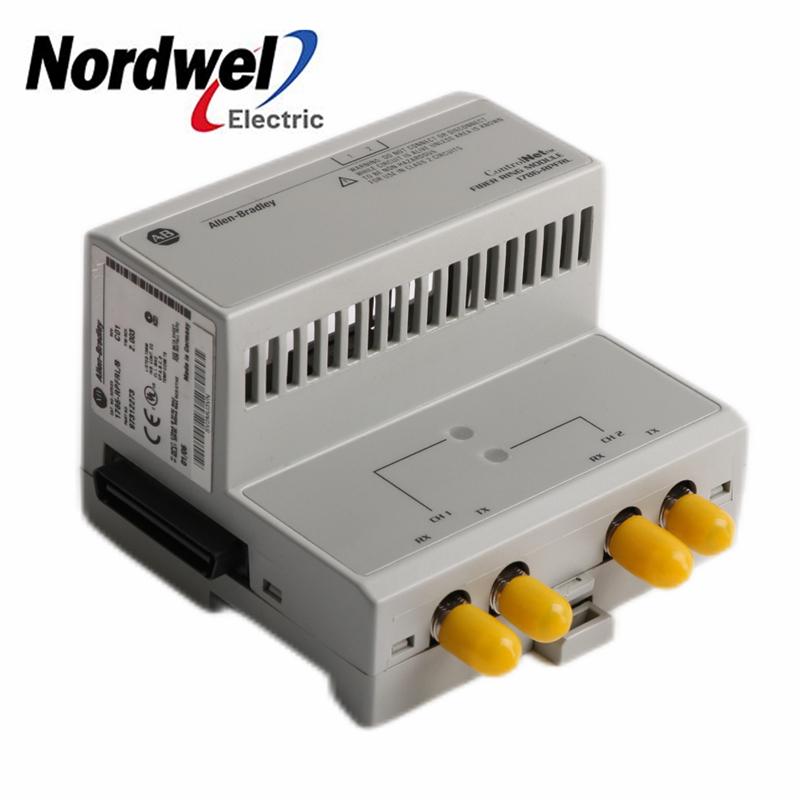

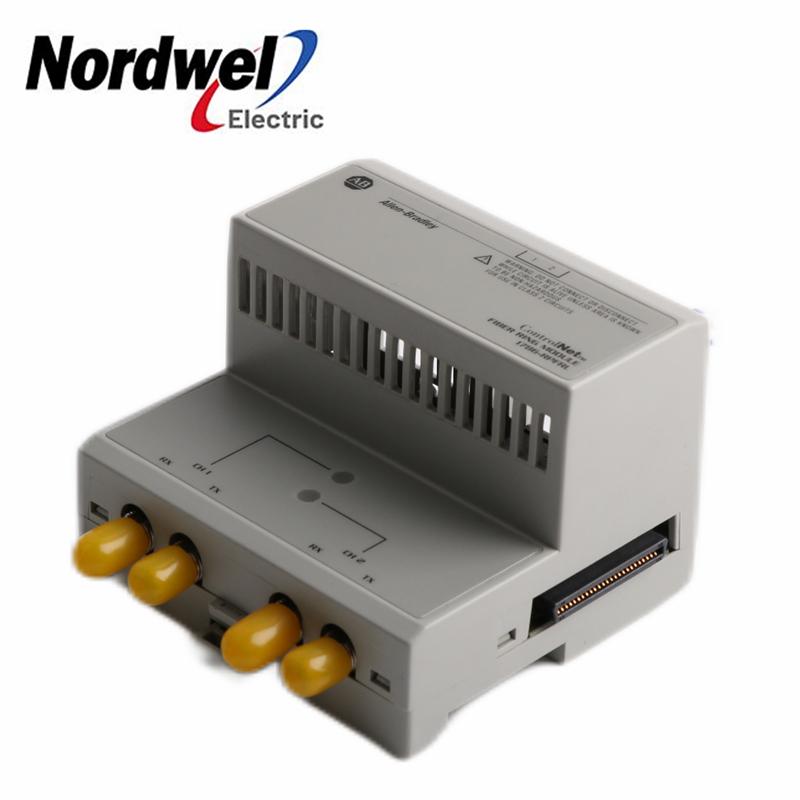

1786-RPFRL Fiber Ring Repeater Module
Long Description:
1786 ControlNet Repeaters with Fiber Ring Repeater Module type, 62.5/125 micron
multi-mode fiber fiber type, and 5V DC power
Technical Specifications for 1786-RPFRL
Brand / Automation
Series ControlNet Accessories
Part number 1786-RPFRL
Product type Repeater module
Module type Long-distance repeater module
Repeater distance rating 0 to 10 kilometers
Backplane current 570 milliamps
Ring topology Supported
Cable type Fiber cables
Node address capacity 98
The 1786-RPFRL module is a ControlNet fiber optic ring repeater module. It supports fiber
media redundancy through the use of a ring topology which enables long transmission ranges, protection
against electromagnetic interference, and ground isolation between the nodes. The distance between fiber
repeaters depends on a number of factors including the fiber quality, number of splices, and number of
connectors. For the 1786-RPFRL module, the loss on the fiber links must be less than 15 dB. The total length
of the fiber ring is limited by the ControlNet standard to 20 kilometers or less. Plastic or ceramic ST fiber
connectors should be used with the module. Metal connectors are not supported.
