Part Number:
1746-NR4Weight:
0.3kgDimensions:
12.7 cm x 5.1 cm x 15.2 cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

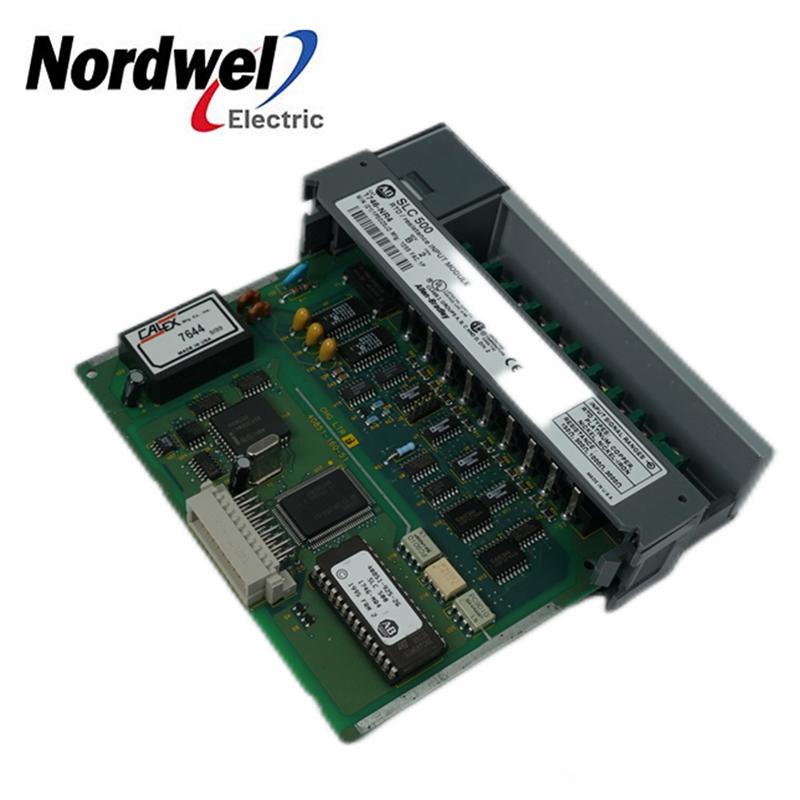

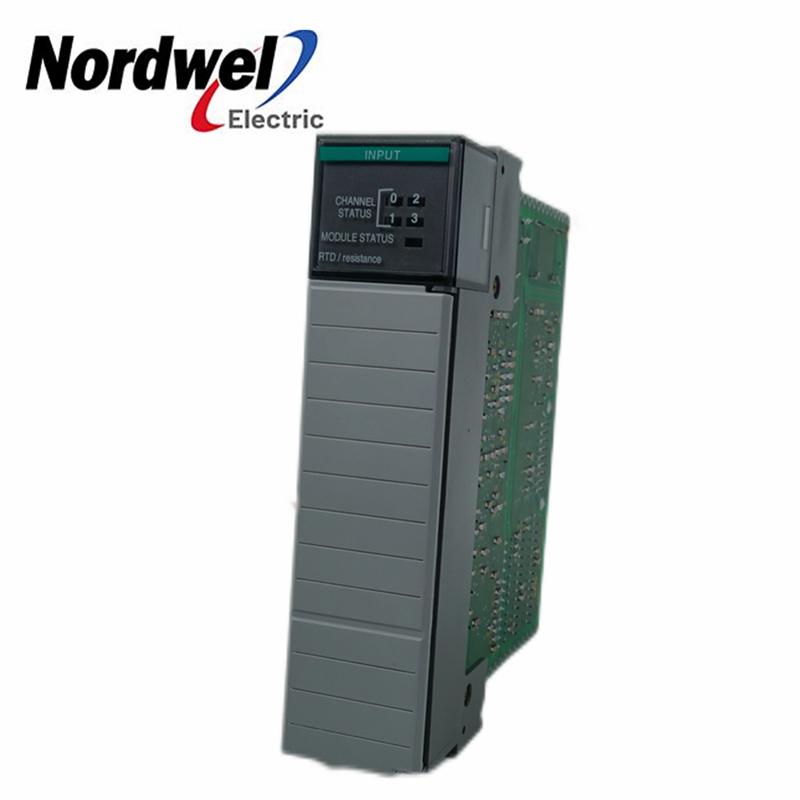

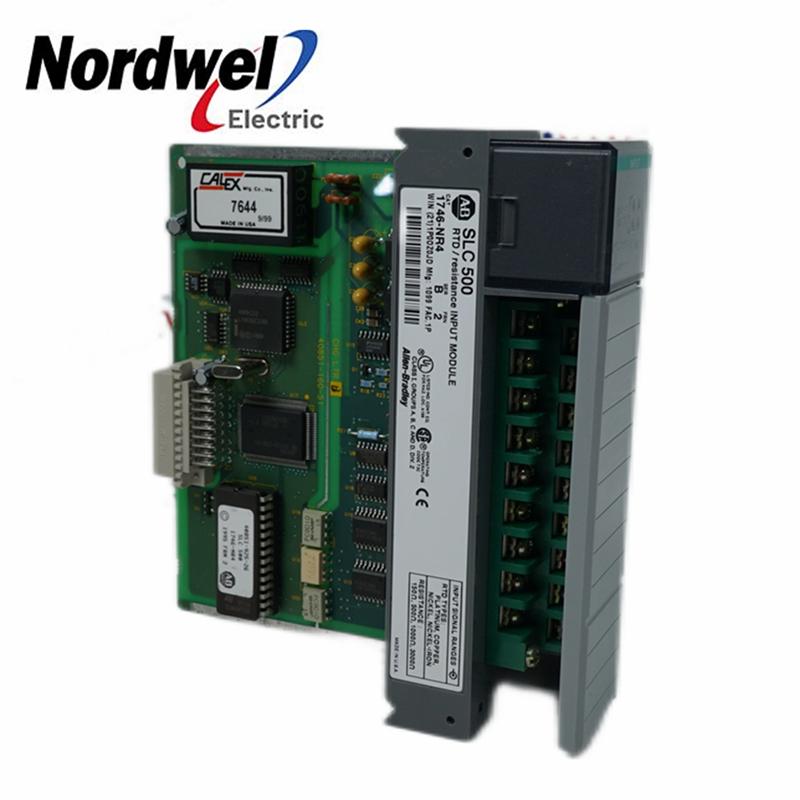

1746-NR4 SLC 500 RTD/Resistance Analog Input Module
Technical Description of 1746-NR4
The 1746-NR4 is a SLC 500 RTD/Resistance Analog Input Module. This RTD/Resistance
Analog Input Module has 4 Inputs and a Backplane Current of 50 milliamps.
Technical Specifications for 1746-NR4
Manufacturer Automation
Series SLC 500
Part Number/Catalog No. 1746-NR4
Inputs 4
Module Type RTD/Resistance Analog Input Module
No. if Inputs Four (4)
Bandwidth 2.62-65.5 Hertz
Compatible RTD Sensors Platinum (385) 100, 200, 500 and 1000; Platinum (3816) 100, 200, 500 and 1000;
Copper (426) 10, Nickel (618) 120, Nickel (672) 120, and Nickel Iron (518) 604.
Update Time 17 milliseconds-1.2 seconds
Compatible Resistance input range 0 - 150 Ohms, 0 to 500 Ohms, 0 to 1000 Ohms and 0 to 300 Ohms
Backplane Current 50 mA
Backplane Power Consumption 1.5 W max (0.3 W at 5V dc, 1.2 W at 24V dc)
I/O Chassis location Any slot except Slot 0
Step Response 60 milliseconds in, 2.5 milliseconds out
Resolution . 01 Deg. Celcius
Operating Isolation 500 Volts/1 minute
Operating Temperature 0 to 60 degrees Celsius
Storage Temperature -40 to 85 degrees Celsius
A/D Conversion method Sigma-delta modulation
Manager Steve quotes to you
cn@mooreplc.com
+8618005028963
we offer original new with 1 year warrenty
4)Large inventory: Our warehouse is capable of holding up to 60,000 pallet spare parts.
|
|
|
|
|
