Part Number:
1769-IQ32TWeight:
0.2kgDimensions:
3.8 cm x 14.0 cm x 8.9 cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

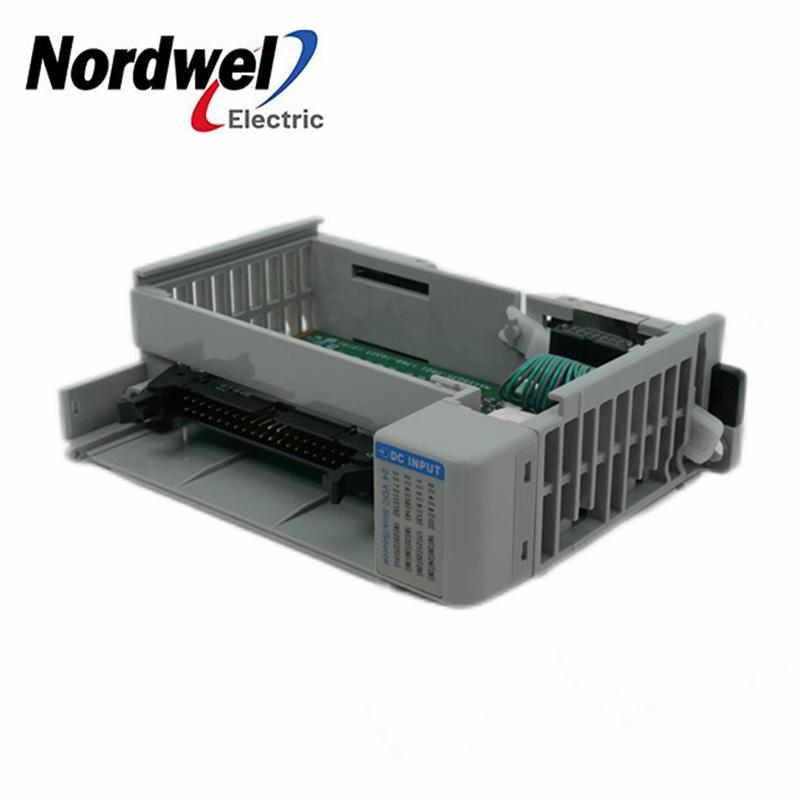

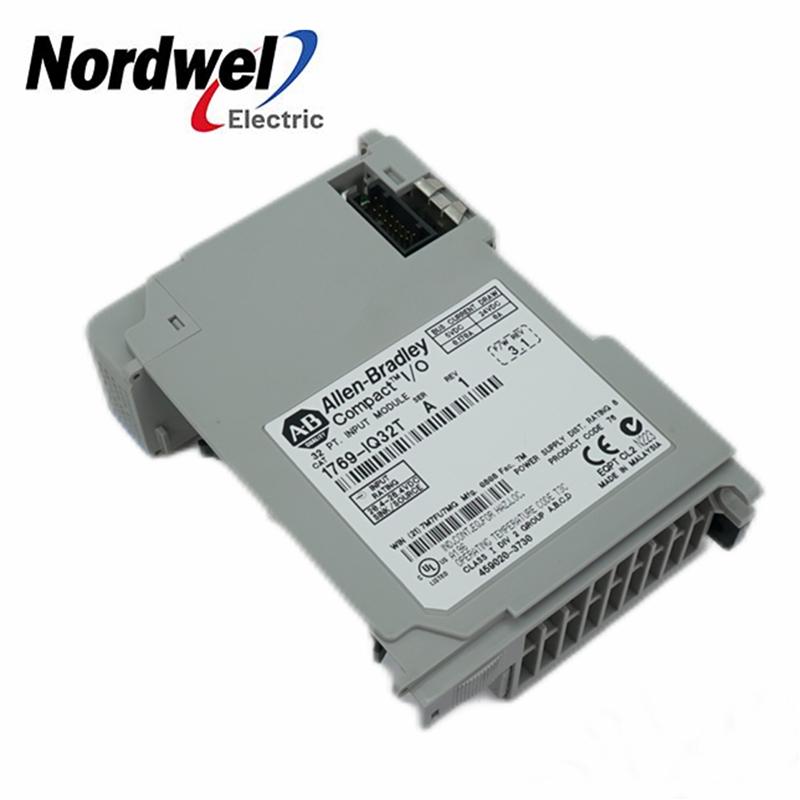

1769-IQ32T Compact 32-point 24V dc Sink/Source Input Module
Technical Description of 1769-IQ32T
CompactLogix 32 PT. 24 DC Power Input - Single Wide I-O Module. RSLogix5000 |
Series A&B |copper wire type. The 1769-IQ32T has an operating voltage range of 20.4-26.4V DC
at 60 °C (140 °F). Its minimum on-state voltage is 19V DC and its maximum inrush current is 5 mA.
It has a Type 1+ IEC input compatibility with an open-style enclosure type rating.
Technical Specifications for 1769-IQ32T
Manufacturer Automation /
Part Number/Catalog No. 1769-IQ32T
Product Type: Discrete Input Module
Product Line CompactLogix
Product Family: Compact I/O
Module Type Compact DC Input Module
Input Type Digital Input
No. of Inputs: 32
No. of Groups: 4 groups (8 inputs each)
Power Supply Distance rating: 8
Communication Cable 32 Point
Compatible Controllers: MicroLogix 1500; CompactLogix
Wiring Accessory: 1746-N3 (shipped with the module)
Series A and B
Wiring systems: 1492 wiring systems
Voltage Category: 24V DC sink/source
Voltage Rating 24 Volts DC Sink/Source
Operating Voltage range: 10…30V DC @ 30 °C (86 °F) 10…26.4V DC @ 60 °C (140 °F)
Off-state Voltage: 5V DC
Replacement Terminal Block 1769-RTBN18
On-state Voltage: 10V DC
Wire Type Copper-90 degrees Celsius
Input delay, On: 8 ms
Wire Size (Solid) 22-14 AWG
Power Supply: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Mounting: DIN rail or panel mount
