Essential Protection for Critical Field Instruments in Process Control

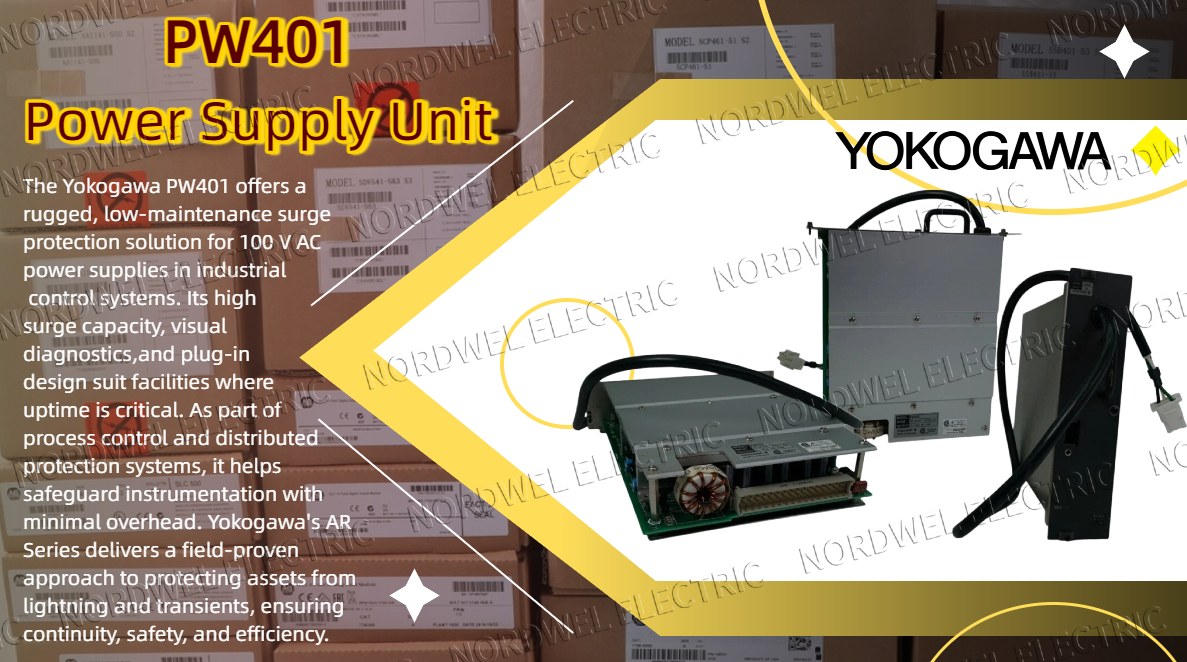

The Yokogawa PW401 is a high-performance surge arrester engineered to safeguard 100 V AC power supply lines for field instruments carrying load currents up to 20 A. Designed specifically for industrial automation and process control environments, this device absorbs the energy from inductive lightning surges and transient overvoltages that can compromise sensitive automation and control components. By clamping dangerous voltage spikes before they reach downstream equipment, the PW401 ensures the integrity and longevity of connected instrumentation – from PLC Systems and HMI displays to servo drives and motors. For plants operating critical rotating machinery, this protection layer is indispensable, helping maintenance teams avoid costly downtime and protecting investments in industrial automation components.

Rugged Hardware Design with Key Monitoring Features

The PW401 boasts specifications tailored for demanding industrial settings, with a maximum continuous operating voltage of 140 V AC and a voltage protection level of 1000 V or less. It handles nominal discharge currents of 500 A and maximum discharge currents of 1000 A, proving its capability to absorb severe surge events. The device complies with JIS C 5381-1 (Class II), and its green LED status indicator confirms that the surge-absorbing element remains intact – lighting up when power is supplied and extinguishing to signal that the element has degraded and requires replacement. This built-in diagnostic capability supports quick troubleshooting by maintenance technicians, reducing the need to rely solely on hard-to-find automation parts for diagnostics. A further advantage is the plug-in design separating the main body from the terminal block; the main unit can be removed for testing with the optional AR2-CK checker without opening the circuit between the surge side and protected side, preventing unintended process interruptions.

Simplified Maintenance and Long-Term Reliability

The PW401's plug-in construction simplifies periodic checks and replacements, as the main body can be disconnected without breaking the circuit to the protected instrument. For maximum protection after a surge event, both the main unit and terminal block should be replaced together, since the terminal block can sustain hidden damage. Annual checks are recommended, with more frequent inspections after thunderstorms in areas prone to lightning. This straightforward maintenance routine enables plant engineers to sustain protection performance over years of service. When paired with Yokogawa's broader AR Series, the PW401 contributes to comprehensive online condition monitoring and machinery protection strategies, ensuring that critical assets in power generation, oil and gas, and heavy industry remain safeguarded against electrical transients.

The Yokogawa PW401 arrester provides a rugged, easy-to-maintain solution for protecting 100 V AC power supplies in industrial control systems. Its combination of robust surge handling capacity, visual diagnostic indication, and plug-in design for safe testing and replacement makes it well-suited for plants where uptime is paramount. As a key element of process control and distributed protection systems, the PW401 helps engineers protect valuable instrumentation without incurring excessive maintenance overhead. For those seeking reliable automation spare parts and long-term support, Yokogawa's AR Series offers a proven, field-ready approach to safeguarding critical assets against lightning and transient overvoltages – ensuring continuity, safety, and operational efficiency across demanding industrial environments.
