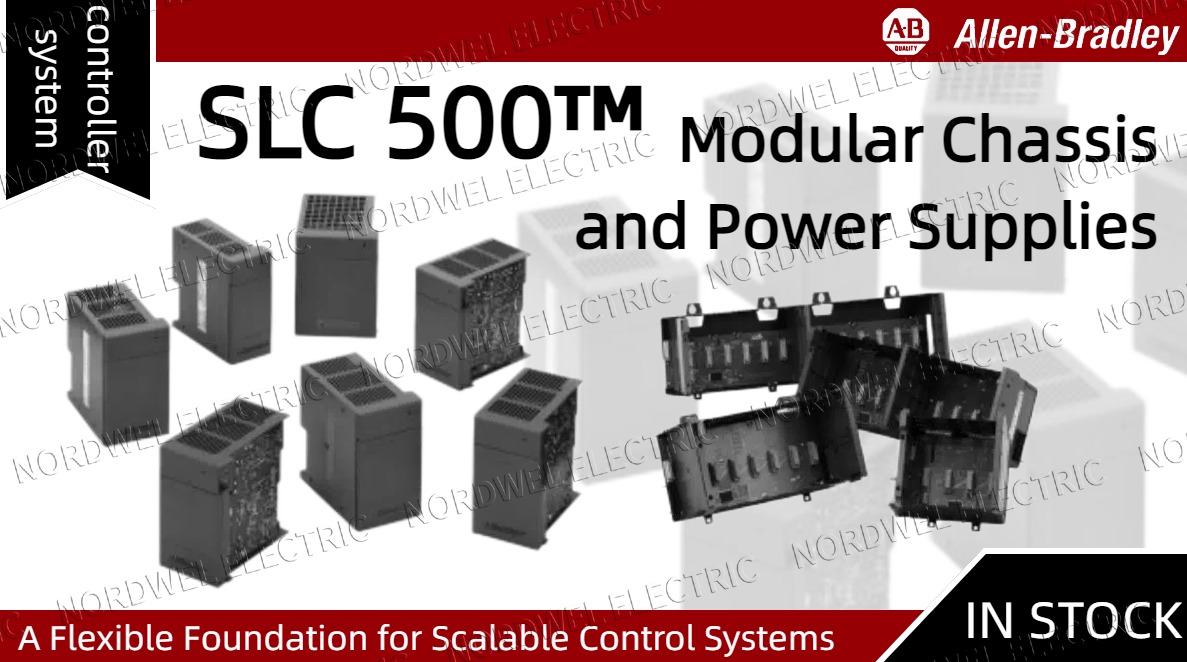

SLC 500 Modular Chassis and Power Supplies – A Flexible Foundation for Scalable Control SystemsAug 01, 2026
Four Chassis Sizes and Interconnect Cables Enable Custom System Configurations The Allen‑Bradley SLC 500 chassis family offers four sizes – 4‑, 7‑, 10‑, and 13‑slot – letting engineers match I/O needs without wasted slots. Each chassis serves as the system's backbone, housing the processor and I/O modules while distributing backplane power. Modules slide into slots without tools, simplifying installation and future expansion. Up to three chassis can be linked using ribbon cables – the 1746‑C7 (6 in.), 1746‑C9 (36 in.), or 1746‑C16 (50 in.) – allowing a single processor to address up to 30 I/O slots across multiple enclosures. Proper spacing is essential: maintain at least 15.3 cm between stacked chassis and 10.2 cm from enclosure walls for adequate convection cooling. All SLC 500 chassis are rated Class I, Div. 2 and operate from 0°C to +60°C, with storage from ‑40°C to +85°C, making them suitable for diverse industrial environments. For maintenance teams and system integrators sourcing Allen Bradley automation parts, the modular chassis design simplifies field upgrades and reduces downtime when expanding or reconfiguring PLC Systems. Seven Power Supply Options Deliver the Right Power for Every Application Each SLC 500 chassis needs its own dedicated power supply, and the 1746 series offers seven models to match different input voltages and power demands. Three AC supplies – the 1746‑P1, P3, and P4 – accept 85‑132/170‑265V AC with a jumper for 120/240V selection. Four DC supplies – the P2 (19.2‑28.8V), P5 (90‑146V), P6 (30‑60V), and P7 (10‑30V) – cover a wide range of DC sources. Current capacities vary: the P1 delivers 2A at 5V and 0.46A at 24V, while the high‑capacity P4 provides 10A at 5V and 2.88A at 24V, with a total output limit of 70W. All supplies have an LED for instant status checking. Some models (P1, P4, P5, P6) offer a 24V user power output (200mA to 1A) for external sensors. Hold‑up time – from 20 ms to 3 seconds depending on load – helps ride through brief power interruptions without nuisance shutdowns. Each supply mounts on the left side of the chassis with two screws and does not occupy an I/O slot. When planning new installations or sourcing automation spare parts for legacy systems, the wide selection ensures compatible replacements are readily available.
Proper Power Supply Selection and Heat Dissipation Planning Ensure System Reliability Selecting the correct power supply requires calculating total current draw at both 5V and 24V from all installed modules and peripherals. For P4 supplies, total power (5V × current + 24V × current + user power) must not exceed 70W. A detailed loading table provides maximum currents and wattage values for every SLC 500 processor, I/O module, specialty module, and peripheral device, enabling accurate power budgeting. Heat dissipation must also be considered: total heat is the sum of module dissipation (using either the precise "calculated watts" method or the worst‑case "total watts" method) plus power supply dissipation based on actual load. With proper spacing and enclosure temperature kept within 0°C to +60°C, most systems run reliably without active cooling. For high‑ambient or high‑heat applications, blower fans may be required. Grounding is equally critical: each chassis and supply should connect to a common ground bus to limit EMI. When switching inductive loads like motors or solenoids, an isolation transformer is strongly recommended to protect the supply from voltage surges. These engineering considerations are essential for maintaining robust Process Control and Machinery Protection in demanding industrial environments.
The Allen‑Bradley SLC 500 modular chassis and power supply family provides a versatile, scalable foundation for building PLC control systems tailored to specific needs. With four chassis sizes, three interconnect cables, and seven power supplies covering a wide range of AC/DC inputs and output capacities, this platform offers flexibility to start small and expand as needed. Careful power supply selection – guided by detailed loading tables and worksheets – ensures reliable operation and avoids premature shutdowns. Attention to spacing, heat dissipation, and grounding further enhances performance and longevity. Whether deployed in simple machine control or complex multi‑chassis automation, the SLC 500 hardware delivers the proven reliability industrial users have trusted for decades. For those seeking hard-to-find automation parts or dependable automation and control components, the SLC 500 series remains widely supported through industrial automation parts suppliers and distributors, ensuring long‑term serviceability for critical control systems.
