A four-channel differential analog-input module for voltage or current acquisition, configured in two-channel groups for compact process measurement.
Brand:
SIEMENSItem NO.:
6ES7288-3AE04-0AA0Part Number:
6ES7288-3AE04-0AA0Weight:
147 gDimensions:
45 × 100 × 81 mmCertification:
CE; IP20Description:
A four-channel differential analog-input module for voltage or current acquisition, configured in two-channel groups for compact process measurement.Siemens identifies 6ES7288-3AE04-0AA0 as the SIMATIC S7-200 SMART SM AI04 / AI 4 × Voltage or Current. A four-channel differential analog-input module for voltage or current acquisition, configured in two-channel groups for compact process measurement.
Published S7-200 SMART analog input and analog output choices.
Mixed and output-only digital expansion modules for complementary field signals.
Additional digital input and relay-output options published on Nordwel.
Published standard S7-200 SMART CPUs for systems requiring expansion modules.
Selected ABB control, I/O and measurement products already published on Nordwel.
Selected Honeywell controller, IOTA and Safety Manager products published on Nordwel.
Selected GE turbine-control, communication and I/O products published on Nordwel.
Square D belongs to Schneider Electric; these linked Schneider products are already published on Nordwel.
Selected Bently Nevada 330904 NSv proximity probes with verified Nordwel contact details.
Selected Vibro-Meter proximity and vibration sensor products published on Nordwel.
Selected Bently Nevada 330904 and 330905 NSv proximity probes with verified Nordwel contact details.
Selected Bently Nevada 330905, 330910 and 3500 system products with verified Nordwel contact details.
Use the exact Siemens order number and verify the system constraints before procurement.
Place voltage and current transmitters so each two-channel group can share the correct mode.
Choose the narrowest official voltage range or the current range that covers the transmitter output.
Use twisted, shielded analog cable and observe the Siemens 100 m maximum.
Keep signal plus common-mode voltage between −12 V and +12 V.
Selected specialist-brand products requested for regional projects and available on Nordwel.
Auxiliary relay option for protection and control applications.
Recent Middle East inquirySIMATIC S7-200 SMART RS485 communication board.
Recent Middle East inquiryRemote I/O gateway for demanding process-system environments.
Specialist brandReplacement inverter driver board for installed industrial systems.
Specialist brandAmplifier transducer for load-cell signal conditioning.
Specialist brandIndustrial power-supply model for legacy equipment support.
Specialist brandAnswers below use Siemens official product documentation for this exact order number.

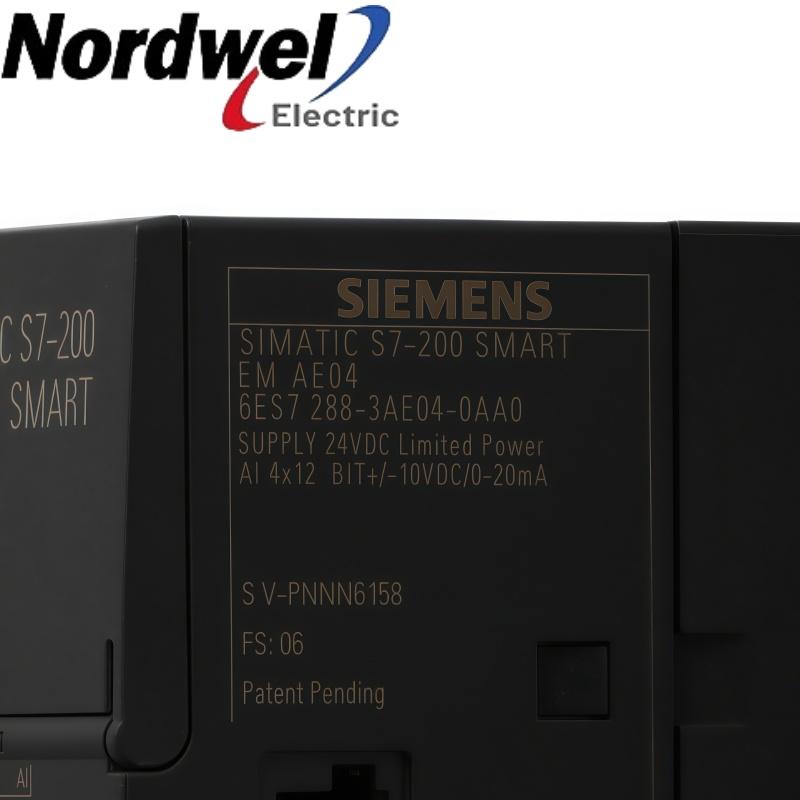

It is the SIMATIC S7-200 SMART SM AI04 module with four differential analog inputs.
Siemens documents ±10 V, ±5 V, ±2.5 V and 0–20 mA measurement ranges.
Mode is selected in groups of two inputs, so plan channel pairs around the required signal type.
The product designation states 11 bits plus sign for voltage using a 12-bit ADC; current mode is 11 bit.
No. Siemens lists no field-to-logic galvanic isolation for this module.
The maximum withstand values are ±35 V and ±40 mA; they are not normal operating ranges.
Yes. The Siemens system manual lists overflow/underflow and 24 V DC low-voltage diagnostics.
The module consumes 1.5 W and measures 45 × 100 × 81 mm; its listed weight is 147 g.
