Brand:
Bently NevadaPart Number:
330909-00-25-10-02-00Weight:
0.1kgDimensions:
1.5x1.3x121cmPlace of Origin:
USACertification:
CO,CQDescription:

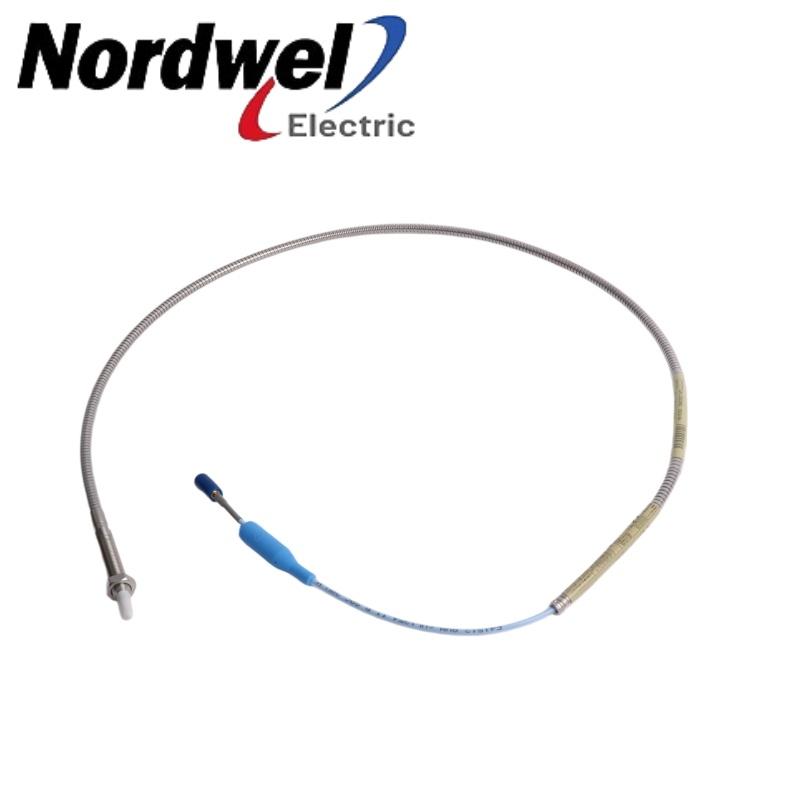

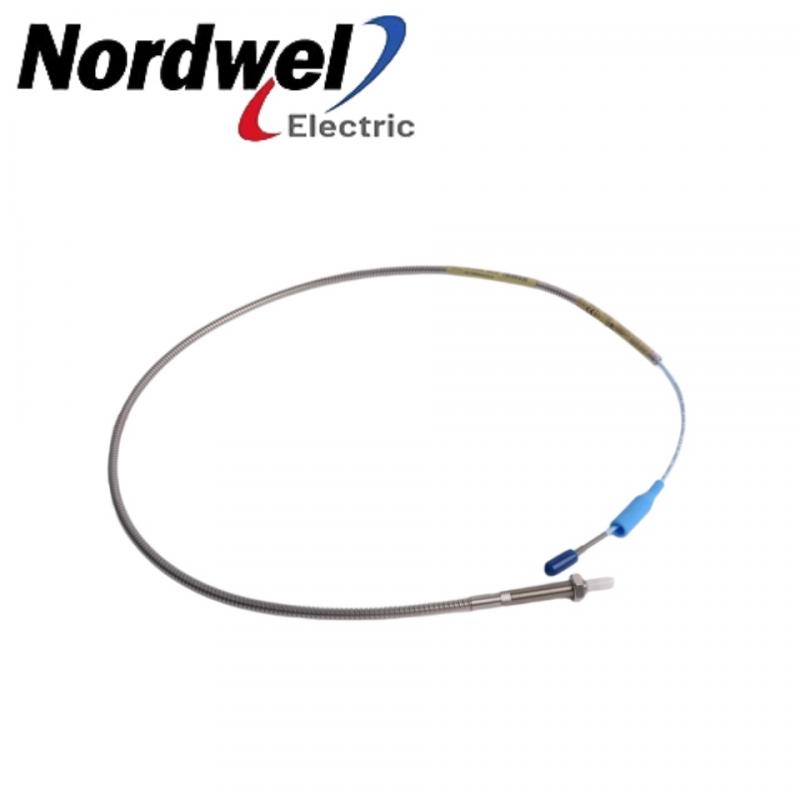

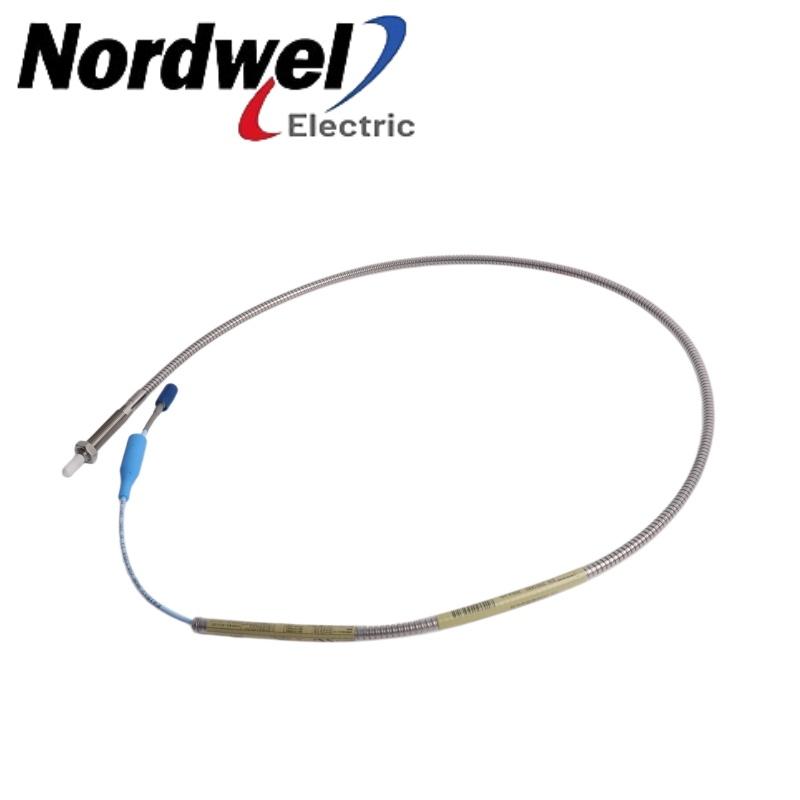

Bently Nevada 330909-00-25-10-02-00 3300 XL NSv Proximity Probe
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
Bently Nevada |
|
Part number |
330909-00-25-10-02-00 |
|
Description |
Bently Nevada 330909-00-25-10-02-00 3300 XL NSv Proximity Probe |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed 330909-00-25-10-02-00 in stock!!!
Part Number Breakdown
330909 — NSv Probe
The 330909 base number identifies:1/4-28 UNF thread Without armor
00 — Unthreaded Length
The ordering code uses 0.1-inch increments.
Therefore:00 = 0.0 in
25 — Overall Case Length
The case-length code also uses 0.1-inch increments.
Therefore:25 = 2.5 in
10 — Total Length
Option 10 specifies:1.0 m (3.3 ft)
02 — Connector and Cable
Option 02 specifies:Miniature coaxial ClickLoc connector with standard cable
00 — Agency Approval
Option 00 specifies:Agency approval not required
Measurement Profile
Why NSv Fits Tight Installations
The NSv system uses a smaller probe tip and smaller probe case than the standard 3300 XL 8 mm system.
Bently Nevada specifically identifies it for installations where mounting space is restricted.
The smaller probe configuration is useful where counterbores, side views, and other mechanical constraints limit the space available for a conventional proximity probe.
The system is particularly suitable for radial vibration measurements on shafts smaller than:51 mm (2 in) and axial position measurements on flat targets smaller than:15 mm (0.6 in).
Electrical Performance
System Output Resistance: 50 Ω
Frequency Response: 0 to 10 kHz, +0/-3 dB
Maximum Field Wiring: 305 m (1,000 ft)
Probe DC Resistance at 1.0 m: 4.2 ±0.5 Ω
Probe Cable: 75 Ω triaxial cable
Cable Insulation: FEP
The complete system produces an output voltage proportional to the distance between the probe tip and the observed conductive target.
|
