Brand:
OthersPart Number:
RM1-XA315Weight:
2.15kgDimensions:
10x18.8x26.1cmPlace of Origin:
FRANCECertification:
CO,CQDescription:

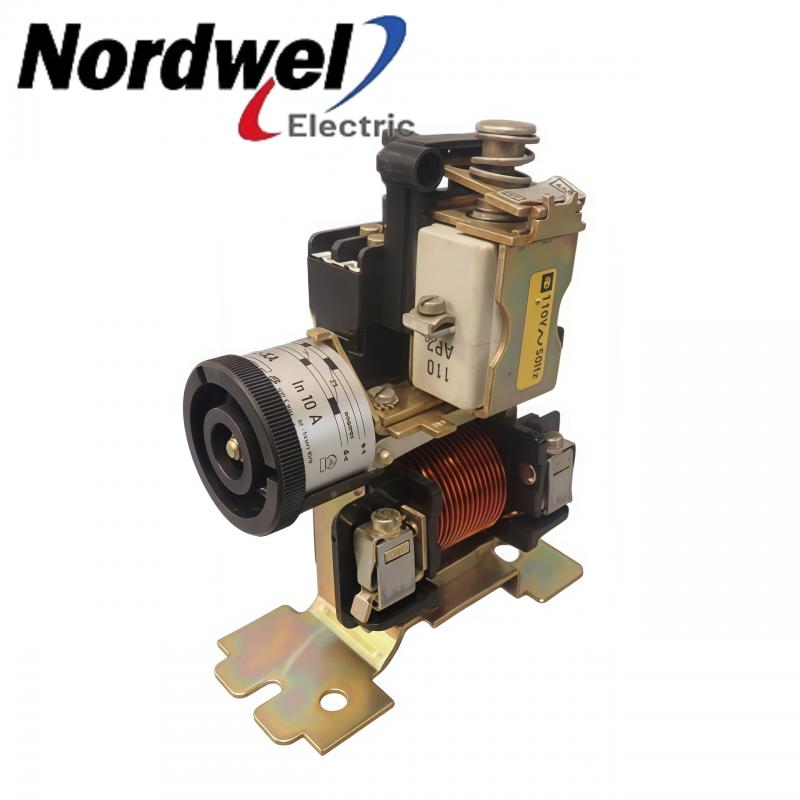

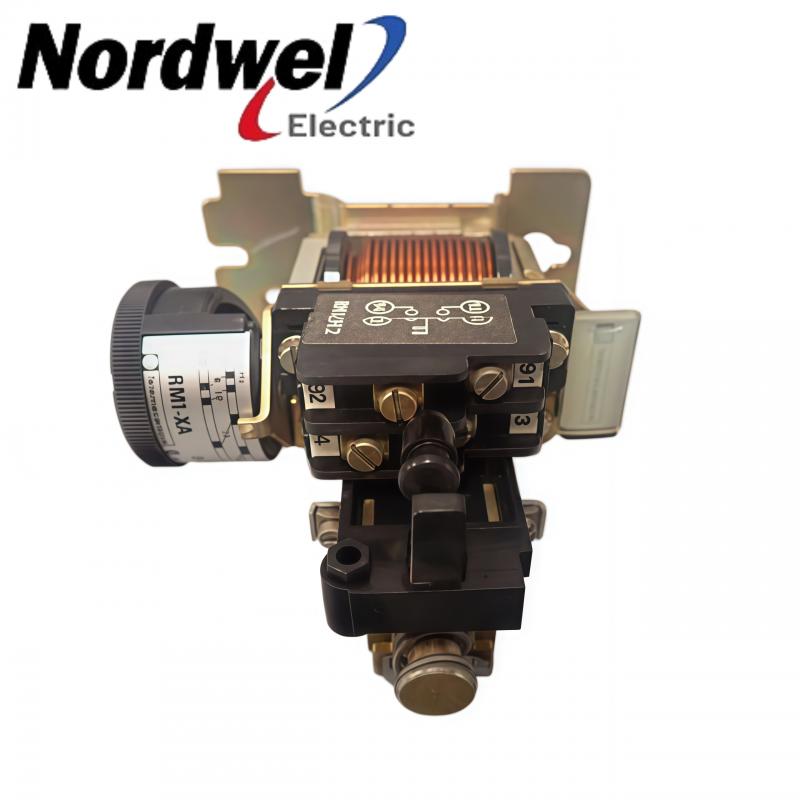

Schneider Electric RM1-XA315 Thermischer Schalter
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
Schneider Electric |
|
Part number |
RM1-XA315 |
|
Description |
Schneider Electric RM1-XA315 Thermischer Schalter 10A |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed RM1-XA315 in stock!!!
Core Function
The RM1XA315 is designed specifically for:
Electrical overcurrent protection
rather than ordinary switching or motor-control operation.
Its magnetic trip mechanism operates within an adjustable/current-defined range of: 250–800 A.
The product designation in the manufacturer datasheet is:
“single pole over current relay 315 A - release 250...800 A - 1 OC.”
This means the strongest product-page entity relationship is:
RM1XA315 → TeSys RM1 → Magnetic Over Current Relay → Circuit Protection
rather than simply calling it an industrial relay.
Auxiliary Contact
The RM1XA315 provides:
1 C/O auxiliary contact
meaning: 1 changeover contact.
This auxiliary contact provides an interface for associated control or indication circuitry when used in an appropriate electrical protection installation.
Product Overview
The Schneider Electric RM1XA315 is a single-pole magnetic overcurrent relay from the TeSys RM1 range. It is designed as a protection component for electrical applications requiring overcurrent detection. The relay has a 315 A continuous output current, a 250–800 A magnetic tripping current range, and rated operational current from 146 to 230 A for both AC and DC applications. Its power circuit supports up to 600 V AC or 600 V DC, while the device provides one changeover auxiliary contact for associated control functions.
AC Breaking and Making Capacity
The manufacturer gives different AC control-circuit capacities depending on voltage:
48 V AC: 4,000 VA
110 V AC: 12,000 VA
220 V AC: 17,000 VA
380 V AC: 22,000 VA.
|
