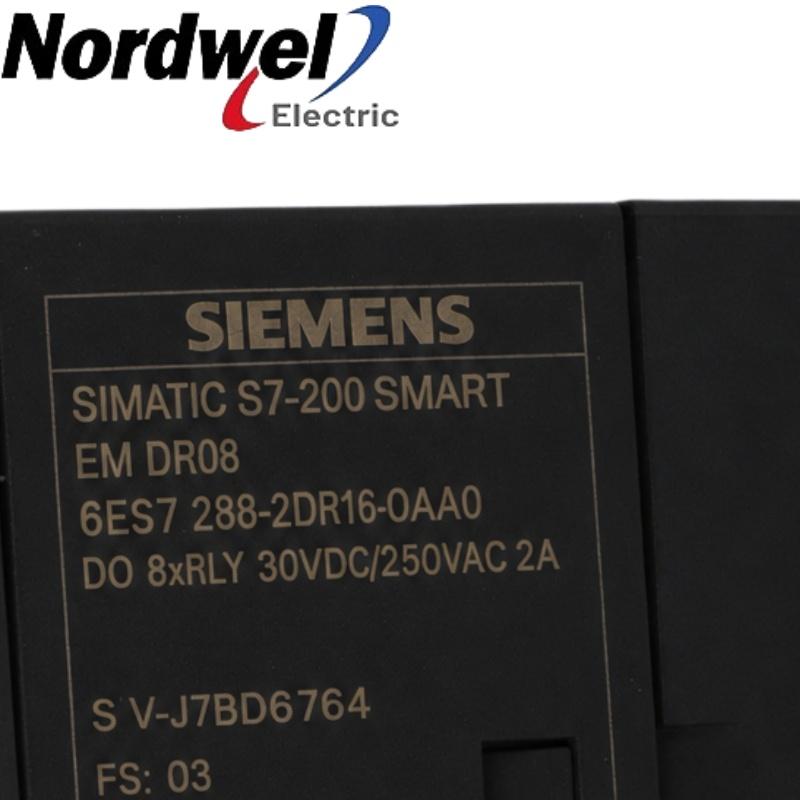

A mixed digital expansion module combining eight 24 V DC inputs and eight 2 A relay outputs in one 45 mm S7-200 SMART module.
Brand:
SIEMENSItem NO.:
6ES7288-2DR16-0AA0Part Number:
6ES7288-2DR16-0AA0Weight:
201.9 gDimensions:
45 × 100 × 81 mmCertification:
CE; IP20Description:
A mixed digital expansion module combining eight 24 V DC inputs and eight 2 A relay outputs in one 45 mm S7-200 SMART module.Siemens identifies 6ES7288-2DR16-0AA0 as the SIMATIC S7-200 SMART EM DR16 / 8 DI + 8 Relay DQ. A mixed digital expansion module combining eight 24 V DC inputs and eight 2 A relay outputs in one 45 mm S7-200 SMART module.
Published digital and analog input modules for adding field signals.
Sourcing MOSFET options for fast 24 V DC output expansion.
Dry-contact relay options for documented AC and DC field loads.
Published standard S7-200 SMART CPUs that support expansion-module architectures.
Selected ABB control, I/O and measurement products already published on Nordwel.
Selected Honeywell controller, IOTA and Safety Manager products published on Nordwel.
Selected GE turbine-control, communication and I/O products published on Nordwel.
Square D belongs to Schneider Electric; these linked Schneider products are already published on Nordwel.
Selected Bently Nevada 330904 NSv proximity probes with verified Nordwel contact details.
Selected Vibro-Meter proximity and vibration sensor products published on Nordwel.
Selected Bently Nevada 330904 and 330905 NSv proximity probes with verified Nordwel contact details.
Selected Bently Nevada 330905, 330910 and 3500 system products with verified Nordwel contact details.
Use the exact Siemens order number and verify the system constraints before procurement.
Reserve eight consecutive input bits and eight consecutive output bits.
Plan the two DI groups and two relay DQ groups shown in Siemens wiring documentation.
Add 11 mA at 24 V DC for each relay coil that may be energized simultaneously.
Fuse loads and suppress inductive devices because the relay contacts are not overload protected.
Selected specialist-brand products requested for regional projects and available on Nordwel.
Auxiliary relay option for protection and control applications.
Recent Middle East inquirySIMATIC S7-200 SMART RS485 communication board.
Recent Middle East inquiryRemote I/O gateway for demanding process-system environments.
Specialist brandReplacement inverter driver board for installed industrial systems.
Specialist brandAmplifier transducer for load-cell signal conditioning.
Specialist brandIndustrial power-supply model for legacy equipment support.
Specialist brandAnswers below use Siemens official product documentation for this exact order number.
It provides eight 24 V DC digital inputs and eight relay digital outputs.
No. Half of its sixteen channels are inputs. For output-only selection, do not confuse DR16 with a sixteen-output relay module.
Each dry-contact output is rated 2 A, with an 8 A maximum for each common group.
Inputs are 24 V DC sink/source with IEC Type 1 sink characteristics and 4 mA nominal current.
Siemens lists 11 mA at 24 V DC per relay coil used, in addition to the input-channel and SM-bus load.
The eight inputs form two isolation groups and the eight relay outputs form two output groups.
Power consumption is 5.5 W and listed weight is 201.9 g.
An expandable SIMATIC S7-200 SMART CPU with sufficient SM-bus capacity is required. Compact CR and CRs CPUs are not compatible with EM expansion.
Software, licensing, controller, interface, shield and power-supply references.
Internal cable references for 40-channel input and output connections to field termination assemblies.
I/O Companion Slot to FTA · 2.5 m
I/O Companion Slot to FTA · 4.5 m
I/O Companion Slot to FTA · 6.5 m
I/O Companion Slot to FTA · 8.5 m
I/O Companion Slot to FTA · 10.5 m
I/O Companion Slot to FTA · 12.5 m
I/O Companion Slot to FTA · 4.5 m
I/O Companion Slot to FTA · 6.5 m
I/O Companion Slot to FTA · 8.5 m
Use the verified electrical and system limits—not generic family assumptions—to decide suitability.
