Brand:
Bently NevadaPart Number:
330103-08-13-05-02-00Weight:
0.08kgDimensions:
111.3x1.6x1.6cmPlace of Origin:
USACertification:
CO,CQDescription:

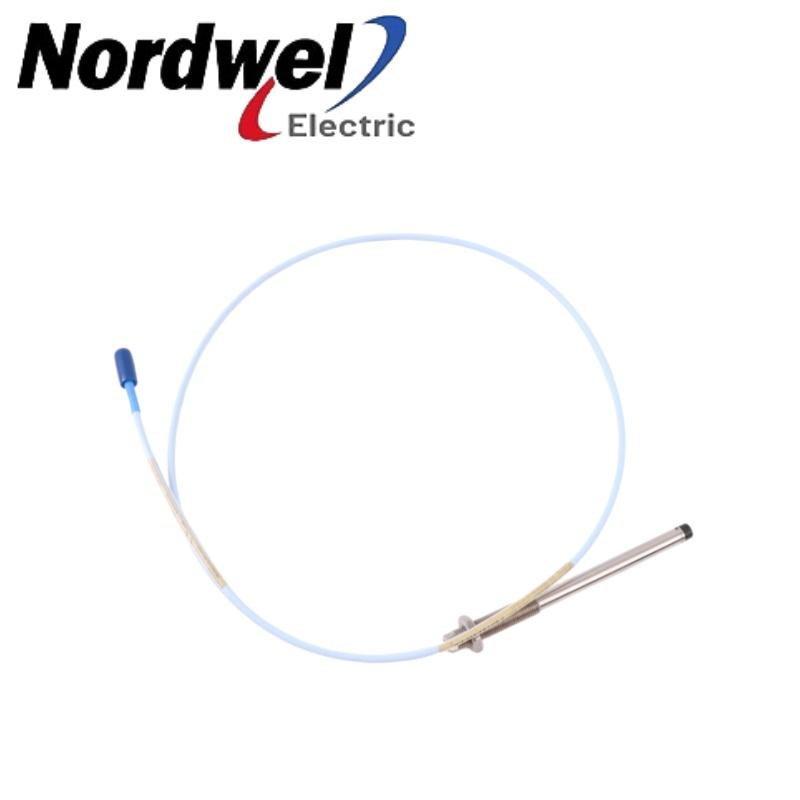

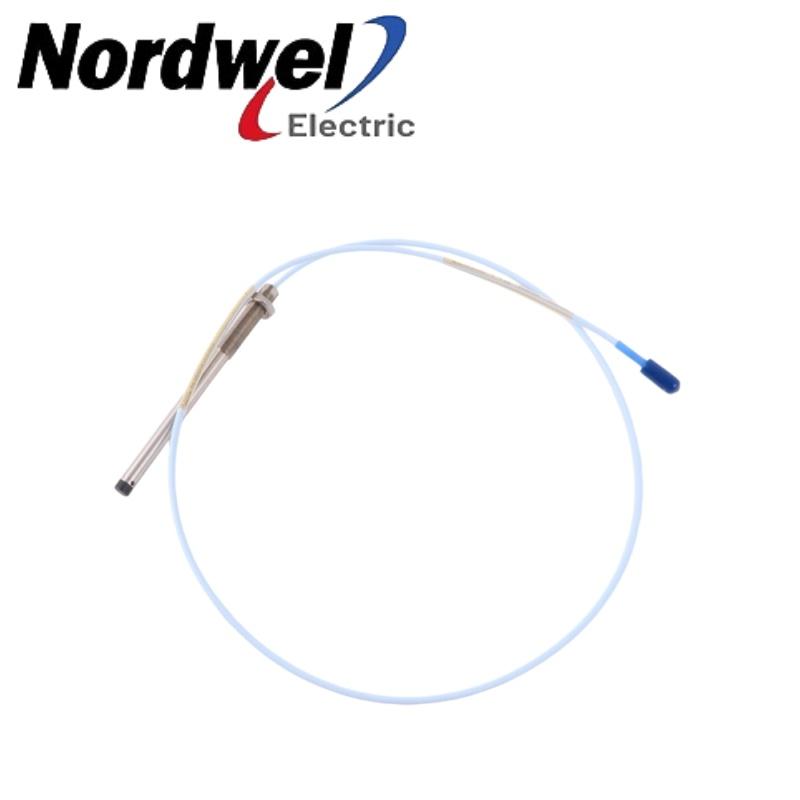

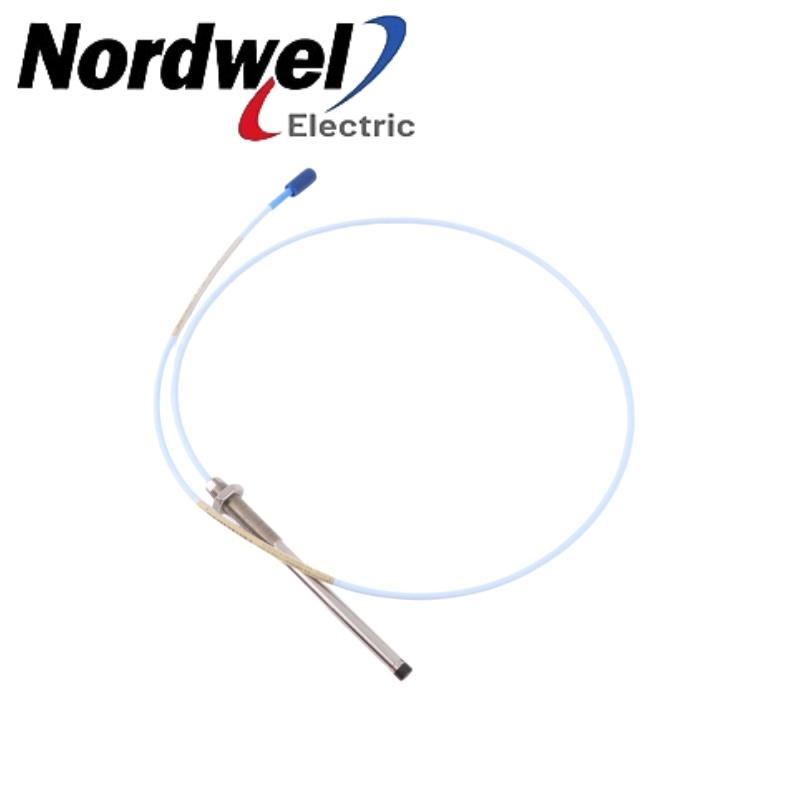

Bently Nevada 330103-08-13-05-02-00 3300 XL 8 mm Proximity Transducer
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
Bently Nevada |
|
Part number |
330103-08-13-05-02-00 |
|
Description |
Bently Nevada 330103-08-13-05-02-00 3300 XL 8 mm Proximity Transducer |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed 330103-08-13-05-02-00 in stock!!!
Ordering Code Explained
08 — Unthreaded Length = 80 mm
13 — Overall Case Length = 130 mm
05 — Total Probe Length = 0.5 meter (1.6 feet)
02 — Connector and Cable = Miniature coaxial ClickLoc connector with standard cable
00 — Agency Approval = Not required
Electrical Characteristics
Probe Construction
The probe tip material is:Polyphenylene sulfide (PPS)
The probe case material is:AISI 303 or 304 stainless steel
The standard probe cable is:75 Ω triaxial FEP-insulated cable
The probe cable-to-case connection has a maximum rated tensile strength of:330 N (75 lbf)
The minimum cable bend radius is:25.4 mm (1.0 in)
The ClickLoc connector uses gold-plated brass or gold-plated beryllium copper.
Use Scenarios
Radial Vibration Measurement
The 3300 XL 8 mm system is designed for non-contacting vibration measurements on fluid-film bearing machines.
The probe monitors changes in distance between its tip and the conductive shaft surface, allowing dynamic shaft motion to be measured.
Shaft Position Measurement
Static displacement can also be measured, making the system suitable for shaft-position monitoring.
Keyphasor Reference
Bently Nevada lists Keyphasor reference measurement as a primary application of the 3300 XL 8 mm system.
Speed Measurement
The system can also be used for speed measurement applications. Bently Nevada advises consulting its dedicated application guidance when using the transducer system for tachometer or overspeed measurements.
Fluid-Film Bearing Machinery
The primary machinery application specified by Bently Nevada is equipment using fluid-film bearings.
The probe can therefore form part of machinery condition monitoring and protection systems where shaft vibration and position need to be measured without physical contact.
|
