Brand:
Bently NevadaPart Number:
330101-00-23-15-02-05Weight:
0.1kgDimensions:
1.6x1.3x121cmPlace of Origin:
USACertification:
CO,CQDescription:

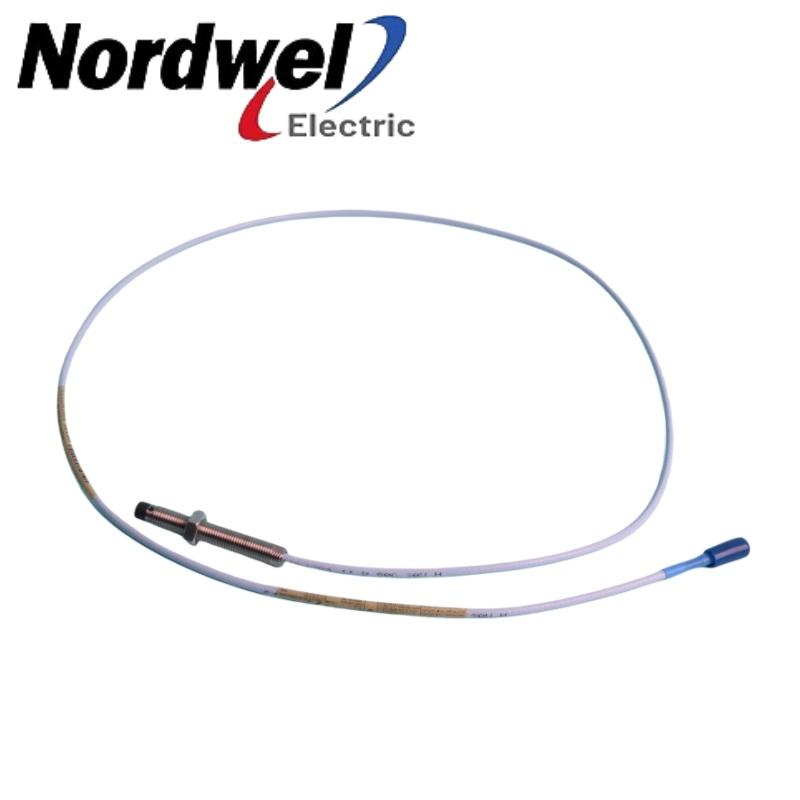

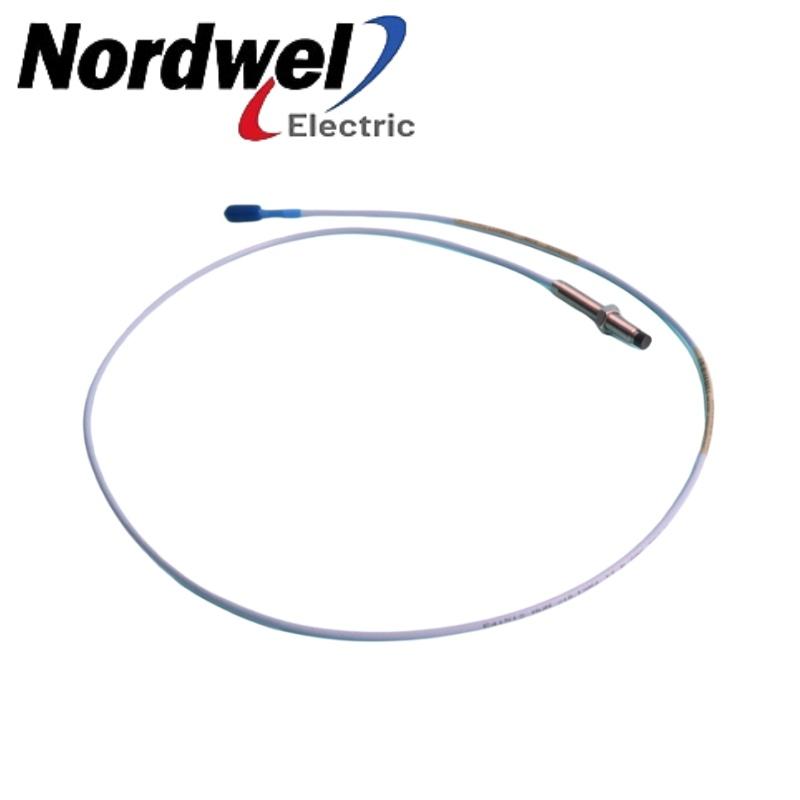

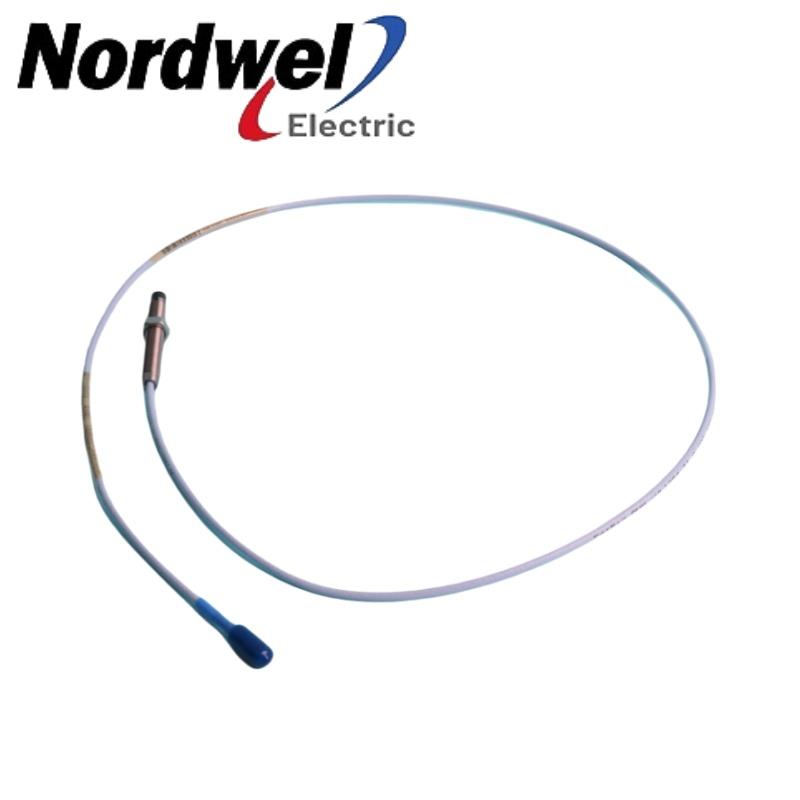

Bently Nevada 330101-00-23-15-02-05 3300 XL 8 mm Proximity Probes
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
Bently Nevada |
|
Part number |
330101-00-23-15-02-05 |
|
Description |
Bently Nevada 330101-00-23-15-02-05 3300 XL 8 mm Proximity Probes |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed 330101-00-23-15-02-05 in stock!!!
Part Number Breakdown
330101 identifies a 3300 XL 8 mm Probe with 3/8-24 UNF thread and without armor.
00 specifies 0.0 in unthreaded length. The official ordering system defines this dimension in 0.1-inch increments.
23 specifies 2.3 in overall case length.
15 specifies a 1.5 m (4.9 ft) total probe length.
02 specifies a miniature coaxial ClickLoc connector with standard cable, without the separately specified connector protector.
05 specifies CSA, ATEX, IECEx Approvals.
Measurement Performance
Construction
The probe tip uses:Polyphenylene sulfide (PPS) while the probe case uses:AISI 303 or 304 stainless steel.
The standard cable is:75 Ω triaxial FEP-insulated cable.
The probe case-to-lead maximum rated tensile strength is:330 N (75 lbf) and the minimum cable bend radius is: 25.4 mm (1.0 in).
ClickLoc connector components use gold-plated brass or gold-plated beryllium copper. The maximum connector torque is:0.565 N·m (5 in·lbf).
How It Works
The complete measurement chain consists of:
3300 XL 8 mm Probe → 3300 XL Extension Cable → 3300 XL Proximitor Sensor → Monitoring System
The system generates an output voltage directly proportional to the distance between the probe tip and the observed conductive surface.
This allows measurement of both: Static values — position and Dynamic values — vibration.
|
