Brand:
SIEMENSPart Number:
6SL3210-1PE31-8AL0Weight:
57kgDimensions:
30.5x70.8x35.7cmPlace of Origin:
GERMANYCertification:
CO,CQDescription:

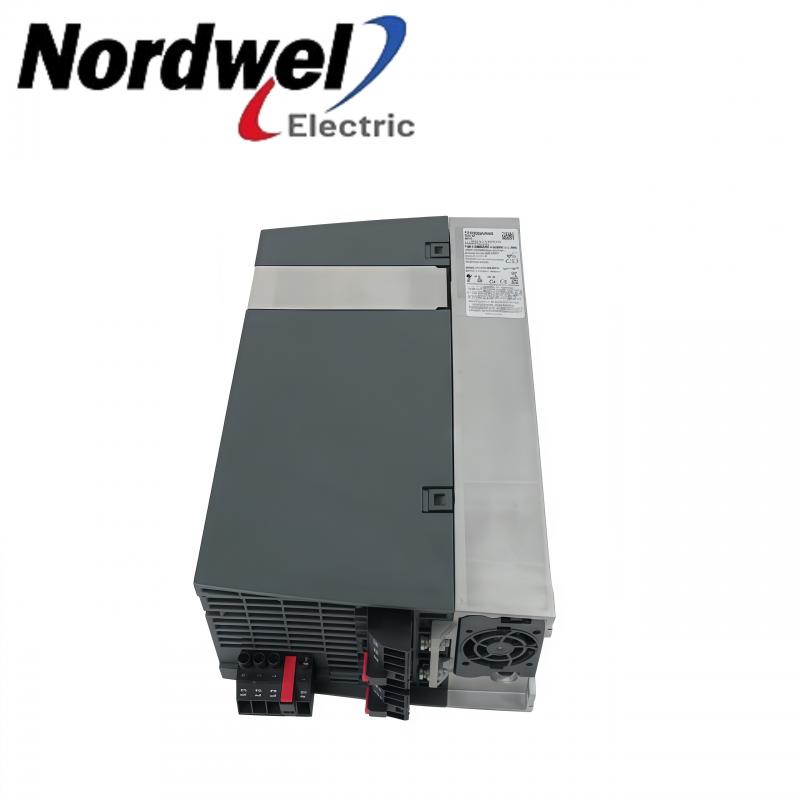

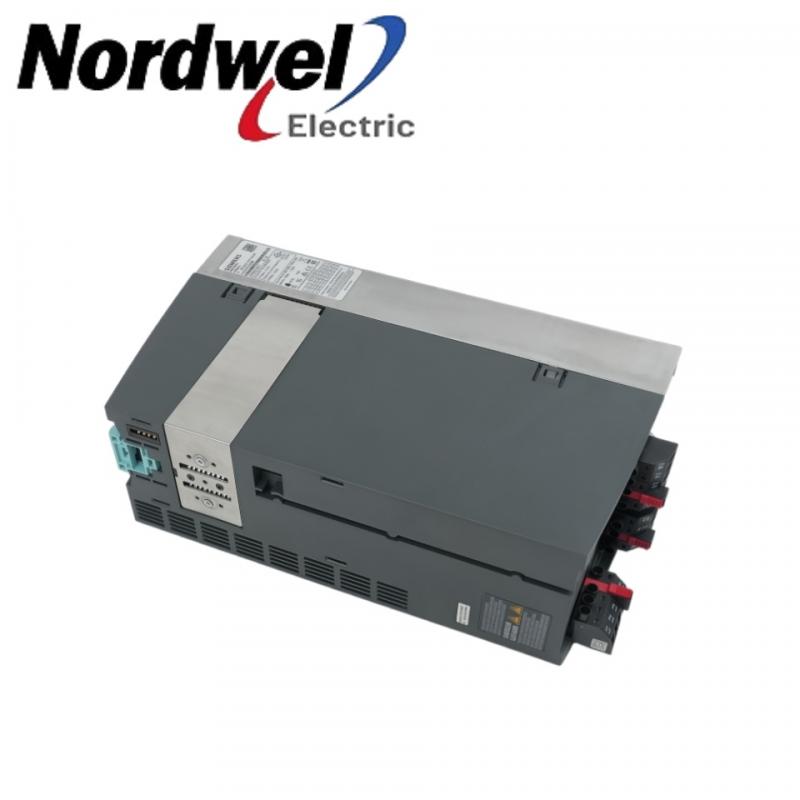

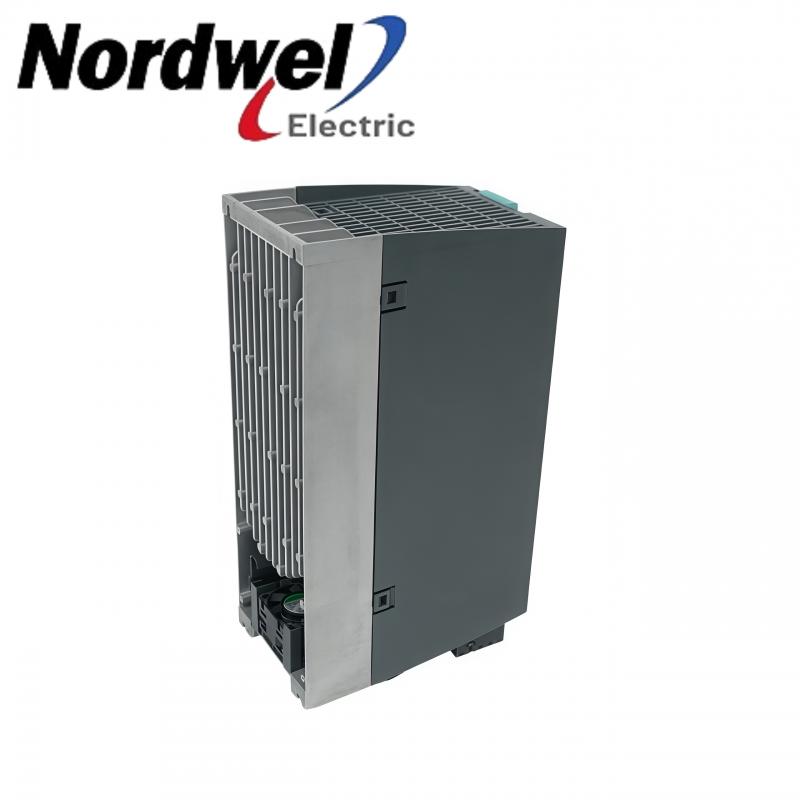

Siemens 6SL3210-1PE31-8AL0 Power Module
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
Siemens |
|
Part number |
6SL3210-1PE31-8AL0 |
|
Description |
Siemens 6SL3210-1PE31-8AL0 Power Module |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed 6SL3210-1PE31-8AL0 in stock!!!
Connection Specifications
Line side
Motor end
DC link (for braking resistor)
Max. motor cable length
Technical Specifications
|
Input Voltage |
3AC 380–480 V ±10% |
|
Input Frequency |
47–63 Hz |
|
Filter |
Without filter |
|
Braking Function |
Built-in braking chopper |
|
High Overload Power |
75 kW |
|
High Overload Capacity |
200% for 3 s, 150% for 57 s, 100% for 240 s |
|
High Overload Temperature |
-20 to +50 °C |
|
Low Overload Power |
90 kW |
|
Low Overload Capacity |
150% for 3 s, 110% for 57 s, 100% for 240 s |
|
Low Overload Temperature |
-20 to +40 °C |
|
Protection Class |
IP20 |
|
Cooling Method |
Internal air cooling |
|
Cooling Air Requirement |
0.153 m³/s |
|
Installation Altitude |
Up to 1000 m |
|
Rated Current (HO) |
154 A |
|
Rated Current (LO) |
172 A |
|
Relative Humidity |
Max. 95% RH |
Selection Guide
Select this model for 3 AC 380–480 V power systems.
Choose it when 75 kW High Overload (HO) performance is required.
Use 90 kW Low Overload (LO) operation for constant-torque applications.
Verify the required output current: 154 A (HO) or 172 A (LO).
Select this unit if a built-in braking chopper is needed.
Choose the PM240-2 variant when no integrated line filter is required.
Confirm compatibility with a SINAMICS G120 Control Unit before ordering.
Ensure the Control Unit supports firmware V4.7 HF8 or later as specified.
Select FSF frame size for matching cabinet layouts.
Use the module in environments requiring IP20 protection.
Compliance and Certifications
The Siemens SINAMICS G120 PM240-2 Power Module 6SL3210-1PE31-8UL0 complies with RoHS substance restrictions since 01.01.2017 and supports WEEE take-back obligations. The product is classified under eClass 12/14/9.1 with code 27-02-31-01, ETIM 7/8/9 with code EC001857, IDEA 4 with code 4139, and UNSPSC 15 with code 39-12-10-07. The product also includes REACH Article 33 duty-to-inform requirements.
|
