Brand:
OthersPart Number:
LD106Weight:
0.1kgDimensions:
27x20.5x27cmPlace of Origin:
FranceCertification:
CO,CQDescription:

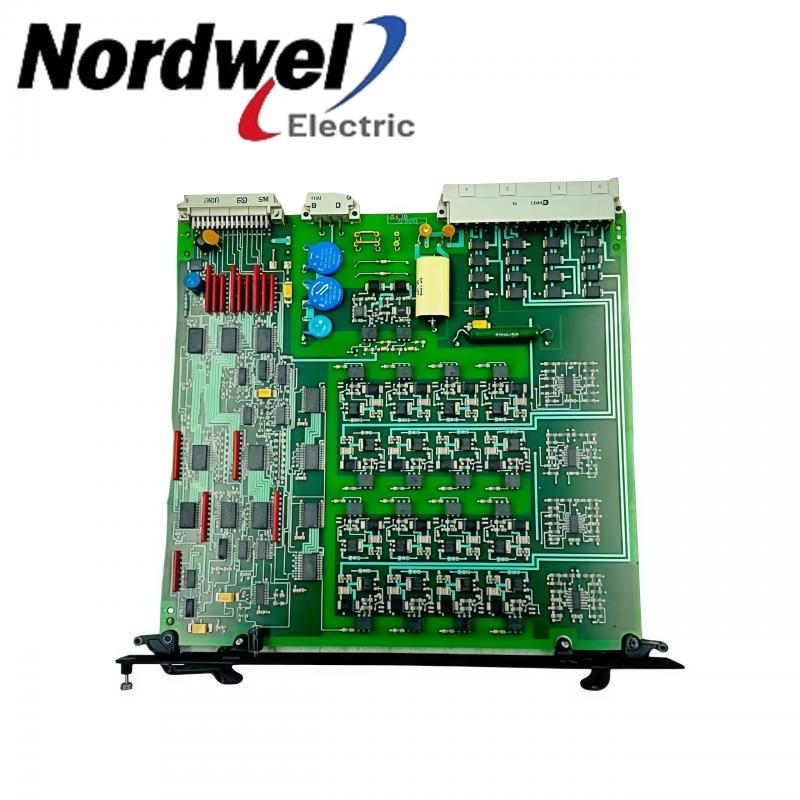

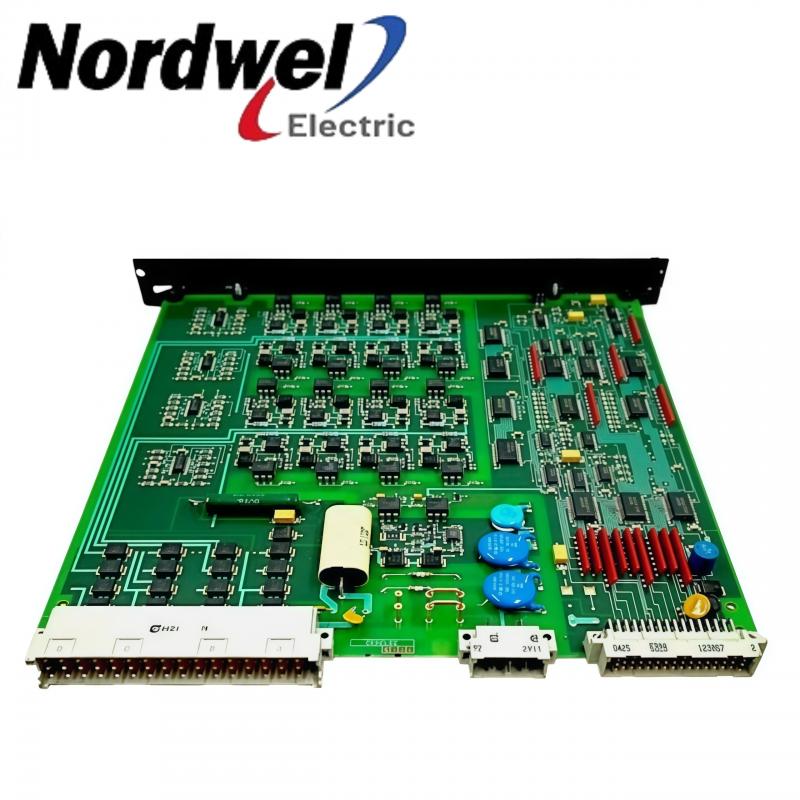

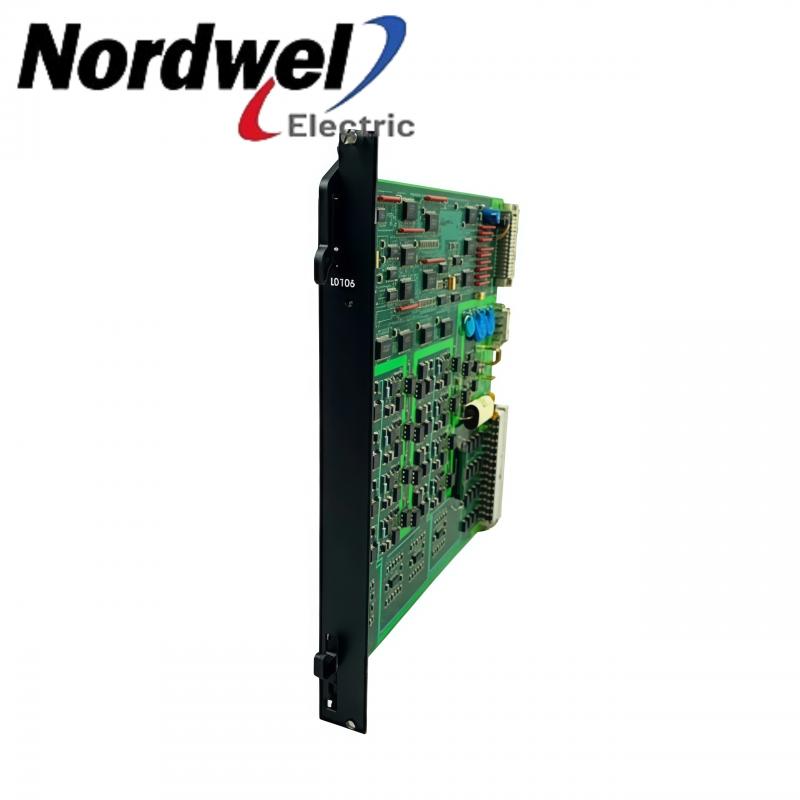

Alstom LD106 Static Digital Output
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
Alstom |
|
Part number |
LD106 |
|
Description |
Alstom LD106 Static Digital Output |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed LD106 in stock!!!
ALSPA P320 System Context
The historical ALSTOM Power ALSPA P320 platform was designed as a distributed power-plant control system.
The original system documentation identifies applications including:
Hydroelectric plants
Thermal power plants
Gas turbine plants
Combined-cycle plants
Diesel plants
Coal- and oil-fired plants
Nuclear plants
EHV / HV / MV substations and industrial processes requiring high availability.
Within this architecture, dedicated interface modules handle digital, analog, RTD, thermocouple and other process signals.
Product Overview
The Alstom LD106 is an I/O module designation found within the ALSPA/CE3000 control-system ecosystem. Historical ALSTOM Power P320 system documentation identifies an LD106 configuration as an 8-channel low-level/thermocouple input module, accepting thermocouple types J, K, T, R, S, E, B and N over a documented low-level input range of -10 mV to +100 mV. However, later GE ControlST documentation for the ALSPA DCS Retrofit identifies LD106 as a 16 static digital input board.
Replacement Check
For this product, checking only: LD106 is not sufficient.
Before supplying a replacement, check:
Complete Alstom part number
Nameplate
ALSPA system generation
P320 / CE3000 application
Input type
Channel count
Associated controller/gateway
Existing wiring
The most important verification is whether the installed module is:
8-channel low-level / thermocouple LD106 or: 16-channel static digital-input LD106.
This should be resolved from the physical module label and original project documentation.
Industrial Applications
For the historical 8-channel low-level LD106 configuration, the appropriate use case is process temperature and low-level voltage acquisition. Thermocouples installed on industrial equipment generate low-level electrical signals that can be acquired through the module for monitoring and control.
Within the broader ALSPA P320 architecture, this type of measurement can be relevant to power-generation process monitoring, turbine auxiliary systems, boilers, thermal processes and other plant equipment requiring temperature acquisition.
For the 16-channel static digital-input LD106 documented by GE, the application is different: it handles discrete/static field states in an ALSPA DCS Retrofit configuration through the CE3000 Gateway.
|
