Brand:
OthersPart Number:
TQ402 111-402-000-012Weight:
0.25kgDimensions:
10.5x5.3x5.2cmPlace of Origin:
SwitzerlandCertification:
CO,CQDescription:

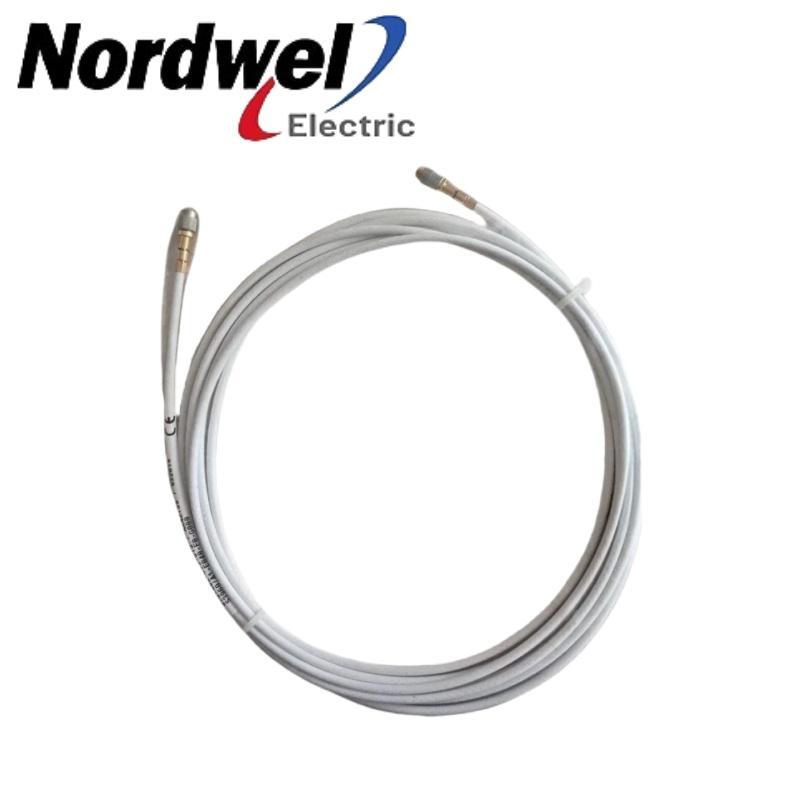

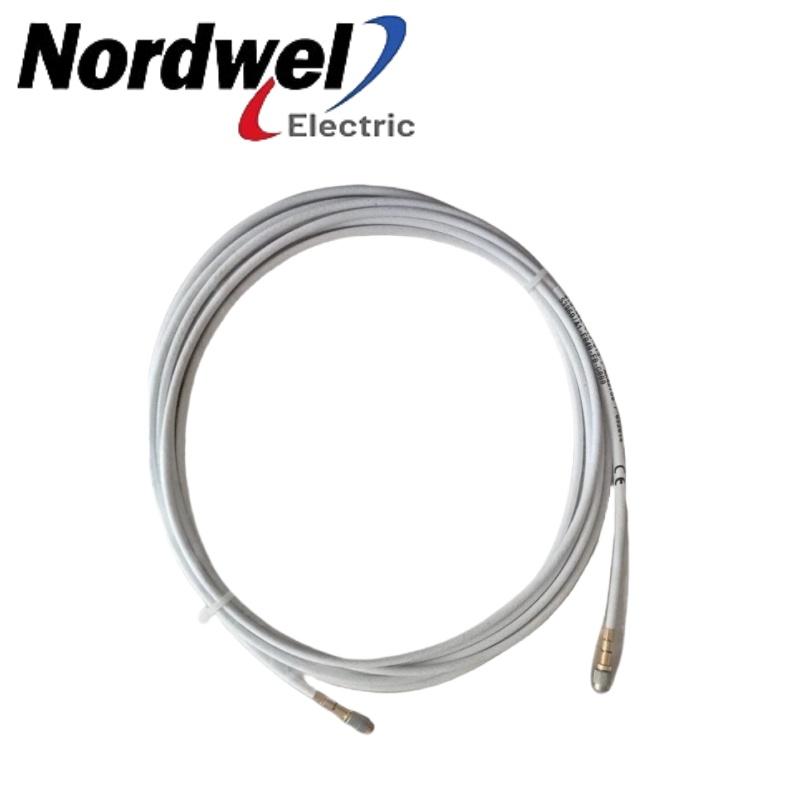

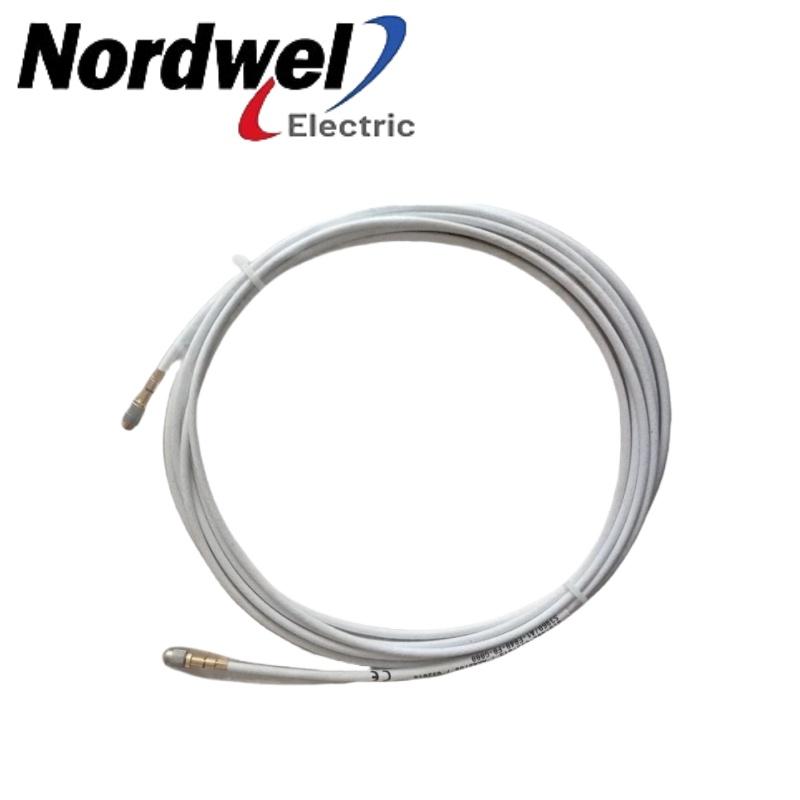

Vibro-Meter TQ402 111-402-000-012 Non Contact Proximity Transducer
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
Vibro-Meter |
|
Part number |
TQ402 111-402-000-012 |
|
Description |
Vibro-Meter TQ402 111-402-000-012 Non Contact Proximity Transducer |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed TQ402 111-402-000-012 in stock!!!
Product Description
The transducer body is available with metric or imperial thread. The TQ412 version is intended for reverse-mount applications. Both the TQ402 and TQ412 have an integral coaxial cable, terminated with a self-locking miniature coaxial connector. Various cable lengths (integral and extension) can be ordered. The IQS900 signal conditioner contains a highfrequency modulator/demodulator that supplies a driving signal to the transducer. This generates the necessary electromagnetic field used to measure the gap.
Key Features and Benefits
Non-contact measurement
Enables measurement without physical contact with rotating components.
Ensures no mechanical wear or interference during machine operation.
Based on the eddy-current principle
Detects shaft displacement and vibration by measuring changes in the electromagnetic field between the probe tip and the metallic target.
Suitable for applications such as:
Relative shaft vibration monitoring
Axial position measurement
Rotating machinery protection and condition monitoring systems
Calibrated measurement system with IQS900 signal conditioner
The TQ402 sensor and IQS900 signal conditioner form a calibrated proximity measurement system.
System components are interchangeable when correctly configured.
Provides voltage or current output proportional to the distance between the transducer tip and the target.
Physical characteristics
Transducer Construction
Wire coil: Ø8 mm
Tip material: Torlon® (polyamide-imide)
Housing: AISI 316L stainless steel body
Encapsulation: High-temperature epoxy glue
Integral and Extension Cables
Cable type: FEP-covered 70 Ω coaxial cable
Cable diameter: Ø3.6 mm
Connectors
Type: Self-locking miniature coaxial connector
Installation note: Hand-tighten the connector until it is fully locked.
Optional Protection
Flexible Stainless Steel Hose (Protection Tube)
Provides additional mechanical protection.
Not leak-tight.
FEP Sheath (Fluorinated Ethylene Propylene)
Resistant to almost all chemicals.
Provides low permeability to liquids, gases, and moisture.
Flexible, low friction, and mechanically durable.
Application
Shaft relative vibration and gap/position measurement chains for machinery protection and/or condition monitoring
Ideal for use with VM600Mk2/VM600 and VibroSmart® machinery monitoring systems
API 670 applications
|
