Brand:
Bently NevadaPart Number:
330881-16-00-200-06-02Weight:
1.44kgDimensions:
40x11x11cmPlace of Origin:
USACertification:
CO,CQDescription:

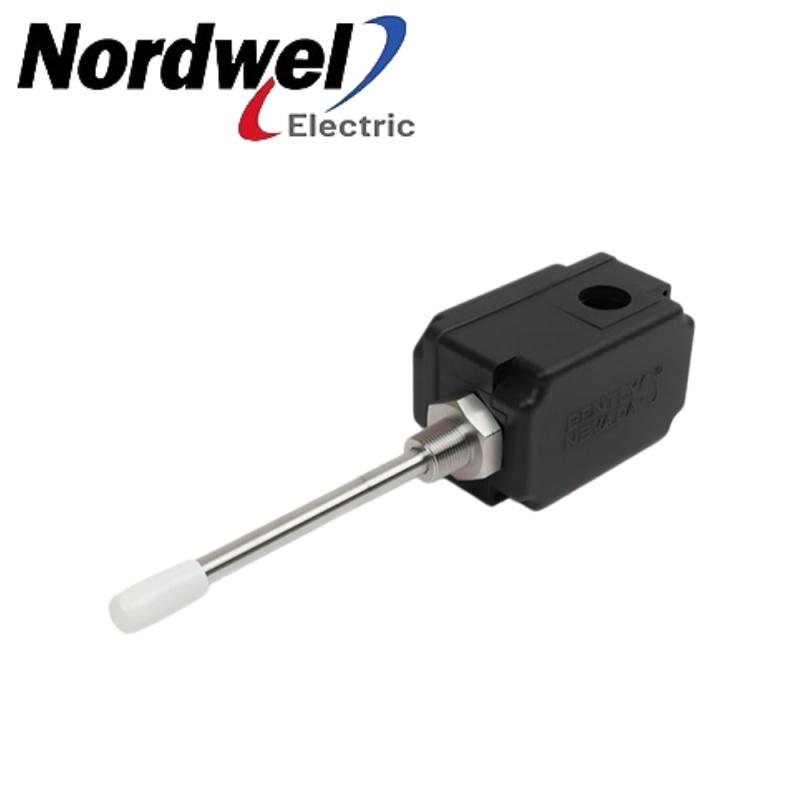

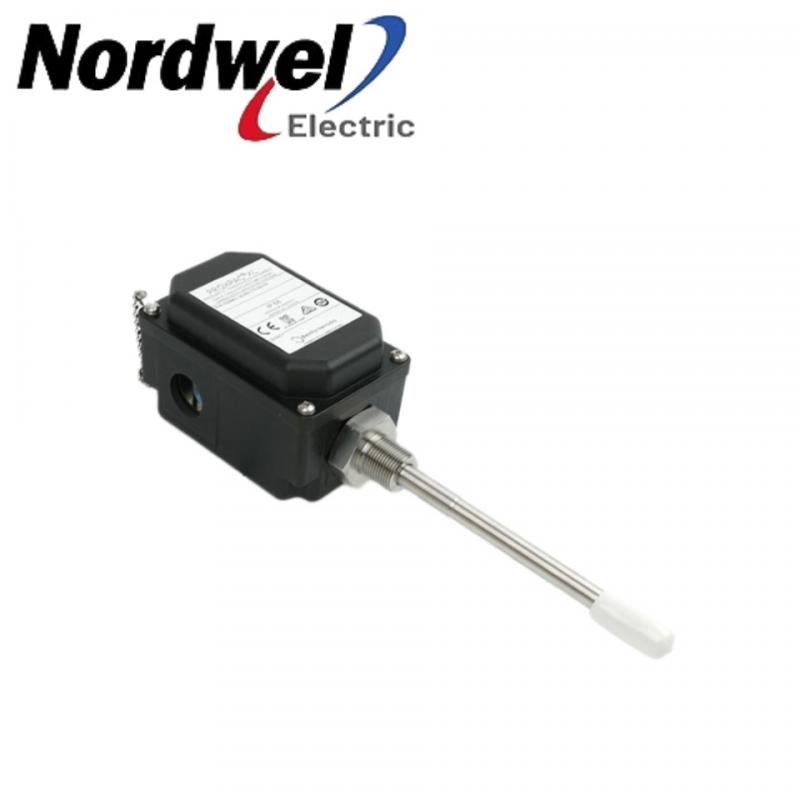

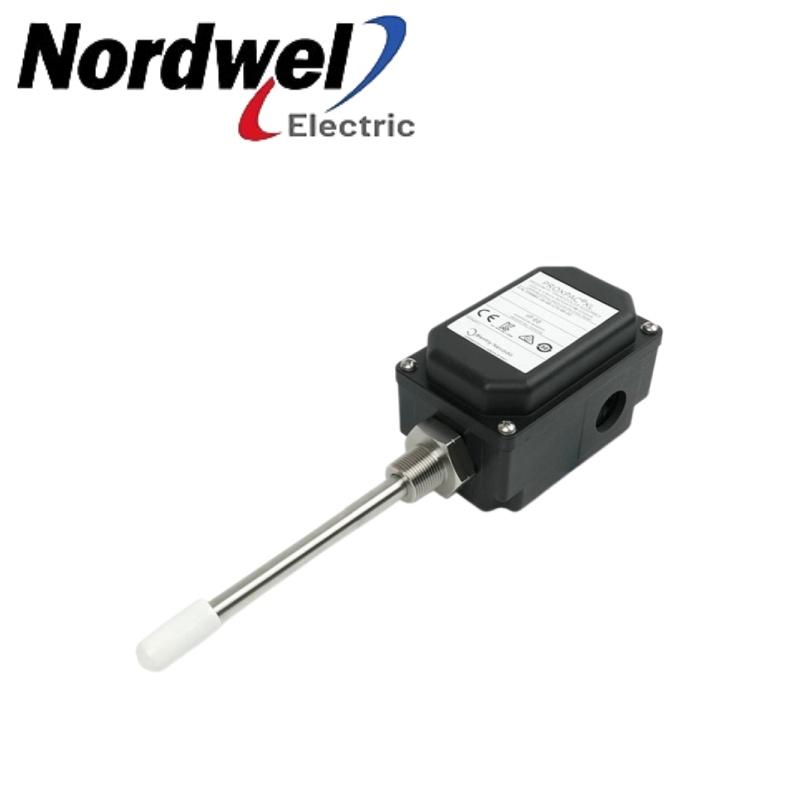

Bently Nevada 330881-16-00-200-06-02 PROXPAC XL Proximity Transducer
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
Bently Nevada |
|
Part number |
330881-16-00-200-06-02 |
|
Description |
Bently Nevada 330881-16-00-200-06-02 PROXPAC XL Proximity Transducer |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed 330881-16-00-200-06-02 in stock!!!
Part Number Breakdown
The official ordering structure is: 330881 – 16 – 00 – 200 – 06 – 02
330881 — PROXPAC XL Proximity Transducer, Metric
16 — 3300 XL 8 mm probe without approvals
00 — No standoff adapter
200 — 200 mm probe penetration
06 — One 3/4-14 NPT fitting, one 3/4-14 NPT to 1/2-14 NPT SST reducer, and two plugs
02 — 3/4-14 NPT mounting thread.
All-in-One Architecture
PROXPAC XL differs from a conventional separate proximity system because the housing cover contains its own 3300 XL Proximitor Sensor.
The architecture becomes:
Machine Shaft → 3300 XL 8 mm Probe → Integrated Proximitor Sensor → Field Wiring → Monitor
instead of: Probe → Extension Cable → Separate Proximitor Sensor → Monitor.
Baker Hughes states that this design eliminates both the extension cable between probe and Proximitor Sensor and the requirement for a separate Proximitor housing.
Measurement Performance
The integrated transducer provides a linear measurement range of: 2 mm (80 mils) from approximately:0.25 to 2.3 mm (10–90 mils) with corresponding output of approximately: -1 to -17 VDC.
The recommended gap is: 1.27 mm (50 mils) and the incremental scale factor is: 7.87 V/mm (200 mV/mil) ±5%.
The official 1 m system DSL specification is: Less than ±0.025 mm (±1 mil) from 0°C to +45°C under the manufacturer's specified conditions.
200 mm Probe Penetration
The defining mechanical parameter of this configuration is:
Probe Penetration: 200 mm
The metric PROXPAC XL ordering system permits probe penetration from: 25 mm minimum to: 760 mm maximum in: 1 mm increments.
For penetration lengths between 25 and 50 mm, Baker Hughes notes that a machine-case counterbore may be necessary to reduce probe side-view or rear-view effects. This does not apply to the 200 mm configuration because its penetration is well above that range.
|
