Brand:
Bently NevadaPart Number:
330101-00-76-20-02-05Weight:
0.1kgDimensions:
1.6x1.3x121cmPlace of Origin:
USACertification:
CO,CQDescription:

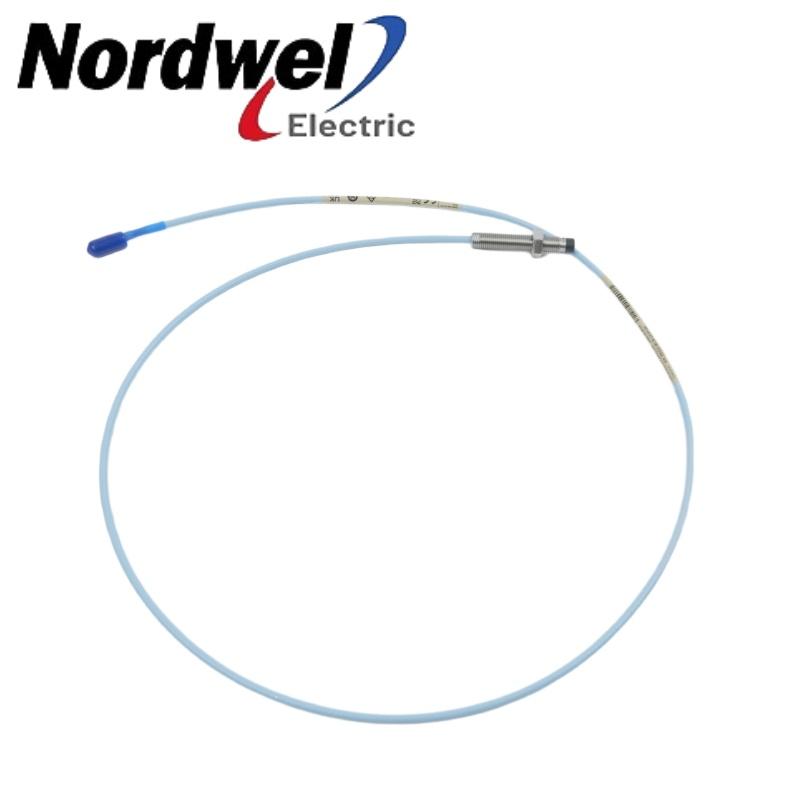

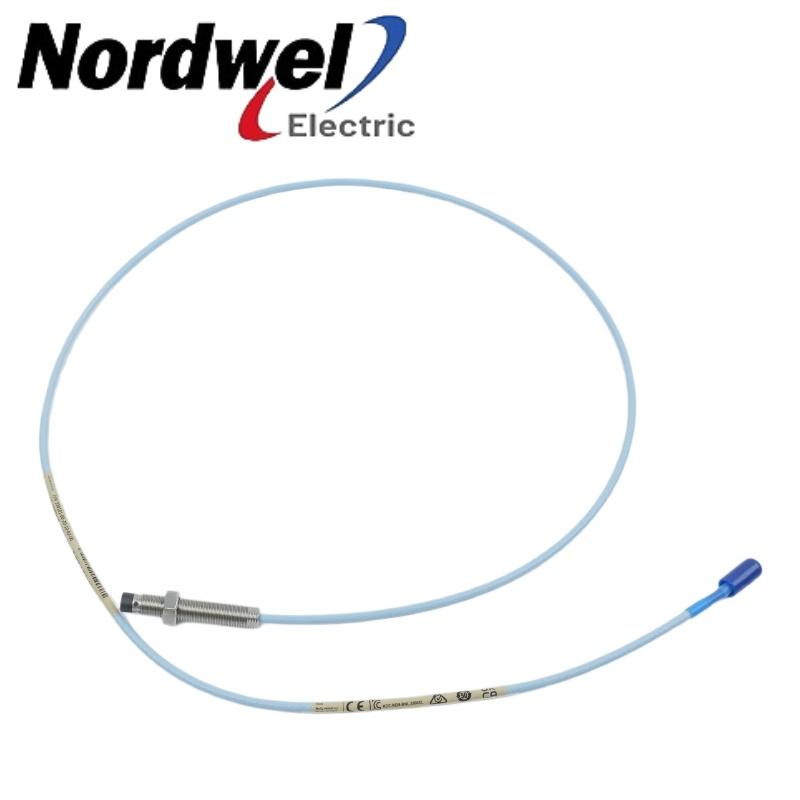

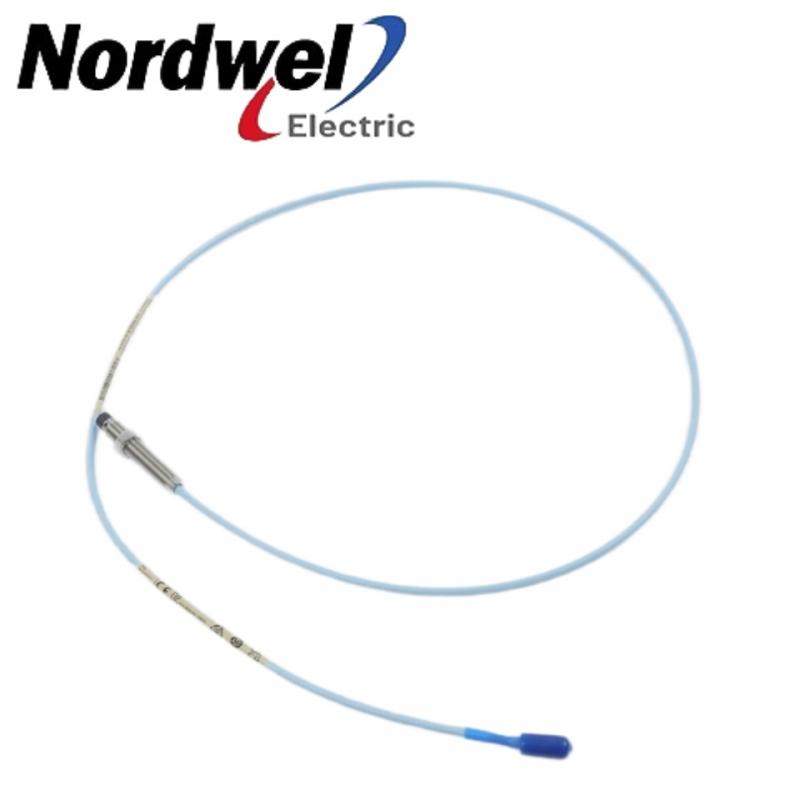

Bently Nevada 330101-00-76-20-02-05 3300 XL 8 mm Proximity Probes
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
Bently Nevada |
|
Part number |
330101-00-76-20-02-05 |
|
Description |
Bently Nevada 330101-00-76-20-02-05 3300 XL 8 mm Proximity Probes |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed 330101-00-76-20-02-05 in stock!!!
Part Number Breakdown
The configuration can be read as: 330101 – 00 – 76 – 20 – 02 – 05
330101 — 3300 XL 8 mm probe, 3/8-24 UNF thread, without armor
00 — 0.0 in unthreaded length
76 — 7.6 in overall case length
20 — 2.0 m (6.6 ft) total length
02 — Miniature coaxial ClickLoc connector with standard cable
05 — Agency approval option.
The important configuration characteristic for this exact model is the combination of a 7.6-inch case and 2.0-meter probe length.
Measurement Architecture
Measurement Performance
The complete 3300 XL 8 mm system provides: Linear Range: 2 mm (80 mils)
Approximate Linear Region: 0.25–2.3 mm (10–90 mils)
Approximate Output: -1 to -17 VDC
For radial vibration applications, the recommended gap is: -9 VDC ≈ 1.27 mm (50 mils).
The standard 1 m and 5 m systems provide a scale factor of:
7.87 V/mm (200 mV/mil) ±5%
under the conditions specified by Bently Nevada.
Industrial Applications
Fluid-Film Bearing Machinery
Bently Nevada identifies vibration and position measurement on fluid-film bearing machines as the primary application of the 3300 XL 8 mm system.
Radial Shaft Vibration
The probe observes changes in the distance between its tip and the rotating conductive shaft. Dynamic changes can therefore be measured as shaft vibration by the complete proximity transducer system.
Shaft Position
Because the system measures static values, it can also monitor changes in shaft position relative to the installed probe.
Keyphasor Reference
Bently Nevada officially identifies Keyphasor reference measurement as a primary application of the 3300 XL 8 mm system.
Speed Measurement
The system can also be used for speed measurements. Bently Nevada notes that separate application guidance should be consulted for tachometer and overspeed applications.
|
