Brand:
OthersPart Number:
D3G146-AH50-16Weight:
4.7kgDimensions:
27x20.5x27cmPlace of Origin:
GERMANYCertification:
CO,CQDescription:

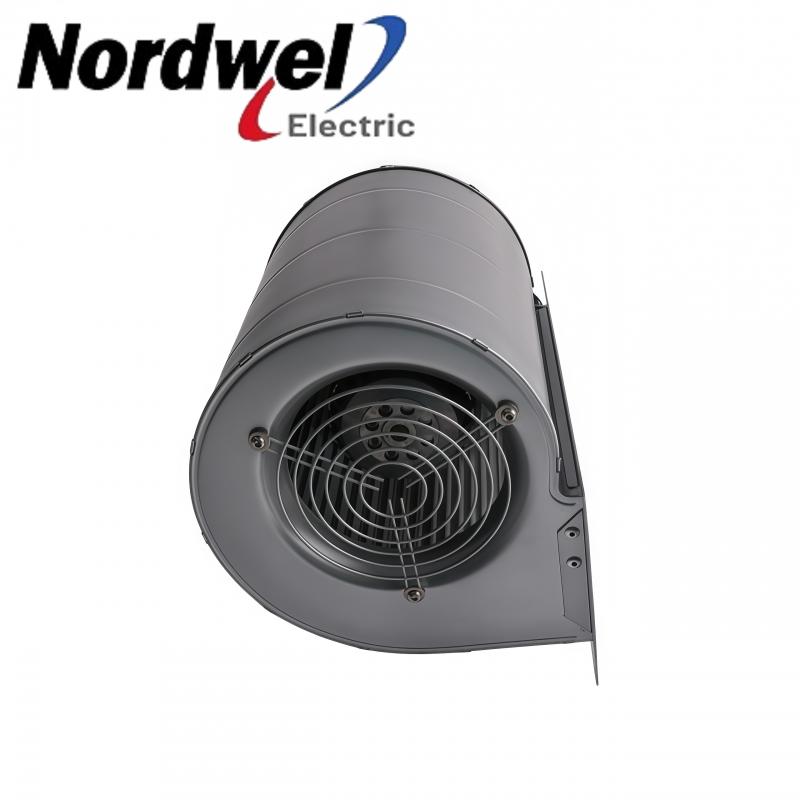

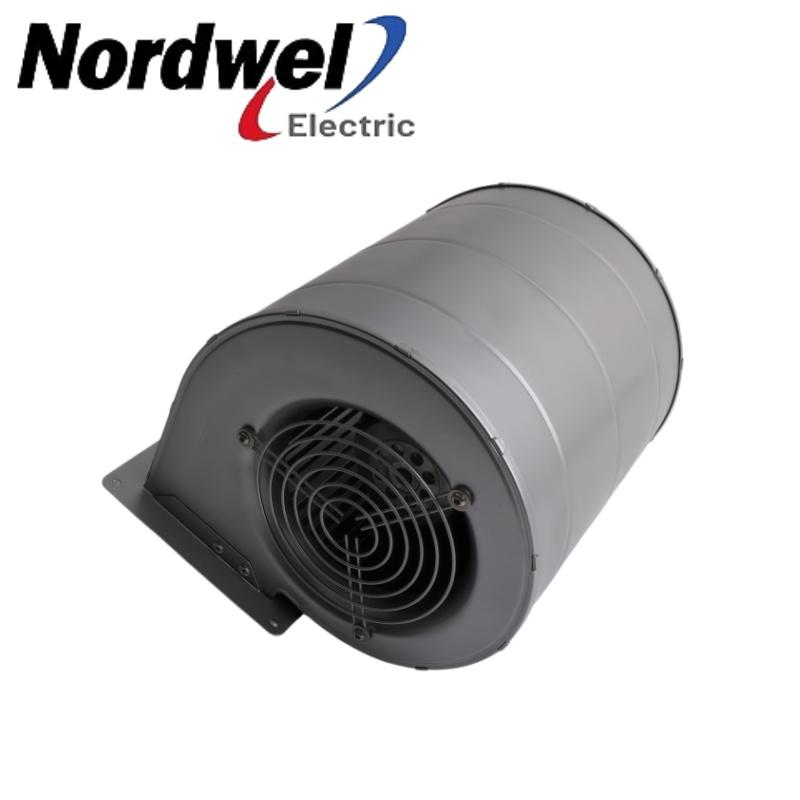

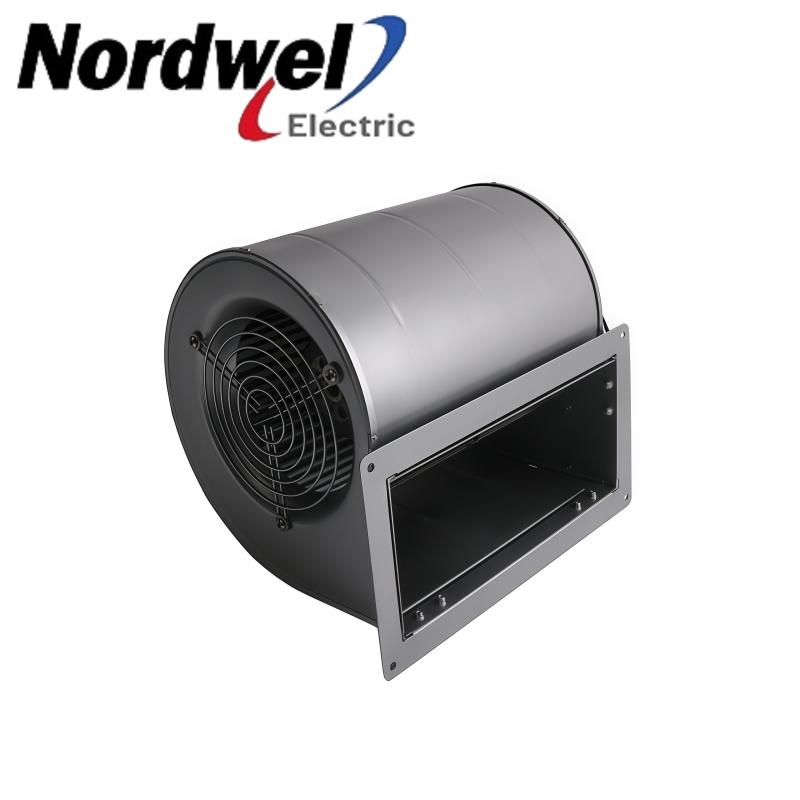

Ebmpapst D3G146-AH50-16 EC Centrifugal Fan
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
Ebmpapst |
|
Part number |
D3G146-AH50-16 EC |
|
Description |
Ebmpapst D3G146-AH50-16 EC Centrifugal Fan |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed D3G146-AH50-16 in stock!!!
Fan Construction
The manufacturer identifies D3G146-AH50-16 as:
EC centrifugal fan with: Forward-curved blades and: Dual intake.
It is supplied: With housing (flange).
The dual-intake centrifugal arrangement allows air to enter the impeller from both sides before being discharged through the centrifugal housing.
Mechanical & Environmental Data
Fan Size
146 mm
Rotor Surface
Painted black
Electronics Housing Material
Die-cast aluminum
Impeller Material
Sheet steel, Sendzimir galvanized
Housing Material
Sheet steel, galvanized
Motor Suspension
Vibration-damped on both sides
Direction of Rotation
Clockwise, viewed toward rotor
Degree of Protection
IP44
Insulation Class
B
Environmental Protection Class
F3-1
Installation Position
Shaft horizontal
Condensation Drainage Holes
None
Operating Mode
S1
Motor Bearing
Ball bearing
Transport/Storage Minimum Temperature
-40°C
Transport/Storage Maximum Temperature
+80°C.
Forward-Curved Centrifugal Design
The forward-curved impeller architecture is intended to generate airflow through the centrifugal housing while maintaining a relatively compact fan assembly.
Unlike an axial fan, airflow enters the centrifugal impeller and is redirected through the fan housing.
For product-page entity clarity, the correct classification is therefore:
EC Centrifugal Fan rather than simply: EC Motor or: Axial Fan.
Industrial Application Scenarios
The D3G146-AH50-16 is appropriate for applications requiring a centrifugal airflow source with electronically commutated variable-speed operation.
Typical functional use scenarios include equipment ventilation, where the centrifugal fan moves cooling or process air through an enclosure or air path; HVAC air movement, where controlled airflow and static-pressure capability are required; and industrial equipment cooling, where the fan operates as part of a larger machine rather than as a standalone consumer appliance.
The documented 350 Pa static pressure increase at the ErP optimum-efficiency point is particularly relevant to applications where the fan must overcome resistance from ducts, heat exchangers, filters, or internal equipment airflow paths.
|
