Brand:
Bently NevadaPart Number:
330709-000-050-10-12-05Weight:
0.1kgDimensions:
2x1.8x118cmPlace of Origin:
USACertification:
CO,CQDescription:

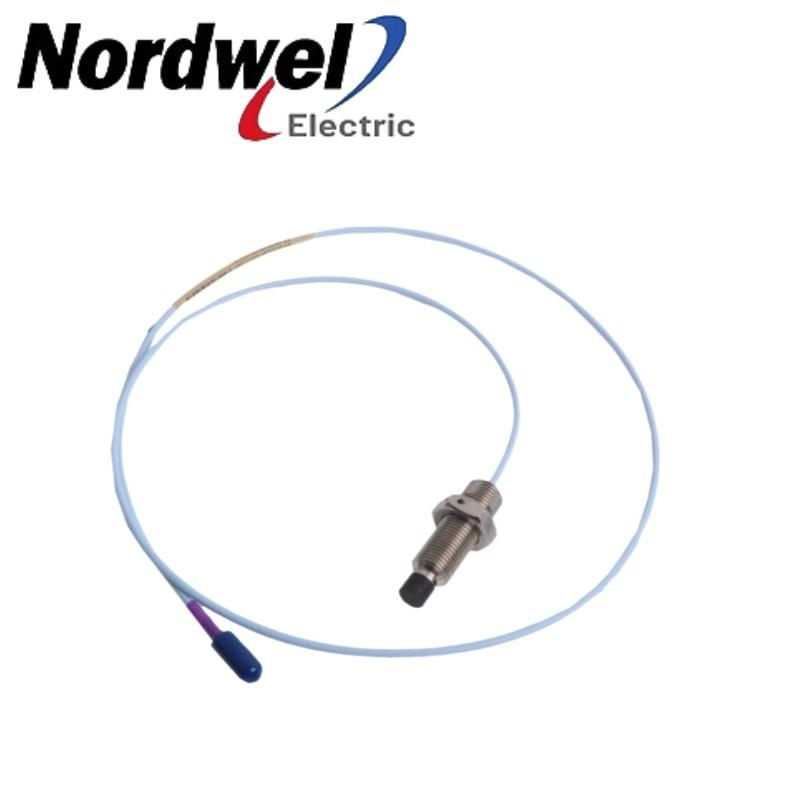

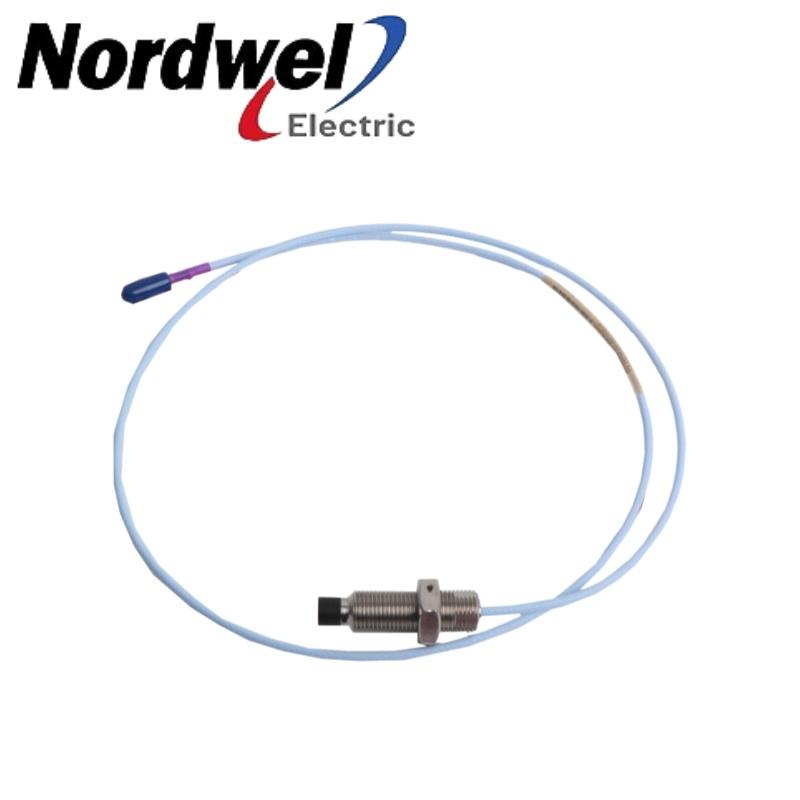

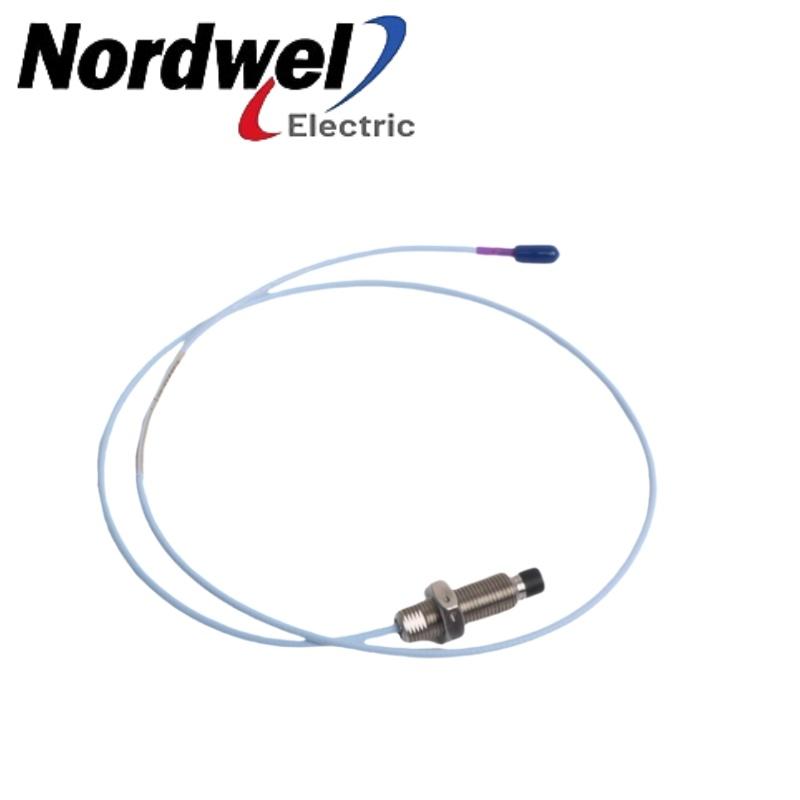

Bently Nevada 330709-000-050-10-12-05 3300 XL 11 mm Proximity Probe
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
Bently Nevada |
|
Part number |
330709-000-050-10-12-05 |
|
Description |
Bently Nevada 330709-000-050-10-12-05 3300 XL 11 mm Proximity Probe |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed 330709-000-050-10-12-05 in stock!!!
Product Overview
The Bently Nevada 330709-000-050-10-12-05 is a metric 3300 XL 11 mm Proximity Probe configured with an M16 × 1.5 thread and no armor.
Its exact configuration combines a 0 mm unthreaded length, 50 mm overall case length, 1.0 m probe length, miniature coaxial ClickLoc connector, FluidLoc cable, and multiple agency approvals.
The probe belongs to the 3300 XL 11 mm Proximity Transducer System, a non-contacting measurement platform for vibration and displacement monitoring on fluid-film bearing machinery.
Measurement Envelope
|
Linear Range |
4.0 mm (160 mils) |
|
Linear Region |
Approximately 0.5 to 4.5 mm (20 to 180 mils) |
|
Approximate Output |
-1 to -17 VDC |
|
Extended DSL Range |
Approximately 0.5 to 5.0 mm (20 to 200 mils) |
|
Extended Output Range |
Approximately -1 to -19 VDC |
|
Recommended Gap |
2.5 mm (100 mils) |
|
Incremental Scale Factor |
3.94 V/mm (100 mV/mil) ±10% |
|
Standard DSL |
Less than ±0.10 mm (±4 mils) |
|
Extended DSL |
Less than ±0.15 mm (±6 mils) |
|
Frequency Response |
0 to 8 kHz, +0/-3 dB typical |
|
Output Resistance |
50 Ω |
What the Probe Measures
The complete 3300 XL 11 mm system provides non-contacting vibration and displacement measurement.
Its normal measurement chain is:
330709 Probe → Extension Cable → 3300 XL 11 mm Proximitor Sensor → Monitoring System
The system converts changes in probe-to-target distance into an electrical output.
This allows the same transducer family to support both position-related and vibration-related measurements.
Application Map
Axial / Thrust Position
The extended 4.0 mm linear range makes the 3300 XL 11 mm system suitable for axial or thrust position measurement.
This is one of the primary applications specifically identified by Bently Nevada.
Steam Turbine Differential Expansion
The system is specified for:
Ramp differential expansion measurement on steam turbines
This application benefits from the longer measurement range available from the 11 mm system.
|
