Brand:
OthersPart Number:
TQ402 111-402-000-012 A1-B1-D000-E010-F0-G000-H05Weight:
0.25kgDimensions:
10.5x5.3x5.2cmPlace of Origin:
SwitzerlandCertification:
CO,CQDescription:

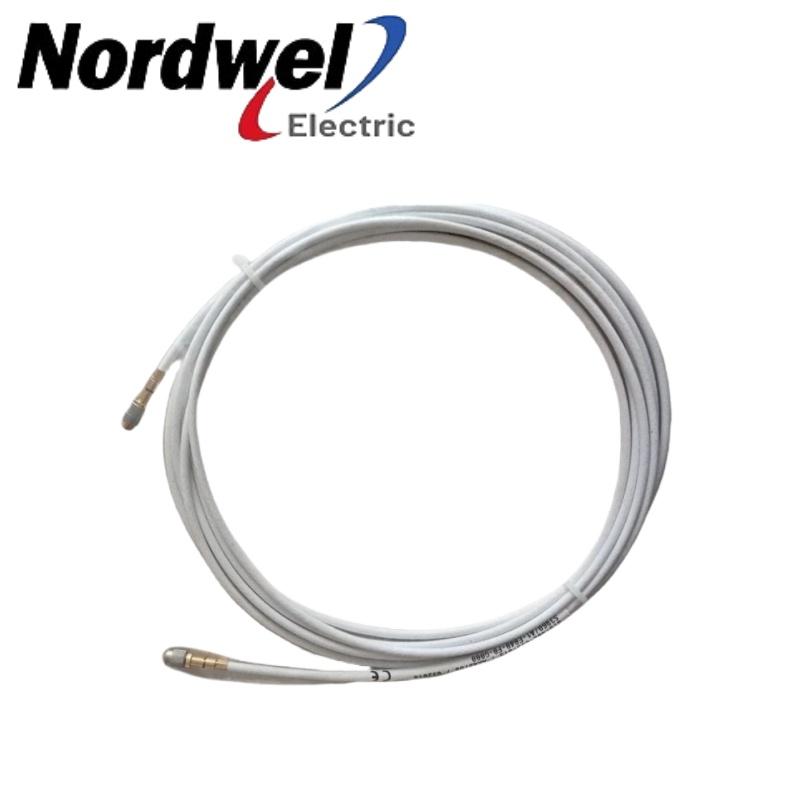

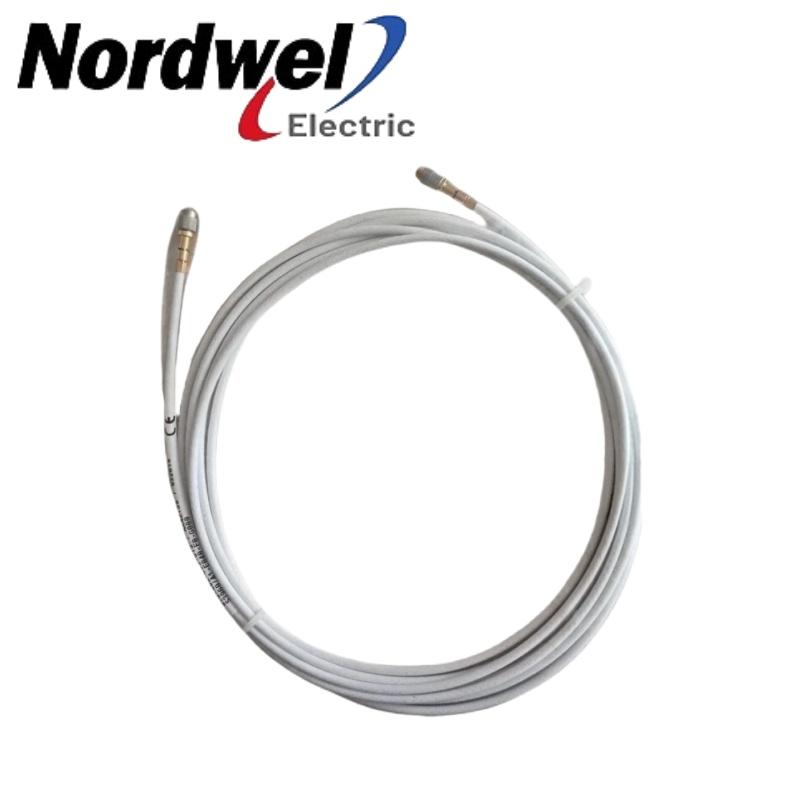

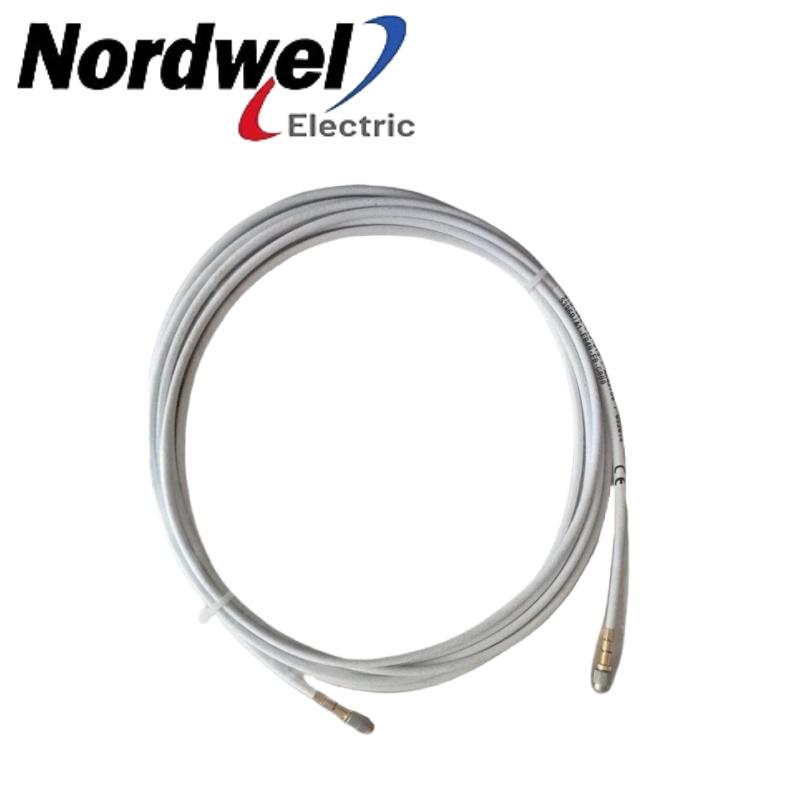

Vibro-Meter TQ402 111-402-000-012 A1-B1-D000-E010-F0-G000-H05 Proximity Transducer
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
Vibro-Meter |
|
Part number |
TQ402 111-402-000-012 A1-B1-D000-E010-F0-G000-H05 |
|
Description |
Vibro-Meter TQ402 111-402-000-012 A1-B1-D000-E010-F0-G000-H05 Non Contact Proximity Transducer |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed TQ402 111-402-000-012 A1-B1-D000-E010-F0-G000-H05 in stock!!!
Product Description
The system is based around a TQ402 or TQ412 non-contact sensor and an IQS900 signal conditioner. Together, these form a calibrated proximity measurement system in which each component is interchangeable. The system outputs a voltage or a current proportional to the distance between the transducer tip and the target, such as a machine shaft. The active part of the transducer is a coil of wire that is moulded inside the tip of the device, made of Torlon® (polyamide-imide). The transducer body is made of stainless steel. The target material must, in all cases, be metallic.
Key Features and Benefits
Non-contact measurement system based on
eddy-current principle
Ex certified versions for use in hazardous areas
(potentially explosive atmospheres)
Conforms to API 670 recommendations
1, 5 and 10 m systems
Temperature-compensated design
Voltage or current output with protection
against short circuits
Frequency response:
DC to 20 kHz (−3 dB)
Measurement range:
2 or 4 mm
Temperature range:
−40 to +180 °C
Physical characteristics
Transducer Construction
Wire coil: Ø8 mm
Tip material: Torlon® (polyamide-imide)
Housing: AISI 316L stainless steel body
Encapsulation: High-temperature epoxy glue
Integral and Extension Cables
Cable type: FEP-covered 70 Ω coaxial cable
Cable diameter: Ø3.6 mm
Connectors
Type: Self-locking miniature coaxial connector
Installation note: Hand-tighten the connector until it is fully locked.
Optional Protection
Flexible Stainless Steel Hose (Protection Tube)
Provides additional mechanical protection.
Not leak-tight.
FEP Sheath (Fluorinated Ethylene Propylene)
Resistant to almost all chemicals.
Provides low permeability to liquids, gases, and moisture.
Flexible, low friction, and mechanically durable.
Application
Shaft relative vibration and gap/position measurement chains for machinery protection and/or condition monitoring
Ideal for use with VM600Mk2/VM600 and VibroSmart® machinery monitoring systems
API 670 applications
|
