Brand:
OthersPart Number:
CA134 144-134-000-612Weight:
0.12kgDimensions:
4x3.8x3.8cmPlace of Origin:
SwitzerlandCertification:
CO,CQDescription:

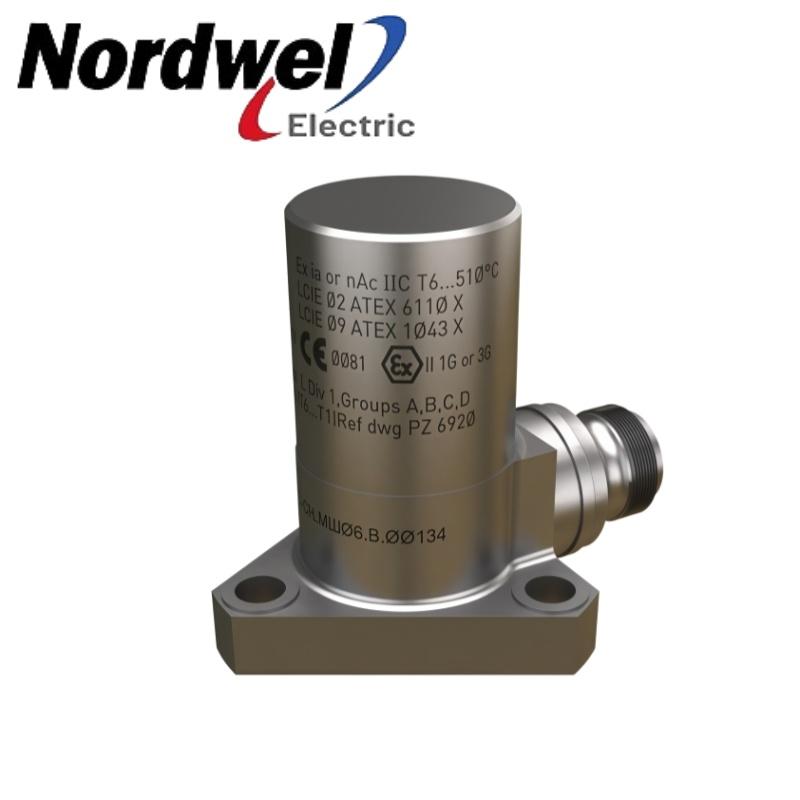

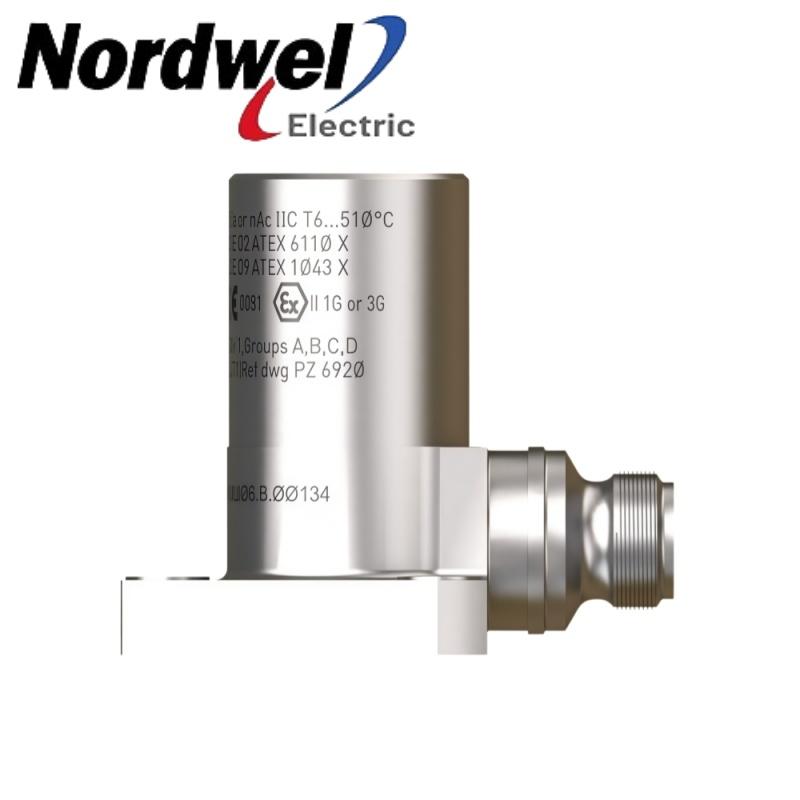

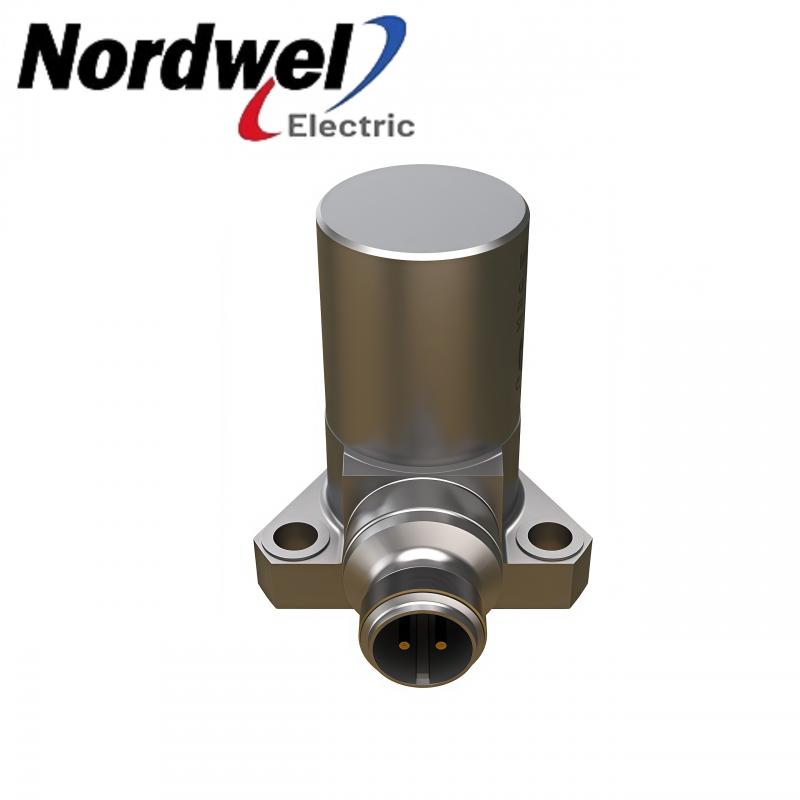

Vibro-Meter CA134 144-134-000-612 Piezoelectric Accelerometer
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
Vibro-Meter |
|
Part number |
CA134 144-134-000-612 |
|
Description |
Vibro-Meter CA134 144-134-000-612 Piezoelectric Accelerometer |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed CA134 144-134-000-612 in stock!!!
Product Description
The CA134 is a high-temperature piezoelectric accelerometer from Parker Meggitt’s vibro-meter ® product line. The CA134 sensor features a compression-mode measuring element with internal case insulation in a high-temperature nickel alloy case (housing). The CA134 is available as a sensor only or fitted with an integral mineral-insulated (MI) cable that is protected by a double braid and terminated with a vibro-meter ® high-temperature connector. The sensor and cable are hermetically welded to produce a sealed leaktight assembly. The sensor only version allows different cable assemblies to be used depending on the environmental/temperature requirements of the application. All versions of the CA134 are Ex certified for installation in potentially explosive atmospheres (hazardous areas). The piezoelectric material used and the design of the CA134 ensures an extremely stable and reliable device that is suitable for the long-term monitoring and measurement of vibration over wide temperature ranges in severe environments, such as gas turbines or cryogenic applications.
Key Features and Benefits
From the vibro-meter ® product line
Sensitivity: 10 pC/g
Frequency response: 0.5 to 6 000 Hz
Temperature range:
54 to 500 °C
253 °C (20 K) to 500 °C for cryogenic version
Ex certified for use in hazardous areas
(potentially explosive atmospheres)
Symmetrical sensor with internal case insulation and differential output
Hermetically welded
high-temperature nickel alloy case
Operating
Sensitivity
10 pC/g ±5%
Measured at 120 Hz with 5 g
Dynamic Measurement Range
0.001 to 500 g peak
Overload Capacity
Up to 1000 g peak (spikes)
Linearity
±1% over the full dynamic measurement range
Transverse Sensitivity
Less than 5%
Resonant Frequency
Greater than 14 kHz (nominal)
Frequency Response
0.5 to 3500 Hz: ±5% (lower cutoff frequency is determined by the signal conditioner)
3500 to 6000 Hz: Less than ±10%
Internal Insulation Resistance
Minimum 10⁸ Ω at 23°C (73°F)
Minimum 10⁵ Ω at 500°C (932°F)
Capacitance
Sensor Head
20 pF (nominal) between pin (+ or −) and case (ground)
450 pF (nominal) between pins (+ and −)
Mineral-Insulated (MI) Cable (Integral cable version only)
350 pF/m (nominal) between pin (+ or −) and case (ground)
220 pF/m (nominal) between pins (+ and −)
Application
Vibration monitoring over a wide temperature range, including cryogenic temperatures
Hazardous areas (potentially explosive atmospheres) and/or harsh industrial environments
|
