Brand:
SIEMENSPart Number:
6SL3246-0BA22-1PA0 V4.7Weight:
0.61kgDimensions:
7.3x19.9x6.7cmPlace of Origin:
GERMANYCertification:
CO,CQDescription:

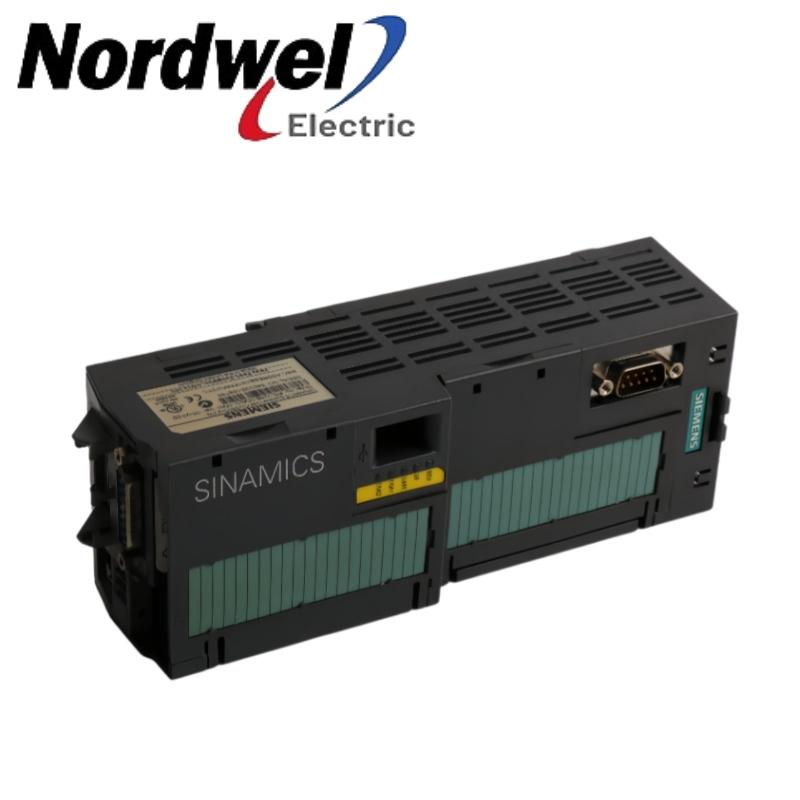

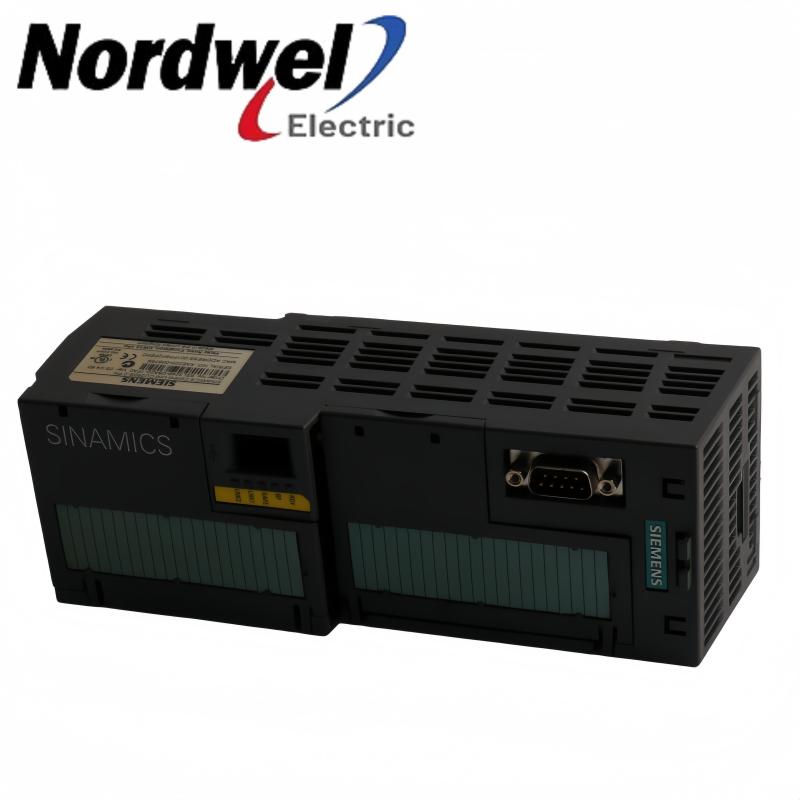

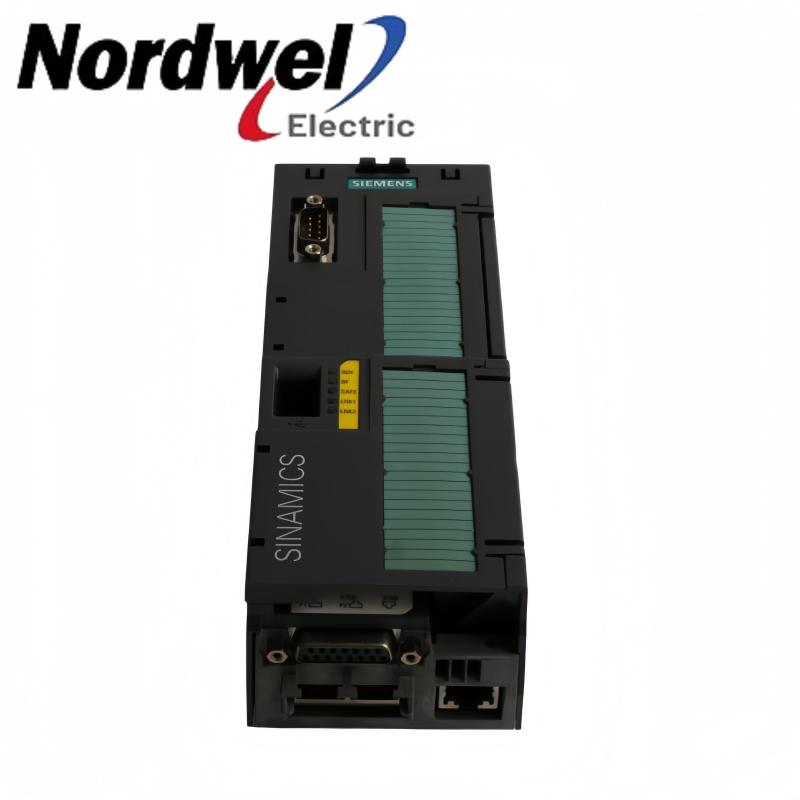

Siemens 6SL3246-0BA22-1PA0 V4.7 Control Unit
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
Siemens |
|
Part number |
6SL3246-0BA22-1PA0 V4.7 |
|
Description |
Siemens 6SL3246-0BA22-1PA0 V4.7 Control Unit |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed 6SL3246-0BA22-1PA0 V4.7 in stock!!!
Inputs / outputs
Standard digital inputs
FAQ
Which safety functions are supported by 6SL3246-0BA22-1PA0 V4.7?
It supports STO, SBC, and SS1 safety functions.
What fieldbus network is integrated into 6SL3246-0BA22-1PA0 V4.7?
It integrates 1 PROFIBUS DP interface.
Which encoder interfaces can be connected?
It supports D-CLiQ, HTL, TTL, SSI, and Resolver encoder types.
Selection Guide
Choose this model for SINAMICS G120 drive systems requiring a PROFIBUS DP interface.
Select the CU250S-2 DP version for vector control and positioning applications.
Verify compatibility with Firmware V4.7 before commissioning.
Use this Control Unit when EPOS (Easy Positioning) functionality is required.
Choose it for applications requiring 4 configurable DI/DO.
Select this unit if 6 digital inputs (3 F-DI) are needed.
Ensure the application requires 5 standard digital inputs.
Confirm support for 3 digital outputs (1 F-DO).
Choose this model when 2 analog inputs are required.
Verify the need for 2 analog outputs.
Select this unit for integrated safety functions including STO, SBC, and SS1.
Use the extended safety license when additional safety functions are required.
Select this version if encoder support is needed for D-CLiQ, HTL, TTL, SSI, or Resolver interfaces.
Confirm the installation environment matches the IP20 protection rating.
Installation Notes
Install the Control Unit only with a compatible SINAMICS G120 Power Module.
Disconnect all input power and wait for the DC link to discharge completely before installation or wiring.
Mount the Control Unit securely onto the Power Module until the locking mechanism engages.
Verify that the firmware version is V4.7 or a supported release before commissioning.
Use compatible CU250S-2 accessories and approved option modules only.
Connect the motor, line supply, and control wiring according to the terminal designations in the operating instructions.
Ensure proper protective earth (PE) grounding before applying power.
Install the drive in a clean, well-ventilated enclosure that meets the specified environmental conditions.
If using an FSD to FSF Power Module, the Control Unit must use firmware V4.7 HF8 or later.
Complete parameter configuration and commissioning using STARTER or SINAMICS Startdrive software after installation.
|
