Brand:
Bently NevadaPart Number:
330104-06-06-90-02-05Weight:
0.12kgDimensions:
1.8x1.5x56cmPlace of Origin:
USACertification:
CO,CQDescription:

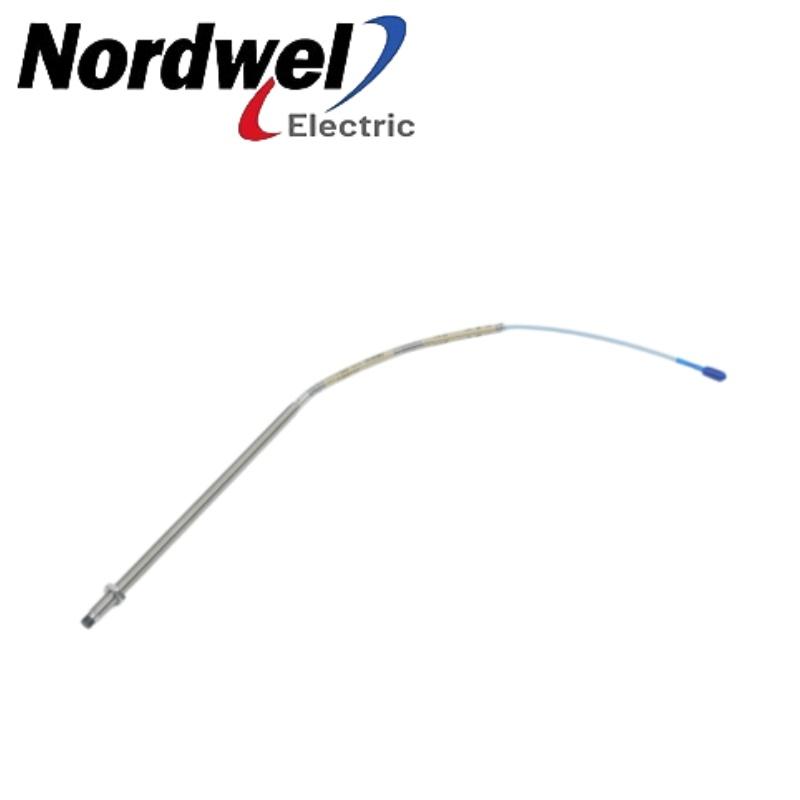

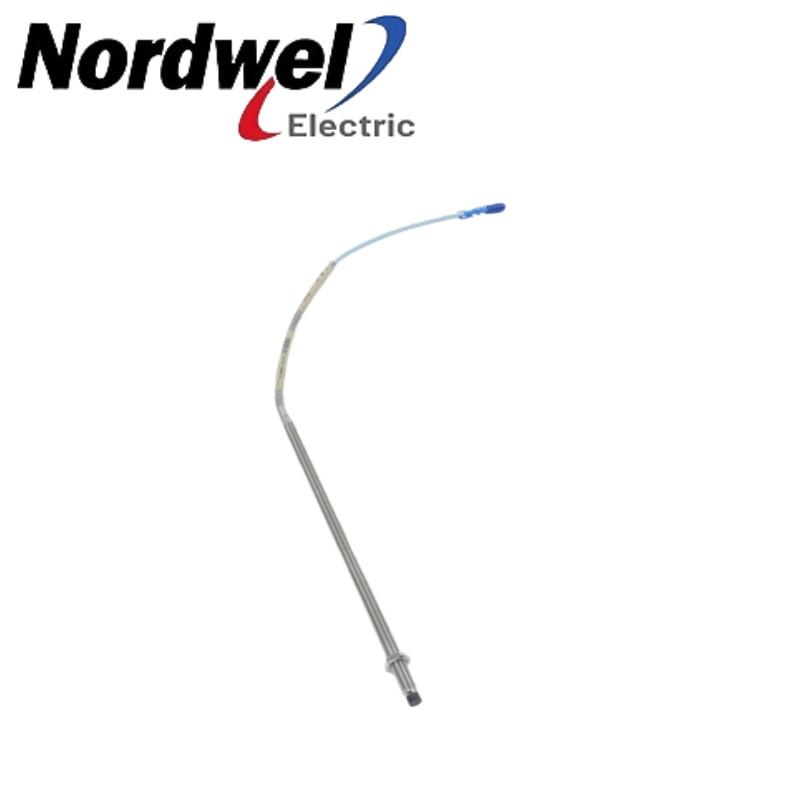

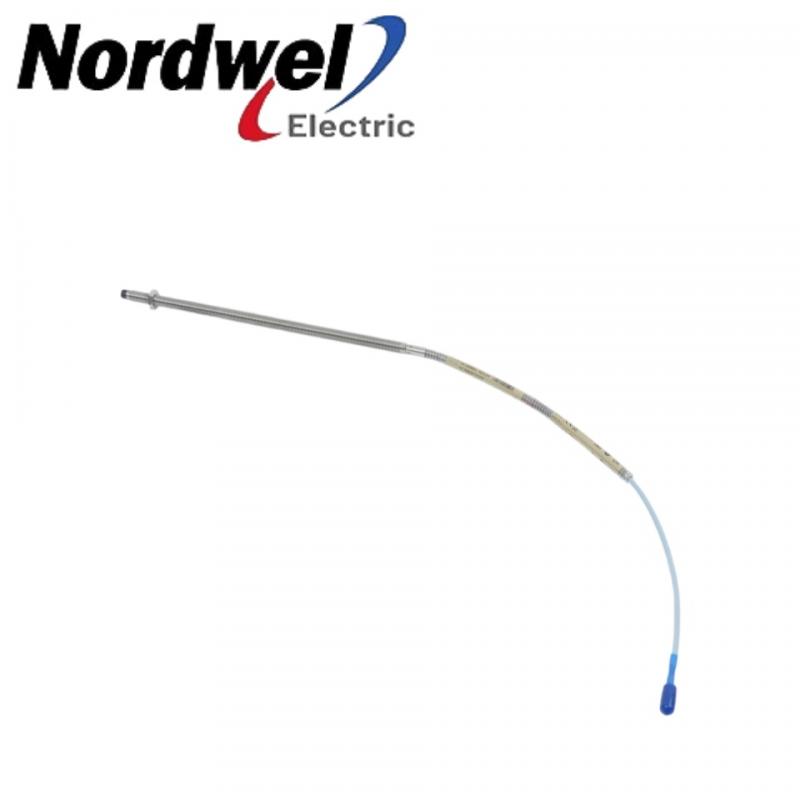

Bently Nevada 330104-06-06-90-02-05 3300 XL 8 mm Proximity Probes
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
Bently Nevada |
|
Part number |
330104-06-06-90-02-05 |
|
Description |
Bently Nevada 330104-06-06-90-02-05 3300 XL 8 mm Proximity Probes |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed 330104-06-06-90-02-05 in stock!!!
Feature
Non-contact vibration measurement：Uses eddy current technology to measure vibration and position changes without direct contact with the target surface.
Complete sensor system：Includes an 8 mm probe, extension cable, and Proximitor Sensor for a complete monitoring setup.
Static and dynamic measurement：Measures both shaft position and vibration signals for machinery condition monitoring.
High accuracy signal output：Provides output voltage proportional to the distance between the probe tip and the conductive surface.
Suitable for rotating machinery：Commonly used for vibration and position monitoring on fluid-film bearing machines.
Keyphasor and speed measurement support：Can be used for Keyphasor reference signals and machine speed measurement applications.
Interchangeable components：Probe, extension cable, and Proximitor Sensor components support easy replacement and system compatibility.
DIN-rail installation support：The Proximitor Sensor package supports high-density DIN-rail mounting and panel installation options.
Technical Specifications
|
Probe Tip Diameter |
8.0 mm |
|
Thread Type |
M10 x 1 metric thread. |
|
Unthreaded Length |
60 mm |
|
Minimum Unthreaded Length |
0 mm |
|
Maximum Unthreaded Length |
230 mm |
|
Total Cable Length |
9.0 meters |
|
Cable Type |
Standard 75 Ω triaxial probe cable |
|
Cable Insulation Material |
FEP insulated cable |
|
Cable Outside Diameter |
3.68 mm maximum |
|
Armored Cable Diameter |
7.67 mm outside diameter |
|
Armor Ferrule Diameter |
9.5 mm maximum |
|
Connector Type |
Miniature male coaxial ClickLoc connector |
|
Connector Diameter |
7.24 mm maximum |
Selection Guide
Compliance and Certifications
Complies with FCC Part 15 requirements.
Meets EMC Directive 2014/30/EU standards.
Certified for industrial EMC performance according to EN 61000-6-2 and EN 61000-6-4.
Complies with RoHS Directive 2011/65/EU environmental requirements.
Meets API 670 machinery protection system requirements.
Certified for marine and offshore applications under relevant classification standards.
Complies with EN 61326 series EMC requirements for measurement and control equipment.
|
