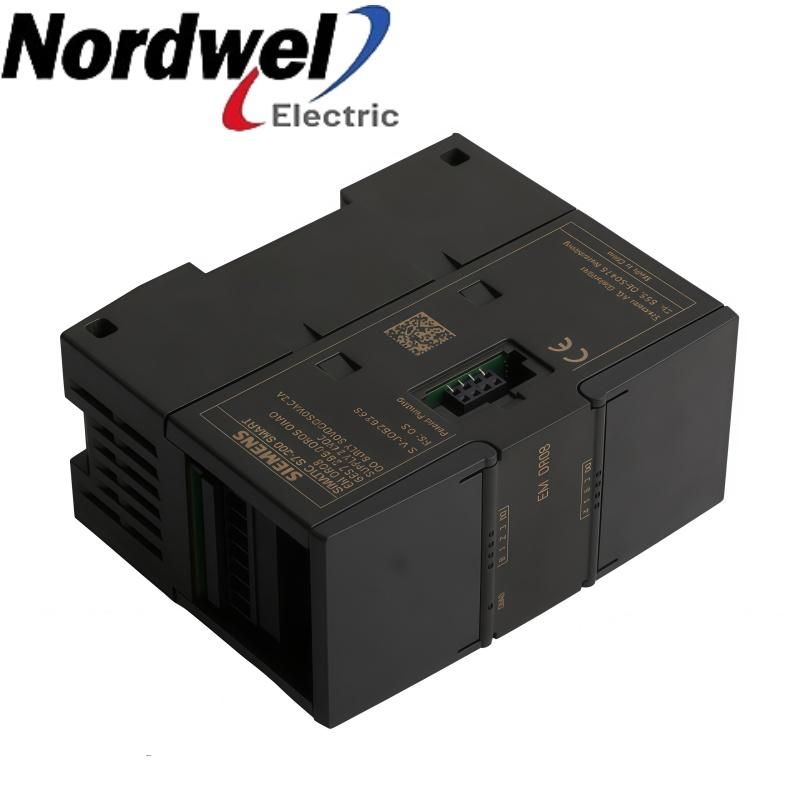

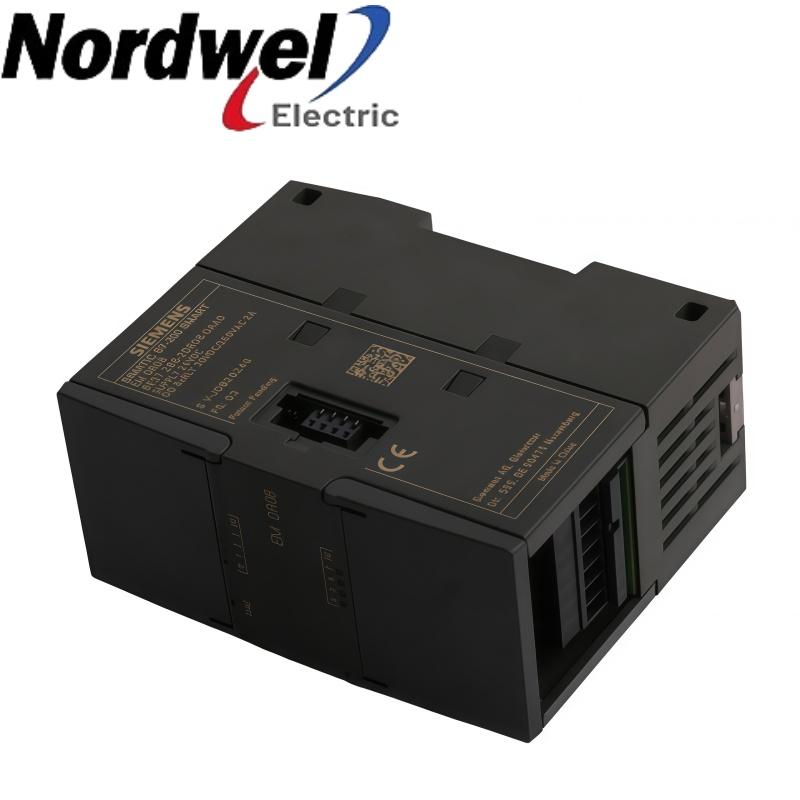

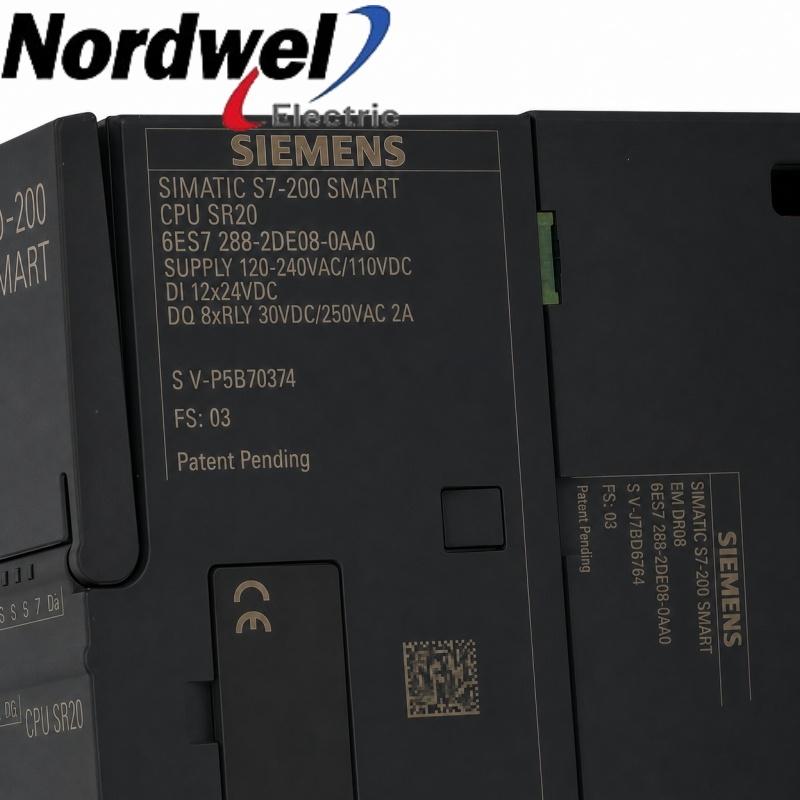

A 45 mm-wide S7-200 SMART expansion module adding eight 24 V DC sink/source digital inputs in two isolation groups.
Brand:
SIEMENSItem NO.:
6ES7288-2DE08-0AA0Part Number:
6ES7288-2DE08-0AA0Weight:
141.4 gDimensions:
45 × 100 × 81 mmCertification:
CE; IP20Description:
A 45 mm-wide S7-200 SMART expansion module adding eight 24 V DC sink/source digital inputs in two isolation groups.Siemens identifies 6ES7288-2DE08-0AA0 as the SIMATIC S7-200 SMART EM DE08 / DI 8 × 24 V DC. A 45 mm-wide S7-200 SMART expansion module adding eight 24 V DC sink/source digital inputs in two isolation groups.
Published digital and analog input modules for adding field signals.
Sourcing MOSFET options for fast 24 V DC output expansion.
Dry-contact relay options for documented AC and DC field loads.
Published standard S7-200 SMART CPUs that support expansion-module architectures.
Selected ABB control, I/O and measurement products already published on Nordwel.
Selected Honeywell controller, IOTA and Safety Manager products published on Nordwel.
Selected GE turbine-control, communication and I/O products published on Nordwel.
Square D belongs to Schneider Electric; these linked Schneider products are already published on Nordwel.
Selected Bently Nevada 330904 NSv proximity probes with verified Nordwel contact details.
Selected Vibro-Meter proximity and vibration sensor products published on Nordwel.
Selected Bently Nevada 330904 and 330905 NSv proximity probes with verified Nordwel contact details.
Selected Bently Nevada 330905, 330910 and 3500 system products with verified Nordwel contact details.
Use the exact Siemens order number and verify the system constraints before procurement.
Use EM DE08 only with an S7-200 SMART CPU that provides an expansion-module bus.
Reserve one byte of digital input process image and map each field signal.
Choose 0.2, 0.4, 0.8, 1.6, 3.2, 6.4 or 12.8 ms in four-channel groups.
Check sensor outputs meet the official logic thresholds and remain below 30 V DC continuous.
Selected specialist-brand products requested for regional projects and available on Nordwel.
Auxiliary relay option for protection and control applications.
Recent Middle East inquirySIMATIC S7-200 SMART RS485 communication board.
Recent Middle East inquiryRemote I/O gateway for demanding process-system environments.
Specialist brandReplacement inverter driver board for installed industrial systems.
Specialist brandAmplifier transducer for load-cell signal conditioning.
Specialist brandIndustrial power-supply model for legacy equipment support.
Specialist brandAnswers below use Siemens official product documentation for this exact order number.
It adds eight 24 V DC digital inputs. It does not provide any digital outputs.
Siemens specifies sink/source input wiring with IEC Type 1 sink characteristics.
They are divided into two isolation groups, with 500 V AC field-to-logic isolation tested for one minute.
The official minimum logic-1 point is 15 V DC at 2.5 mA.
Yes. Seven filter times from 0.2 ms to 12.8 ms are selectable in groups of four inputs.
Siemens lists 105 mA from the SM bus, 4 mA per used 24 V DC input and 1.5 W power consumption.
EM DE08 measures 45 × 100 × 81 mm and the listed weight is 141.4 g.
No. Those compact CRs CPUs do not support expansion modules; select an expandable S7-200 SMART CPU.
