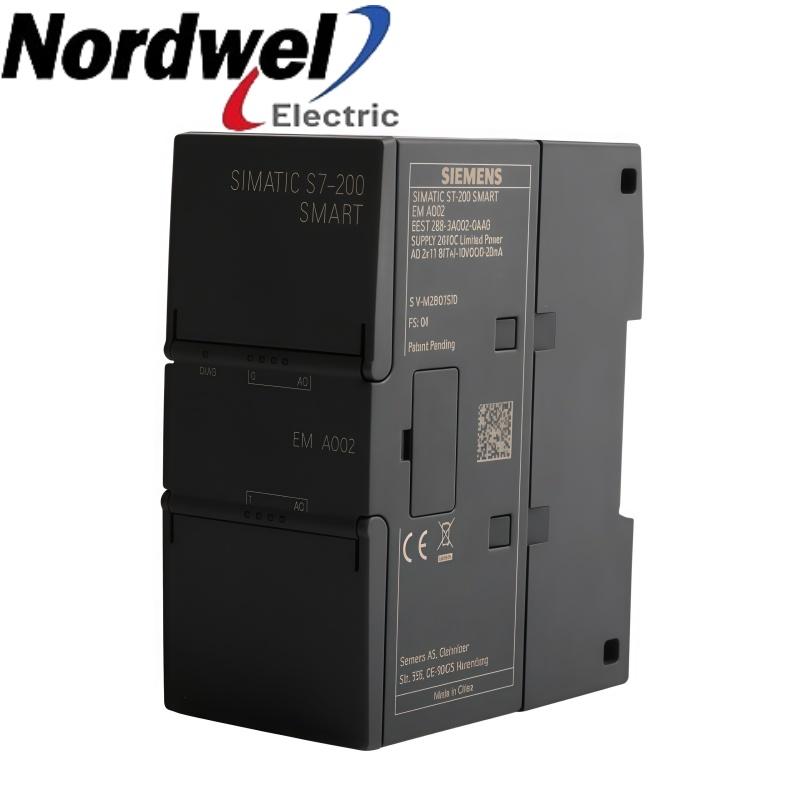

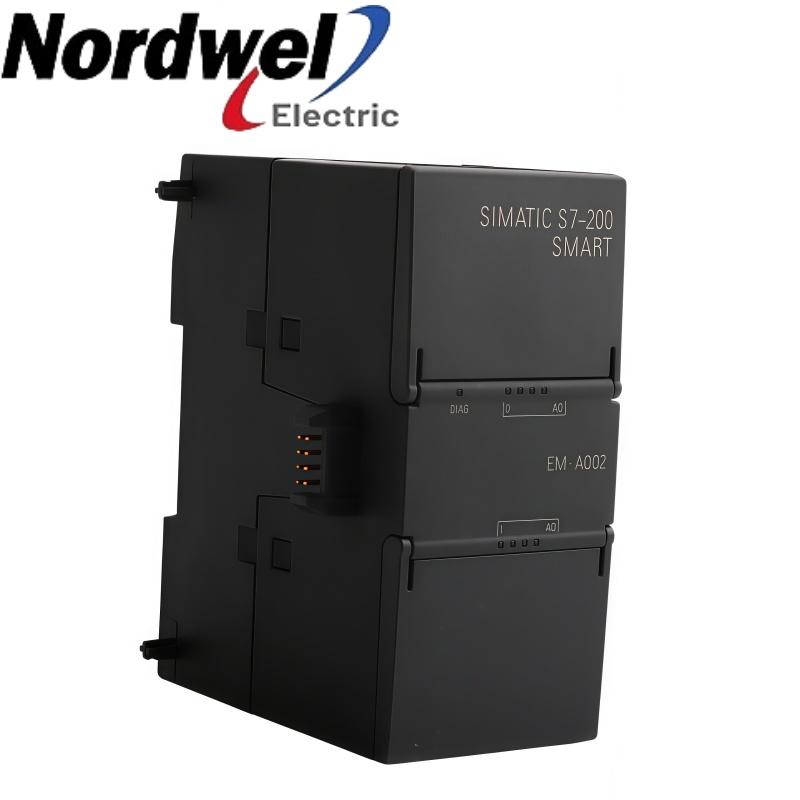

A two-channel analog-output module for commanding voltage- or current-controlled field devices from a compact S7-200 SMART station.
Brand:
SIEMENSItem NO.:
6ES7288-3AQ02-0AA0Part Number:
6ES7288-3AQ02-0AA0Weight:
147.1 gDimensions:
45 × 100 × 81 mmCertification:
CE; IP20Description:

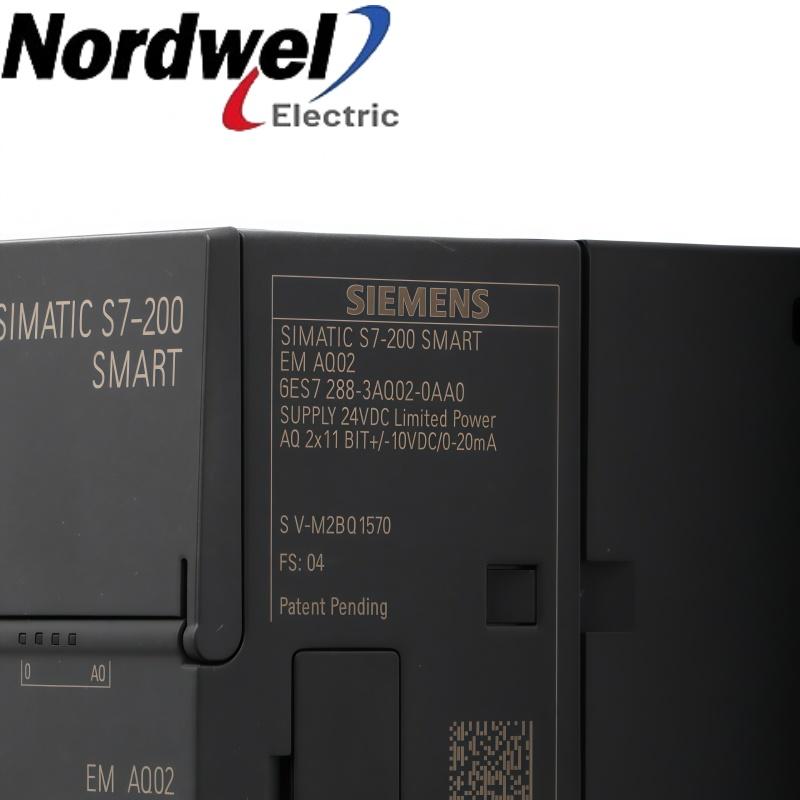

A two-channel analog-output module for commanding voltage- or current-controlled field devices from a compact S7-200 SMART station.Siemens identifies 6ES7288-3AQ02-0AA0 as the SIMATIC S7-200 SMART SM AQ02 / AQ 2 × Voltage or Current. A two-channel analog-output module for commanding voltage- or current-controlled field devices from a compact S7-200 SMART station.
Published S7-200 SMART analog input and analog output choices.
Mixed and output-only digital expansion modules for complementary field signals.
Additional digital input and relay-output options published on Nordwel.
Published standard S7-200 SMART CPUs for systems requiring expansion modules.
Selected ABB control, I/O and measurement products already published on Nordwel.
Selected Honeywell controller, IOTA and Safety Manager products published on Nordwel.
Selected GE turbine-control, communication and I/O products published on Nordwel.
Square D belongs to Schneider Electric; these linked Schneider products are already published on Nordwel.
Selected Bently Nevada 330904 NSv proximity probes with verified Nordwel contact details.
Selected Vibro-Meter proximity and vibration sensor products published on Nordwel.
Selected Bently Nevada 330904 and 330905 NSv proximity probes with verified Nordwel contact details.
Selected Bently Nevada 330905, 330910 and 3500 system products with verified Nordwel contact details.
Use the exact Siemens order number and verify the system constraints before procurement.
Set each output for voltage or current to match the receiving device.
Confirm voltage inputs are at least 1 kΩ and current-loop loads are no more than 500 Ω.
Select shutdown, keep-last-value or substitute-value behavior for loss of RUN state.
Follow Siemens grounding practice and keep twisted, shielded cabling within 100 m.
Selected specialist-brand products requested for regional projects and available on Nordwel.
Auxiliary relay option for protection and control applications.
Recent Middle East inquirySIMATIC S7-200 SMART RS485 communication board.
Recent Middle East inquiryRemote I/O gateway for demanding process-system environments.
Specialist brandReplacement inverter driver board for installed industrial systems.
Specialist brandAmplifier transducer for load-cell signal conditioning.
Specialist brandIndustrial power-supply model for legacy equipment support.
Specialist brandAnswers below use Siemens official product documentation for this exact order number.
It provides two analog output channels, each configurable for voltage or current.
Siemens documents ±10 V and 0–20 mA ranges; the product description highlights 4–20 mA application use.
The exact Siemens description lists 11-bit resolution for voltage output and 10-bit resolution for current output.
Use at least 1 kΩ in voltage mode and no more than 500 Ω in current mode.
Typical official values are 300 µs for a resistive voltage load and 600 µs for a 1 mH current load.
Siemens lists supply-voltage monitoring, wire-break and short-circuit diagnostics, with applicability depending on output mode.
No. The field side is not isolated from the logic side.
SM AQ02 measures 45 × 100 × 81 mm, weighs about 147.1 g and consumes 1.5 W with no load.
