Brand:
SIEMENSPart Number:
6ES7134-6GD01-0BA1Weight:
0.04kgDimensions:
6.8x2.7x4.5cmPlace of Origin:
GERMANYCertification:
CO,CQDescription:

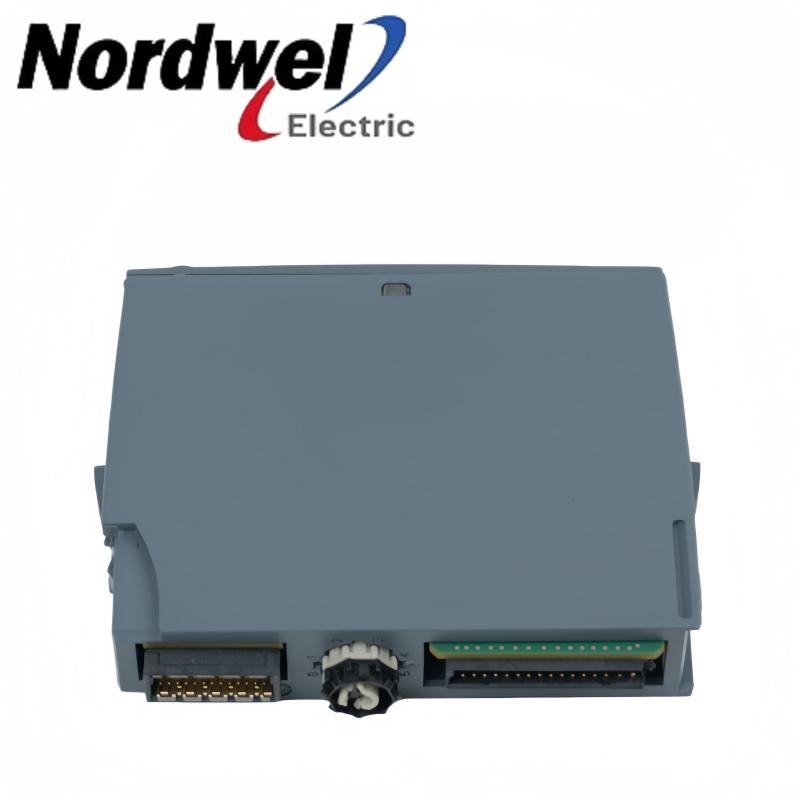

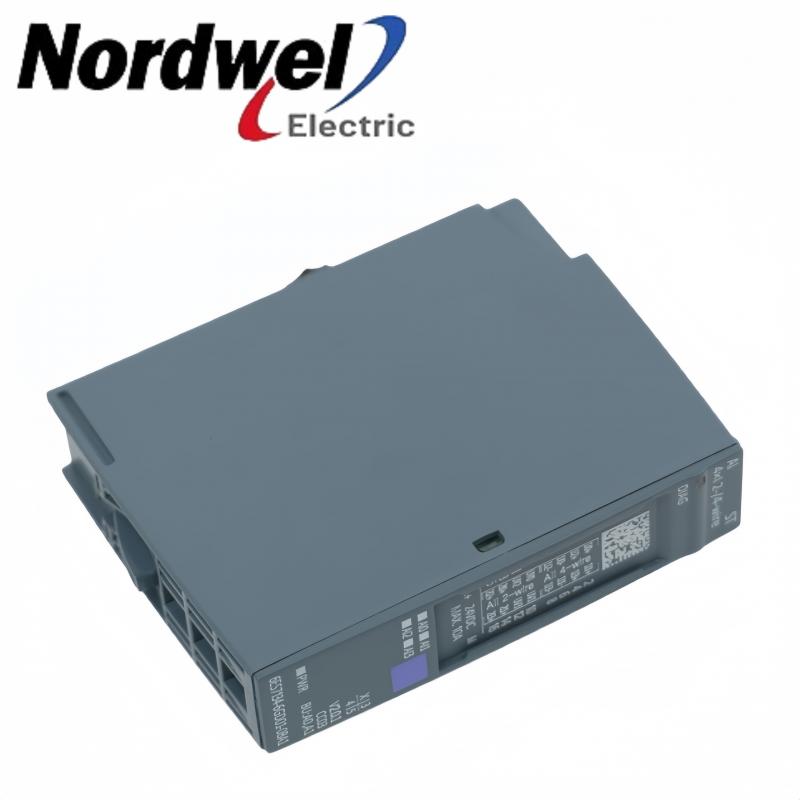

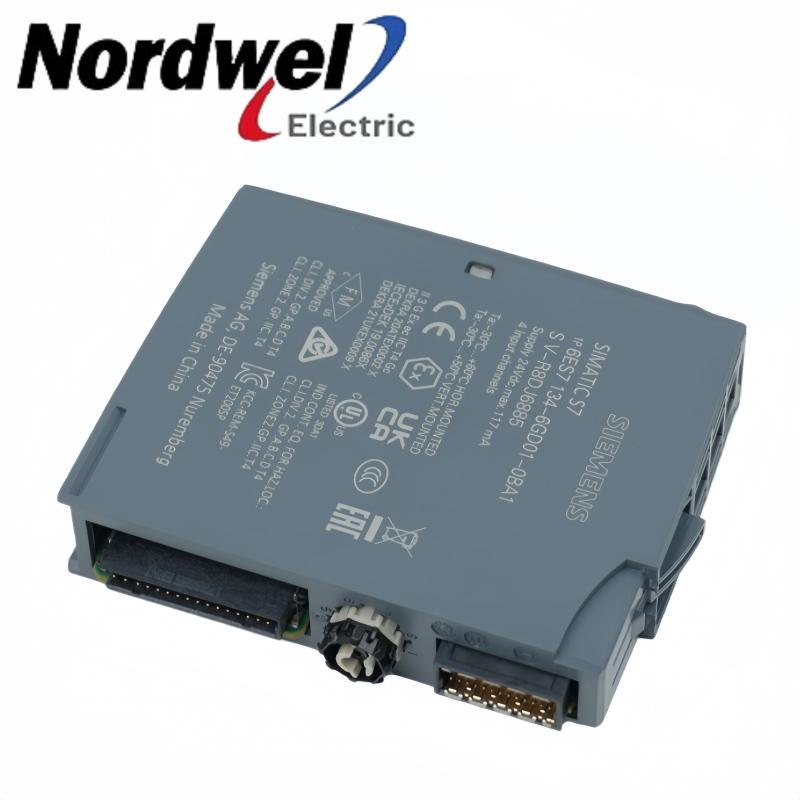

Siemens 6ES7134-6GD01-0BA1 Analog Input Module
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
Siemens |
|
Part number |
6ES7134-6GD01-0BA1 |
|
Description |
Siemens 6ES7134-6GD01-0BA1 Analog Input Module |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed 6ES7134-6GD01-0BA1 in stock!!!
Core Functions
Analog Signal Input – Collects analog current signals from field devices and sends data to the PLC system.
4-Channel Measurement – Provides 4 analog input channels for connecting multiple sensors or transmitters.
Current Signal Reading – Supports 2-wire and 4-wire current transducers with adjustable measurement type per channel.
Signal Range Support – Measures 0–20 mA and 4–20 mA input signals with 15-bit resolution.
Module Diagnostics – Provides channel and module diagnostic functions through LED indicators.
Selection Guide
Choose for Analog Current Input – Suitable when collecting current signals from sensors, transmitters, and field devices in automation systems.
Select 4-Channel Input Option – Provides 4 analog input channels for connecting multiple measurement devices.
Check Sensor Type – Supports 2-wire and 4-wire current transducers, making it suitable for different field wiring methods.
Confirm Signal Range – Suitable for applications using 0–20 mA and 4–20 mA current signals.
Match ET 200SP System – Used as an analog input module in the SIMATIC ET 200SP distributed I/O system.
Select Correct Base Unit – Compatible with BU type A0 and A1 base units.
Consider Resolution Requirement – Choose this module when 16-bit analog measurement resolution is needed.
Check Diagnostic Needs – Built-in module diagnostics help with signal and device status checking.
Software Compatibility – Suitable for projects configured with STEP 7 / TIA Portal engineering tools.
Use for Factory Measurement Tasks – A good choice for monitoring process values such as pressure, flow, temperature transmitters, and other analog signals.
Communication Interfaces
Backplane Communication – Connects with the SIMATIC ET 200SP station through the backplane bus for data exchange with the PLC system.
PROFINET / PROFIBUS Connection via Interface Module – Communication with the control system is handled through the ET 200SP interface module, such as PROFINET or PROFIBUS communication modules.
Analog Channel Connection – Provides 4 analog input channels for connecting 2-wire and 4-wire current transmitters.
Current Signal Input – Supports 4–20 mA and other current measurement signals from field sensors and transmitters.
PLC Data Transfer – Converts collected analog signals into digital values and transfers them to the controller through the ET 200SP system bus.
Applications
Factory Automation: Used for collecting current signals from sensors and transmitters to monitor process data on production lines.
Machine Building: Helps machines read pressure, flow, and other analog values for control and adjustment.
Process Industry: Applied in systems that need continuous measurement of field signals in chemical, energy, and manufacturing plants.
Water Treatment: Used for signal monitoring from pumps, valves, and measurement devices in water control systems.
|
