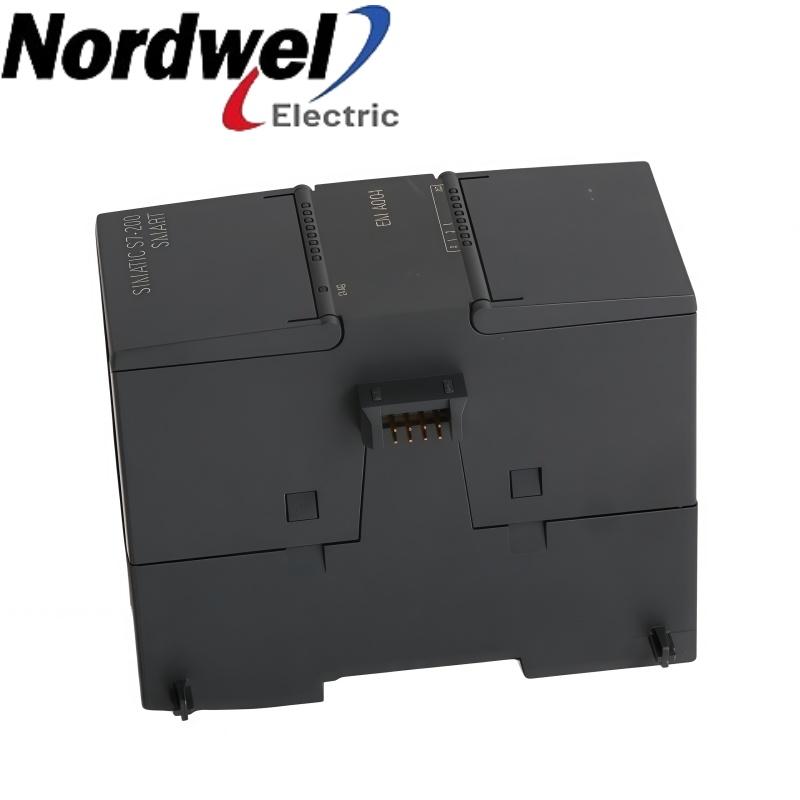

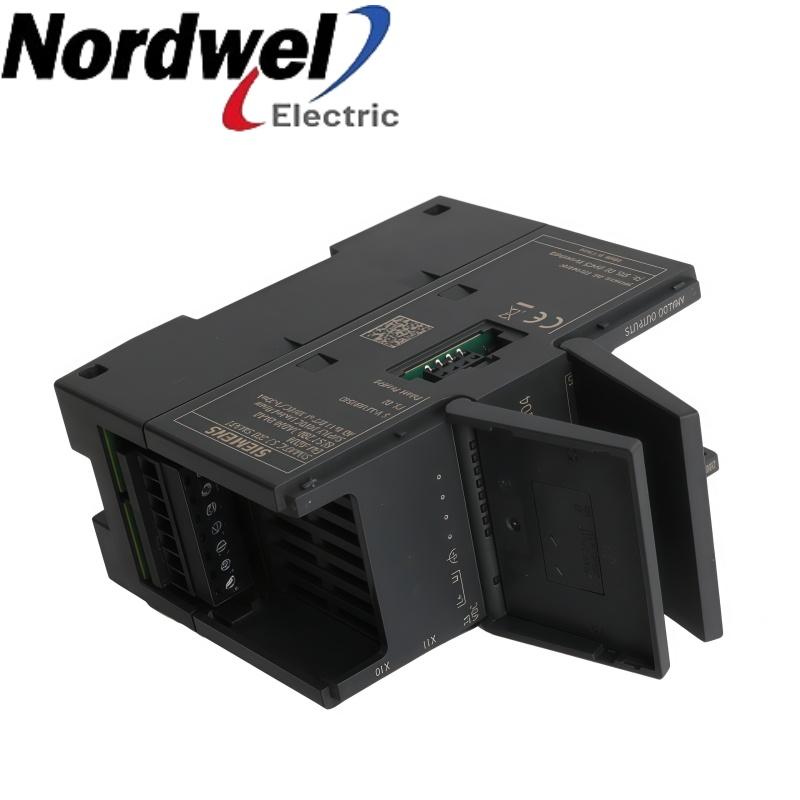

A four-channel voltage/current output module for applications requiring more analog command points without increasing module width.
Brand:
SIEMENSItem NO.:
6ES7288-3AQ04-0AA0Part Number:
6ES7288-3AQ04-0AA0Weight:
170.5 gDimensions:
45 × 100 × 81 mmCertification:
CE; IP20Description:

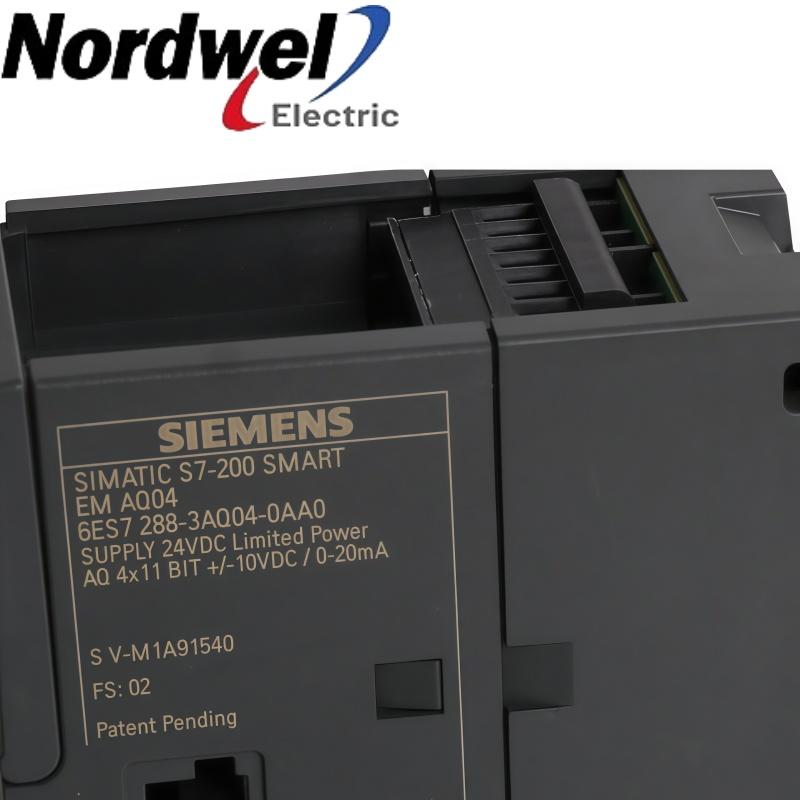

A four-channel voltage/current output module for applications requiring more analog command points without increasing module width.Siemens identifies 6ES7288-3AQ04-0AA0 as the SIMATIC S7-200 SMART SM AQ04 / AQ 4 × Voltage or Current. A four-channel voltage/current output module for applications requiring more analog command points without increasing module width.
Published S7-200 SMART analog input and analog output choices.
Mixed and output-only digital expansion modules for complementary field signals.
Additional digital input and relay-output options published on Nordwel.
Published standard S7-200 SMART CPUs for systems requiring expansion modules.
Selected ABB control, I/O and measurement products already published on Nordwel.
Selected Honeywell controller, IOTA and Safety Manager products published on Nordwel.
Selected GE turbine-control, communication and I/O products published on Nordwel.
Square D belongs to Schneider Electric; these linked Schneider products are already published on Nordwel.
Selected Bently Nevada 330904 NSv proximity probes with verified Nordwel contact details.
Selected Vibro-Meter proximity and vibration sensor products published on Nordwel.
Selected Bently Nevada 330904 and 330905 NSv proximity probes with verified Nordwel contact details.
Selected Bently Nevada 330905, 330910 and 3500 system products with verified Nordwel contact details.
Use the exact Siemens order number and verify the system constraints before procurement.
Document signal mode, full-scale value and fail-safe expectation for each output.
Keep voltage and current receivers inside the official resistance limits.
Select shutdown, last-value retention or a substitute output based on process safety.
Reserve up to 155 mA at 24 V DC when all four channels deliver 20 mA.
Selected specialist-brand products requested for regional projects and available on Nordwel.
Auxiliary relay option for protection and control applications.
Recent Middle East inquirySIMATIC S7-200 SMART RS485 communication board.
Recent Middle East inquiryRemote I/O gateway for demanding process-system environments.
Specialist brandReplacement inverter driver board for installed industrial systems.
Specialist brandAmplifier transducer for load-cell signal conditioning.
Specialist brandIndustrial power-supply model for legacy equipment support.
Specialist brandAnswers below use Siemens official product documentation for this exact order number.
It has four analog outputs and no analog inputs.
Yes. The supported ranges are ±10 V and 0–20 mA.
The exact data sheet identifies an 11-bit output profile for this four-channel module.
The receiving load impedance must be at least 1 kΩ.
Siemens specifies a maximum of 500 Ω for current output.
The system manual lists 155 mA when all four channels carry a 20 mA load; no-load demand is 75 mA.
Yes. Documented choices include shutdown, keeping the last value or using a substitute value.
SM AQ04 measures 45 × 100 × 81 mm, weighs about 170.5 g and consumes 2.1 W with no load.
