Part Number:
2198-CAPMOD-2240Weight:
3.3 kgDimensions:
23x22.5x4cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

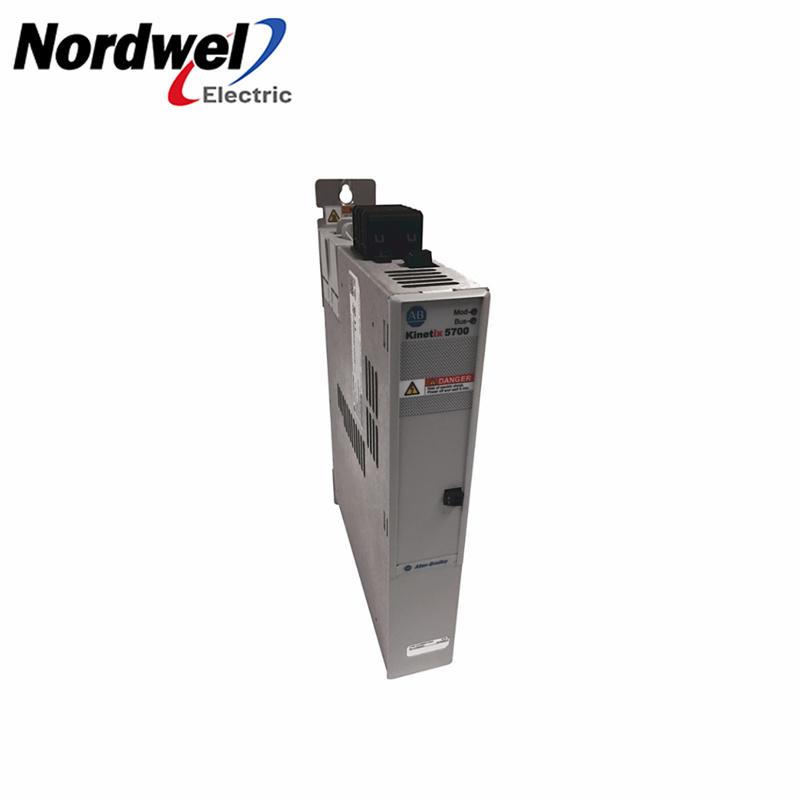

Capacitor moduleThe 2198-CAPMOD-2240’s main intended functions include increase of energy storage and extension of the DC Bus voltage to another inverter system and as an additional connection point for an active external shunt module. This module may also be used in systems with up to 104 Amperes external DC Bus current or connected in parallel with another accessory module. This module supports the Kinetix 5700 zero stacking design as it maintains the Zero stack tab which latches to the adjacent module to the left, to implement sharded-bus drive configuration. The mounting clearance required by the 2198-CAPMOD-2240 is 29.5 mm (1.16 in) for cover and DC Bus cabling, 115 mm (4.53 in.) above the module and 100 mm (3.94 in.) before the module. For bus extension, the 2198-CAPMOD-2240 is installed as the last module of cluster 1, before the 2198-DCBUSCOND-RP312 DC-bus Conditioner Module then, the 2198-CAPMOD-2240 is installed after the 2198-DCBUSCOND-RP312 DC-bus Cond
