Bently Nevada 330101-00-40-05-02-00 Unarmored proximity probe product image

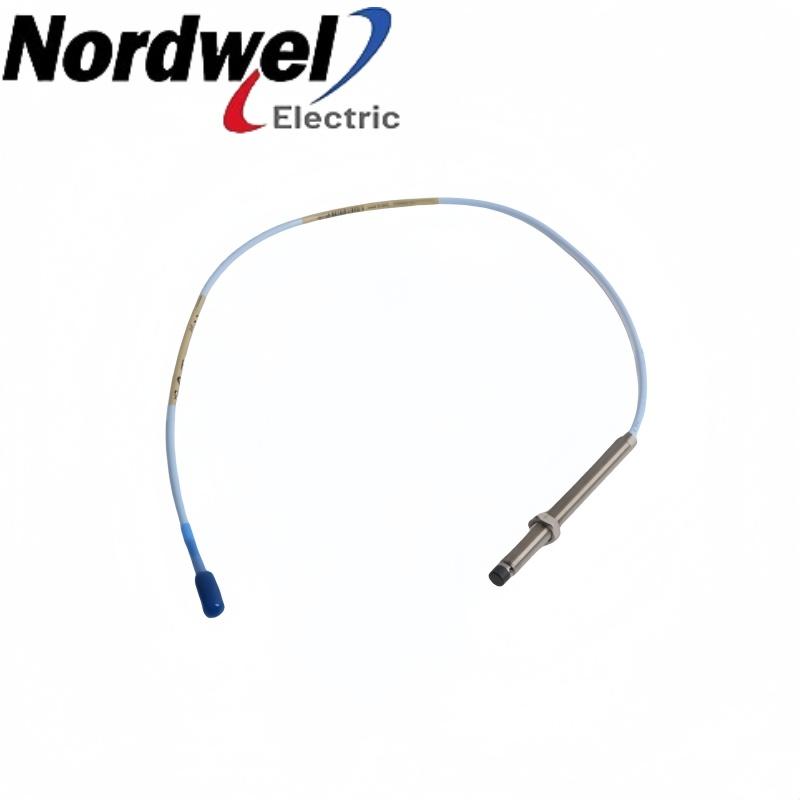

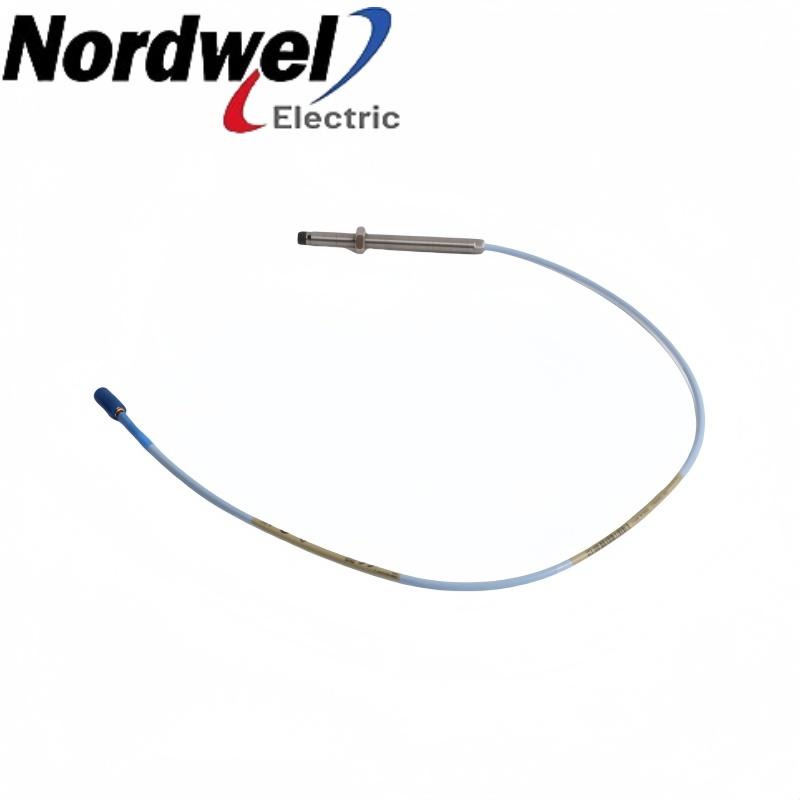

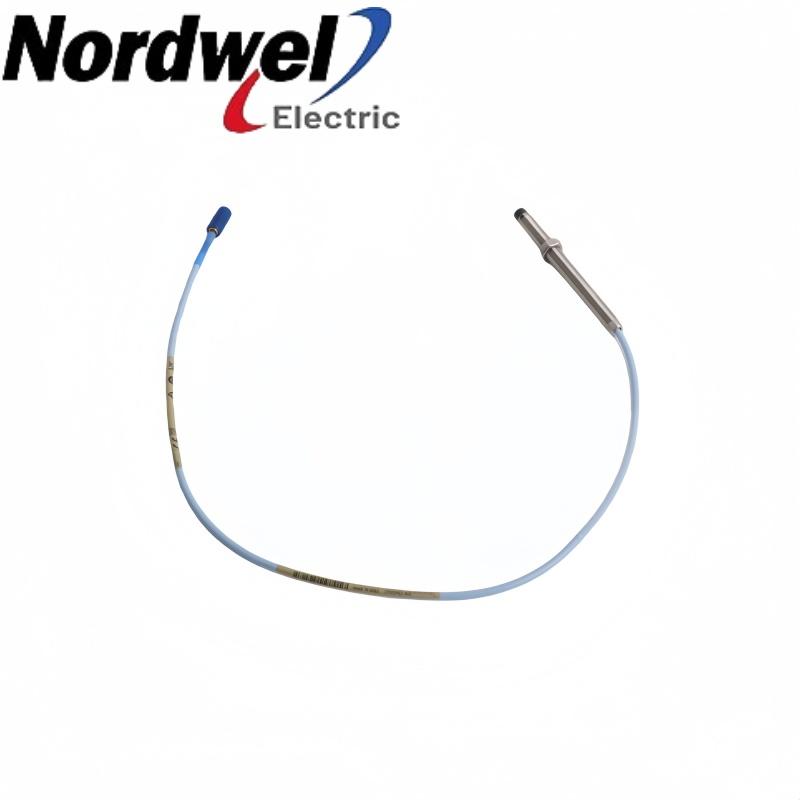

Bently Nevada 330101-00-40-05-02-00 Unarmored proximity probe

EMAIL SALES

3300 XL 8 mm

330101-00-40-05-02-00 — Unarmored proximity probe

A 4.0 in case provides the selected 3/8-24 UNF mounting arrangement. The 0.5 m lead remains part of the matched electrical length.

Bently Nevada3300 XL 8 mm8 mm3/8-24 UNF; 0.5 m lead

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

330101-00-40-05-02-00 product profile

ManufacturerBently Nevada

Exact model330101-00-40-05-02-00

Product typeUnarmored proximity probe

Product family3300 XL 8 mm

Primary roleRelative shaft displacement

Interface context3/8-24 UNF; 0.5 m lead

Brand:
Bently Nevada
Item NO.:
330101-00-40-05-02-0
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

330101-00-40-05-02-00 configuration inquiry

Get a precise quote for 330101-00-40-05-02-00

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

Unarmored proximity probe configuration

The unarmored 3/8-24 UNF arrangement is selected for its mechanical fit as well as its electrical length. Its 0.0 in unthreaded option and 4.0 in overall case must be matched to the bracket or housing before the calibrated signal chain is assembled.

Radial measurementNon-contact relative shaft vibration in a correctly configured chain.

Axial positionStatic gap and position observation against a conductive surface.

Mechanical fit4.0 in case with 3/8-24 UNF thread and 0.0 in unthreaded option.

Signal-chain matching0.5 m probe length is included in the selected total system length.

Engineering selection points

Standard matched-system calibration is referenced to an AISI 4140 steel target.
Probe, extension and signal conditioner must be selected as a compatible electrical-length combination.
Protect the unarmored lead from crushing, sharp edges and incompatible routing.

Official product data

330101-00-40-05-02-00 key specifications

Probe tip	8 mm
Case thread	3/8-24 UNF
Unthreaded length	0.0 in
Overall case length	4.0 in
Integral / total probe length	0.5 m
Cable construction	Unarmored; standard cable
Connection	Miniature coaxial ClickLoc; no connector protector
Approval option	00 — no hazardous-area approval option

Bently Nevada 141194, Rev. AN.

Pre-order check 01

Installation environment

Check the mounting, connection and operating conditions for this exact configuration before installation.

Match the 3/8-24 UNF mounting and leave clearance for the 4.0 in case.
Route the 0.5 m lead without splicing or pinching it.
Seat the locking coaxial connection by hand and protect the mating joint.
Set and verify the initial gap against the installed conductive target.

Record the installed arrangement and the final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete item to its field interface, mechanical arrangement and configured system.

Mechanical arrangement: 3/8-24 UNF thread; 4.0 in case; 0.0 in unthreaded length.
Cable and joint: Unarmored standard lead with option 02 locking coaxial connector.
Electrical length: Include the 0.5 m probe length when selecting the matched extension and conditioner.
Target and calibration: Check the target material and the calibration applicable to the installed chain.
Approval and commissioning: Match option 00 to the supplied markings and verify the final gap and monitor response.

Final selection depends on the mechanical fit, complete electrical length, target material and supplied approval markings.
