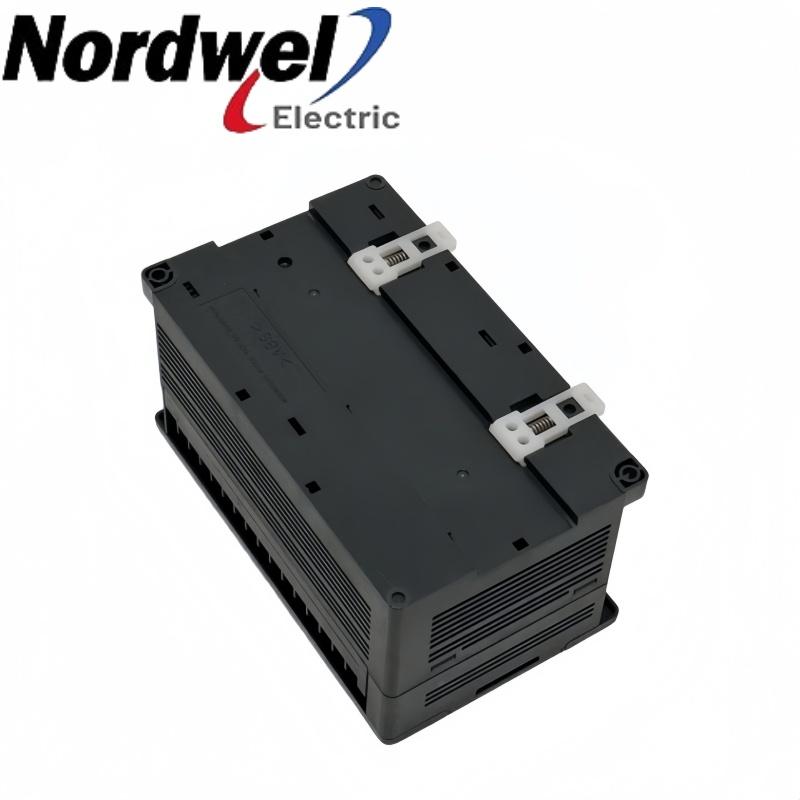

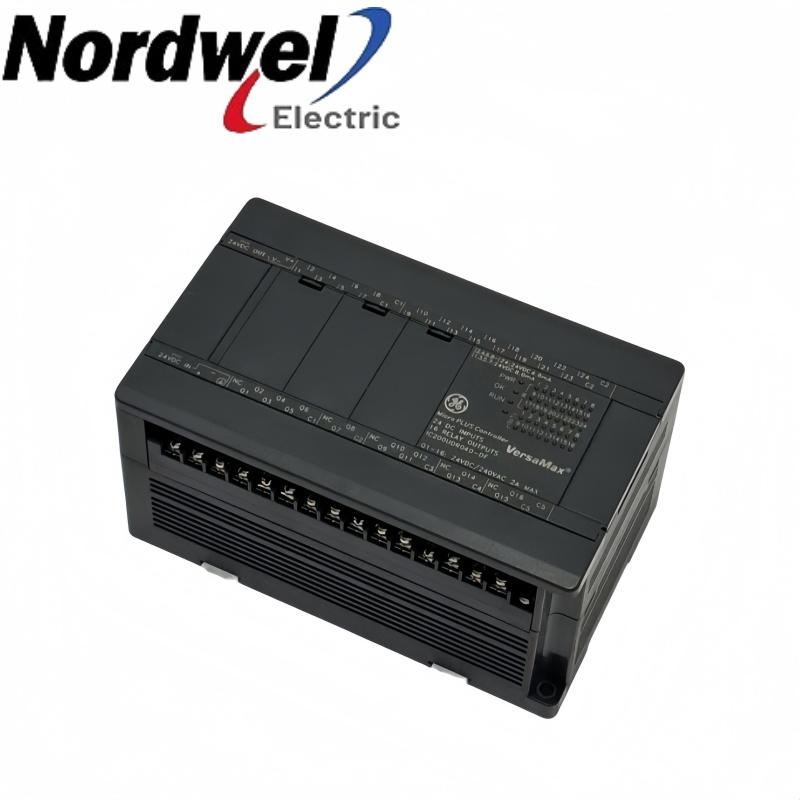

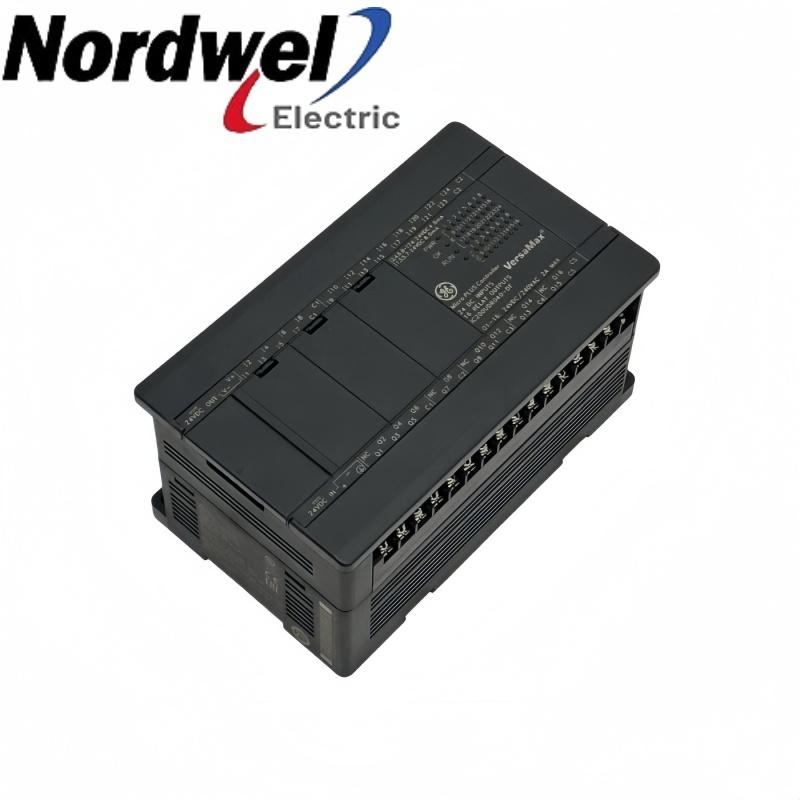

General Electric IC200UDR040 40-point DC-powered relay-output micro controller product image

General Electric IC200UDR040 40-point DC-powered relay-output micro controller

EMAIL SALES

General Electric VersaMax Micro 40-point

IC200UDR040 - 40-point DC-powered relay-output micro controller

IC200UDR040 combines 24 DC inputs with 16 relay outputs. Its 24 V DC CPU supply is separate from field-load power.

General ElectricVersaMax Micro 40-point24 V DCRelay outputs

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UDR040 product profile

ManufacturerGeneral Electric

Exact modelIC200UDR040

Product type40-point relay controller

Product familyVersaMax Micro 40-point

Primary roleLocal discrete logic execution

Interface context24 V DC CPU power

Brand:
General Electric
Item NO.:
IC200UDR040
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

IC200UDR040 configuration inquiry

Get a precise quote for IC200UDR040

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UDR040 function and field interfaces

IC200UDR040 combines 24 nominal 24 V DC inputs with 16 normally open relay outputs. The CPU uses a 24 V DC supply; relay field loads require their own correctly grouped AC or DC supply. A built-in RS-232 port provides serial programming and communications, while a second interface is optional.

Discrete input acquisitionRead 24 nominal 24 V DC input signals with the configured input/common arrangement.

Field-load switchingSwitch separately supplied loads through 16 normally open relay contacts.

Program executionExecute the application in the 40-point Micro controller while preserving the installed configuration.

Serial communicationUse native RS-232 and check the fitted option before specifying a second interface.

Installation and selection boundaries

The CPU supply, nominal DC input signals and externally powered field loads are separate electrical functions.
Preserve the terminal/common allocation and the installed application configuration during replacement.
Relay contacts cannot be assigned pulse-train or PWM output operation.

Official product data

IC200UDR040 key specifications

CPU power	24 V DC nominal; 19.2-30 V DC
Discrete inputs	24 nominal 24 V DC inputs
Discrete outputs	16 normally open Form A relay contacts
Relay resistive load	2 A per point at 24 V DC or 240 V AC
Program storage	24K words
Register storage	32K words
Built-in port	RS-232 with RJ45 connector
Input counting	Up to 100 kHz on configured high-speed inputs
Expansion capacity	Up to four supported Micro expansion units

Emerson GFK-1645M, sections 7.1 and 7.6; chapter 15 installation requirements.

Pre-order check 01

Installation environment

Provide a grounded, ventilated installation and keep each field circuit matched to its terminal function.

Mount on a vertical surface in an appropriate enclosure; allow approximately 50 mm ventilation space and prevent condensation.
Identify the 24 V DC CPU power terminals separately from field input and output circuits.
Keep external relay-load supplies and output commons identified; distinguish Q1 where fitted.
Isolate power before changing expansion connections, preserve keyed orientation and coordinate host/expansion startup.

Keep the installed wiring and configuration record available for controlled restart checks.

Pre-order check 02

Compatibility confirmation

Check identity, power, field circuits and the actual host or controller configuration together.

Complete identity: IC200UDR040; match the required hardware revision.
Power arrangement: 24 V DC nominal CPU power; field circuits have separate requirements.
Input devices: 24 nominal 24 V DC input circuits; preserve the assigned commons and field-device wiring.
Output circuits: 16 normally open relay contacts; check individual and common-circuit loading.
Host / configuration: Restore the approved logic and configuration; match serial options, expansion allocation and hardware/firmware revision.

IC200UDR040 combines 24 nominal 24 V DC inputs with 16 normally open relay outputs. Keep the full model and actual terminal configuration matched before energizing.
