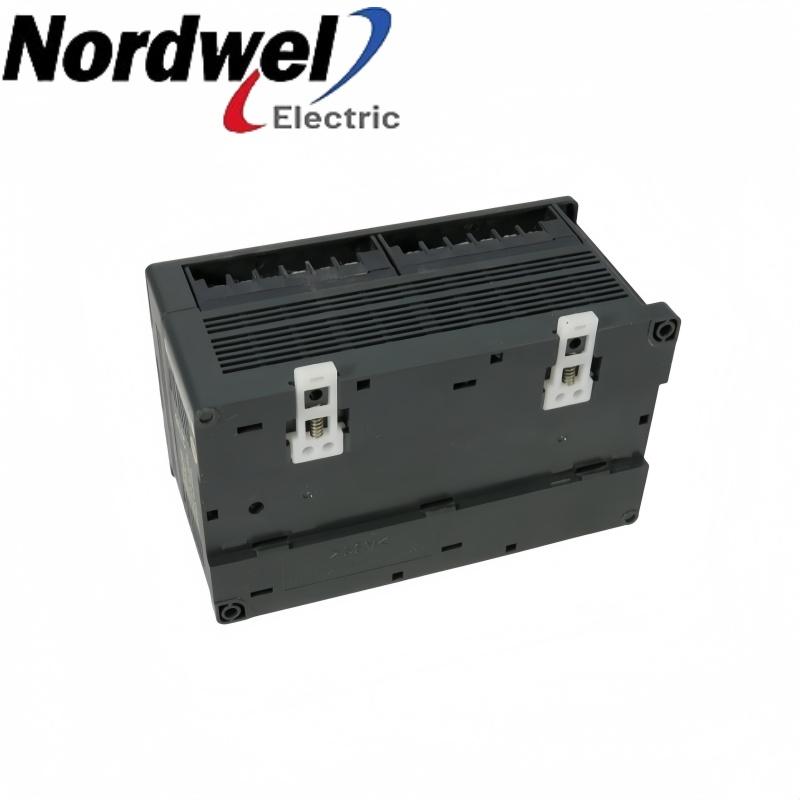

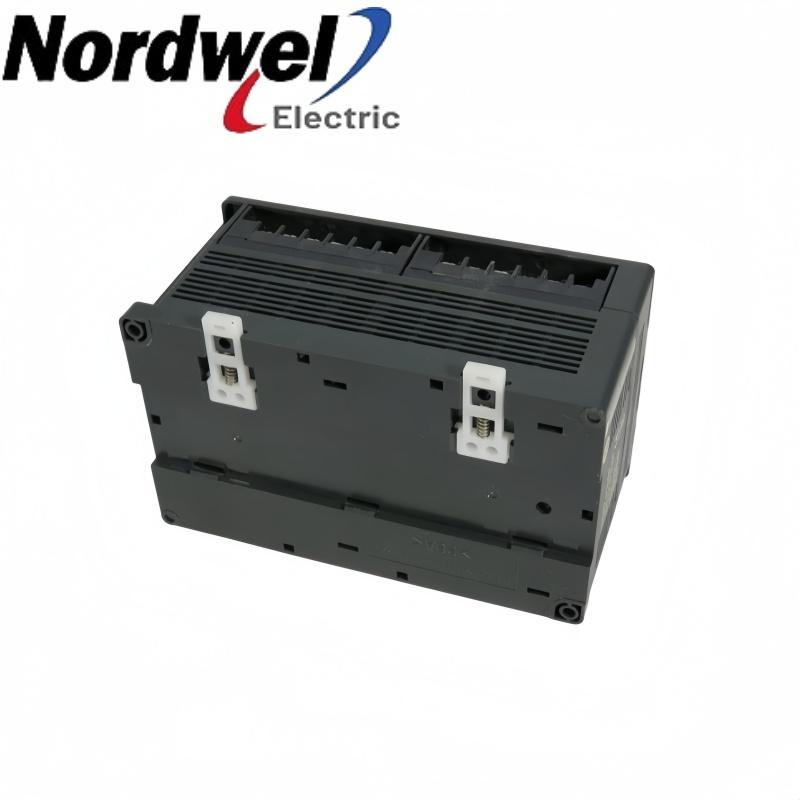

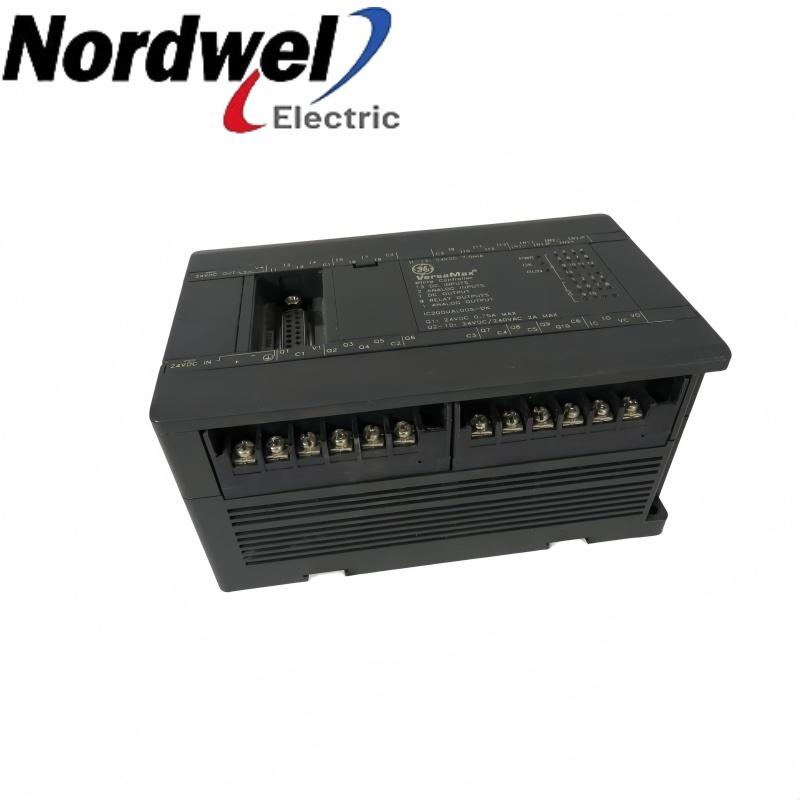

General Electric IC200UAL005 24 VDC mixed-output analog controller product images

General Electric IC200UAL005 24 VDC mixed-output analog controller

EMAIL SALES

VersaMax Micro 23-point

IC200UAL005 — 24 VDC mixed-output analog controller

IC200UAL005 combines a 24 VDC CPU with digital and analog I/O for machine control. Nine relay outputs and one transistor output switch field loads.

General ElectricVersaMax Micro 23-point9 relays plus transistor Q124 V DC supply and input circuits

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UAL005 product profile

ManufacturerGeneral Electric

Exact modelIC200UAL005

Product type24 VDC mixed-output analog controller

Product familyVersaMax Micro 23-point

Primary roleAnalog and discrete load control

Interface context24 V DC supply and input circuits

Brand:
General Electric
Item NO.:
IC200UAL005
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

IC200UAL005 configuration inquiry

Get a precise quote for IC200UAL005

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

24 VDC mixed-output analog controller configuration

IC200UAL005 uses a nominal 24 V DC CPU supply and thirteen 24 V DC inputs. Its output mix is nine normally open relays, one positive-logic transistor output and one analog output, with two differential analog inputs. Q1 and the relay contacts must be selected and wired for their different electrical functions.

Discrete input processingReads the configured 24 V input states from switches and sensors.

Relay load switchingControls compatible externally powered loads through nine normally open contacts.

Transistor output controlUses Q1 for a selected standard, counter, pulse-train or PWM output function.

Analog loop handlingCombines two configured measurement inputs with one voltage/current command output.

Engineering selection points

Q1 is not a tenth relay: its positive-logic transistor circuit has a different supply and load rating.
The relay outputs cannot be used as pulse-train or PWM outputs, even when a counter controls their state.
Two differential analog inputs and the single-ended output are non-isolated and need compatible references.

Official product data

IC200UAL005 key specifications

CPU supply	24 V DC nominal; 19.2-30 V DC
Discrete inputs	13 nominal 24 V DC inputs
Discrete outputs	9 Form A relays plus 1 DC transistor output
Relay resistive-load rating	2 A at 24 V DC or 240 V AC
Analog channels	2 differential inputs and 1 single-ended output
Analog ranges	0-10 V, 0-20 mA or 4-20 mA
Q1 output logic	Positive logic
Q1 pulse/PWM frequency	5 kHz maximum
Auxiliary supply	24 V DC, 200 mA maximum combined input/device load

Emerson GFK-1645M, sections 5.1-5.3.1, 5.5-5.5.6 and chapter 15.

Pre-order check 01

Installation environment

Check the mounting, connection and operating conditions for this exact configuration before installation.

Use the specified 24 V DC CPU supply and account for startup transient demand.
Identify Q1 external DC power separately from relay-load supplies and the analog circuit.
Install the input jumpers and voltage/current configuration required by each analog signal.
Power down for expansion or terminal work, preserve grounding and leave the recommended ventilation space.

Record the installed arrangement and the final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete item to its field interface, mechanical arrangement and configured system.

Exact configuration: Match IC200UAL005, the installed revision and the 24 V supply/input circuits.
Q1 load: Use the transistor output rating appropriate to its actual external load voltage.
Relay circuits: Match the nine relay contacts to the external load supply and protection.
Analog signal path: Keep range, signal polarity, input jumpers and reference wiring consistent with the instruments.
Communications: Match RS-232/RS-485 cabling and protocol; check firmware before using port 2 RTU master operation.

Keep the Q1 transistor circuit, nine relay loads and analog signal references distinct on IC200UAL005.
