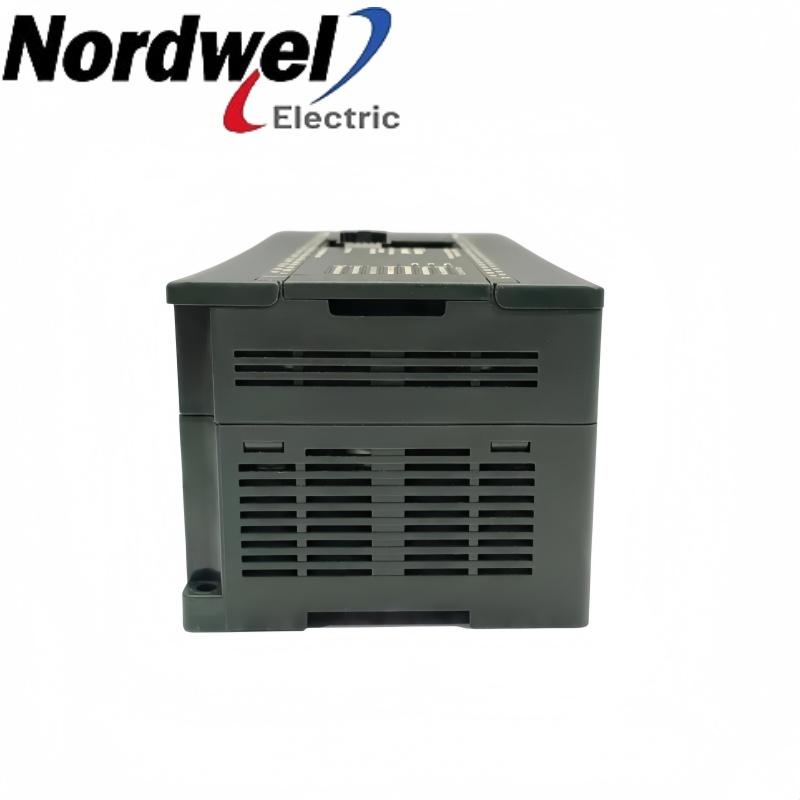

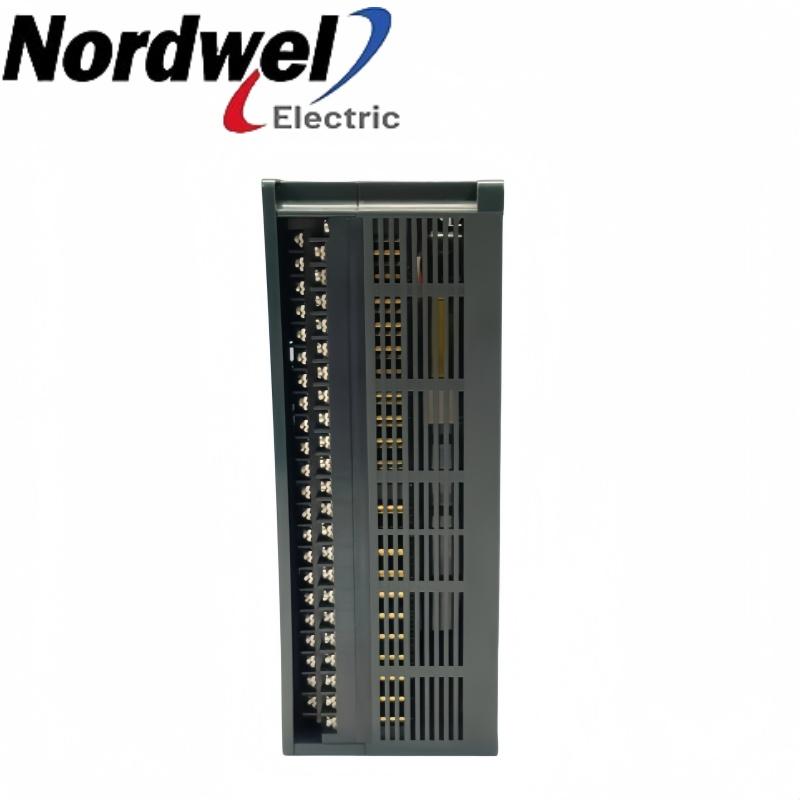

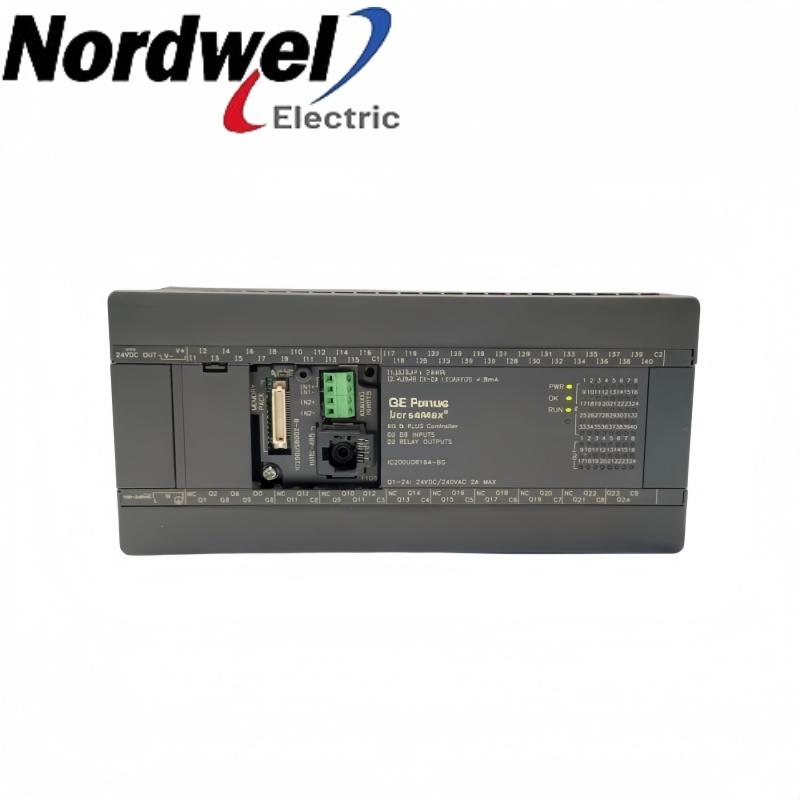

General Electric IC200UDR164 64-point AC-powered relay-output micro controller product image

General Electric IC200UDR164 64-point AC-powered relay-output micro controller

EMAIL SALES

General Electric VersaMax Micro 64-point

IC200UDR164 - 64-point AC-powered relay-output micro controller

IC200UDR164 combines 40 DC inputs with 24 relay outputs. Its 100-240 V AC CPU supply is separate from field-load power.

General ElectricVersaMax Micro 64-point100-240 V ACRelay outputs

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UDR164 product profile

ManufacturerGeneral Electric

Exact modelIC200UDR164

Product type64-point relay controller

Product familyVersaMax Micro 64-point

Primary roleLocal discrete logic execution

Interface context100-240 V AC CPU power

Brand:
General Electric
Item NO.:
IC200UDR164
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

IC200UDR164 configuration inquiry

Get a precise quote for IC200UDR164

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UDR164 function and field interfaces

IC200UDR164 combines an AC-powered CPU with 40 nominal 24 V DC inputs and 24 relay outputs. It is intended for higher-point-count discrete machine control with supported serial and expansion arrangements. The field-load supply and output-common loading remain separate from the CPU mains input.

Discrete input acquisitionRead 40 nominal 24 V DC input signals with the configured input/common arrangement.

Field-load switchingSwitch separately supplied loads through 24 normally open relay contacts.

Program executionExecute the application in the 64-point Micro controller while preserving the installed configuration.

Serial communicationUse native RS-232 and check the fitted option before specifying a second interface.

Installation and selection boundaries

The CPU supply, nominal DC input signals and externally powered field loads are separate electrical functions.
Preserve the terminal/common allocation and the installed application configuration during replacement.
Relay contacts cannot be assigned pulse-train or PWM output operation.

Official product data

IC200UDR164 key specifications

CPU supply requirement	100-240 V AC nominal
Input configuration	40 nominal 24 V DC input circuits
Relay contact count	24 normally open Form A outputs
Resistive switching limit	2 A per point at 24 V DC or 240 V AC
Program capacity	24K words
Register allocation	32K words
Unit dimensions	195 mm wide x 90 mm high x 76 mm deep
Input/user-device supply	24 V DC, 435 mA maximum combined
Serial port configuration	Built-in RS-232 plus optional second port

Emerson GFK-1645M, sections 8.1-8.3 and 8.7; chapter 15 installation requirements.

Pre-order check 01

Installation environment

Provide a grounded, ventilated installation and keep each field circuit matched to its terminal function.

Mount on a vertical surface in an appropriate enclosure; allow approximately 50 mm ventilation space and prevent condensation.
Identify the 100-240 V AC CPU power terminals separately from field input and output circuits.
Keep external relay-load supplies and output commons identified; distinguish Q1 where fitted.
Isolate power before changing expansion connections, preserve keyed orientation and coordinate host/expansion startup.

Keep the installed wiring and configuration record available for controlled restart checks.

Pre-order check 02

Compatibility confirmation

Check identity, power, field circuits and the actual host or controller configuration together.

Complete identity: IC200UDR164; match the required hardware revision.
Power arrangement: 100-240 V AC nominal CPU power; field circuits have separate requirements.
Input devices: 40 nominal 24 V DC input circuits; preserve the assigned commons and field-device wiring.
Output circuits: 24 normally open relay contacts; check individual and common-circuit loading.
Host / configuration: Restore the approved logic and configuration; match serial options, expansion allocation and hardware/firmware revision.

IC200UDR164 combines an AC-powered CPU with 40 nominal 24 V DC inputs and 24 relay outputs. Keep the full model and actual terminal configuration matched before energizing.
