VersaMax modular I/O

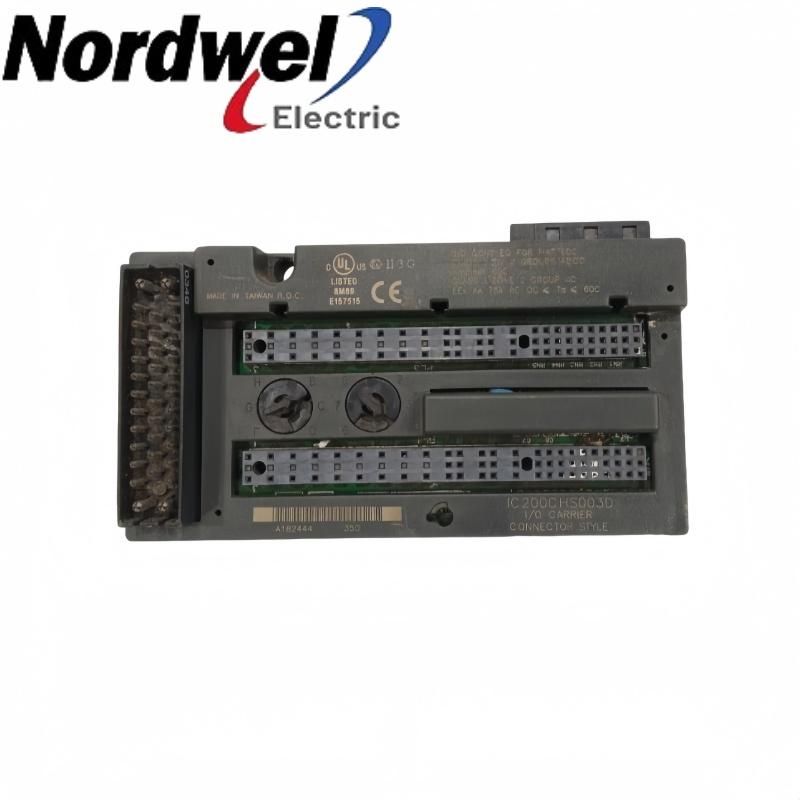

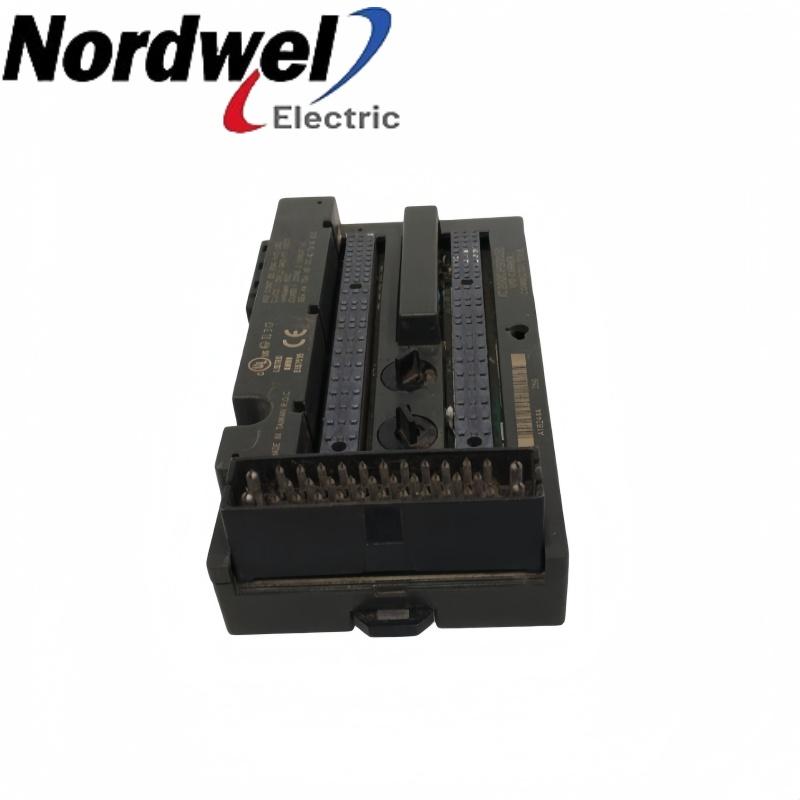

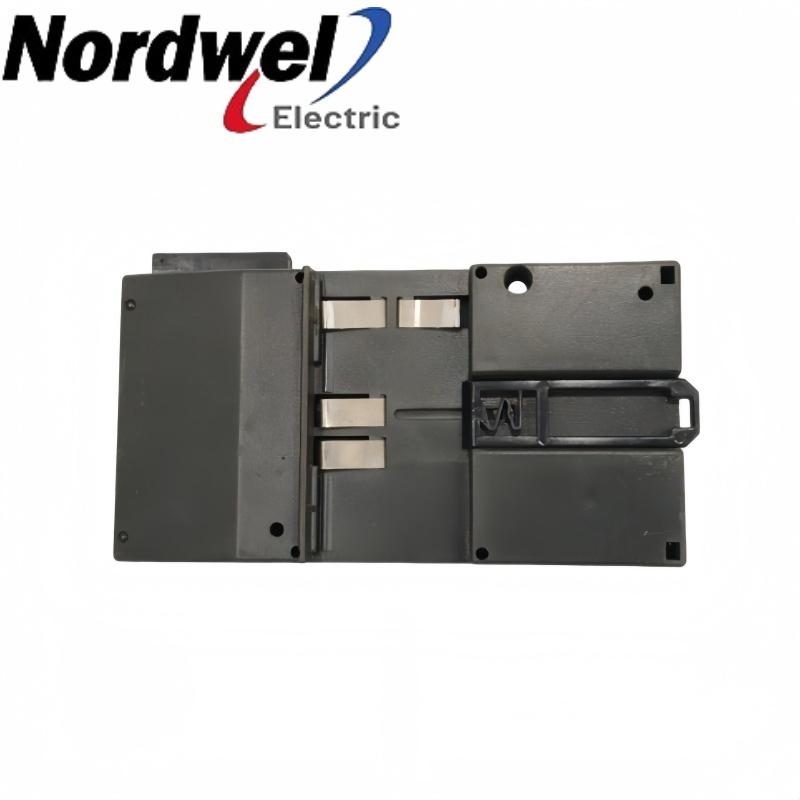

IC200CHS003 — 36-pin connector-style I/O carrier

IC200CHS003 supports one VersaMax I/O module through a 36-pin field-wiring connector. Its carrier also forms the backplane connection.

General ElectricVersaMax modular I/OOne I/O module36-pin field-cable connector

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200CHS003 product profile

ManufacturerGeneral Electric

Exact modelIC200CHS003

Product type36-pin connector-style I/O carrier

Product familyVersaMax modular I/O

Primary roleI/O mounting and field connection

Interface context36-pin field-cable connector

Brand:
General Electric
Item NO.:
IC200CHS003

Inquiry now

IC200CHS003 configuration inquiry

Get a precise quote for IC200CHS003

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

36-pin connector-style I/O carrier configuration

IC200CHS003 provides mounting, backplane communications and field-wiring connection for one compatible VersaMax I/O module. The module is perpendicular to the DIN rail, while the carrier connector accommodates up to 32 I/O connections and four common or power connections. Module isolation requirements remain part of the selection.

Module supportHolds and latches one compatible I/O module in its vertical arrangement.

Backplane continuityMating carrier connectors establish the station backplane connection.

Cable terminationThe field connector connects the module to cabled field terminals.

Mechanical keyingAdjustable keys are set to the matching module type before installation.

Engineering selection points

The carrier is not an I/O signal-processing module; its connection count is not a channel specification for every module.
The DIN rail needs a conductive, corrosion-resistant unpainted finish and an effective ground connection.
High-isolation module exceptions apply even though the mechanical family is VersaMax.

Official product data

IC200CHS003 key specifications

Carrier style	Connector-style I/O carrier
Module positions	One compatible I/O module
Field connector	36 pins
Connection allocation	Up to 32 I/O points plus 4 common/power connections
DIN rail	7.5 x 35 mm
Module orientation	Perpendicular to DIN rail
Current per point	Up to 2 A
Current per power or ground connection	Up to 8 A
Operating voltage capability	Up to 264 V AC

Emerson GFK-1504Q, sections 4.3-4.3.4.

Pre-order check 01

Installation environment

Check the mounting, connection and operating conditions for this exact configuration before installation.

Use a grounded 7.5 x 35 mm DIN rail with a conductive, unpainted corrosion-resistant finish.
Match the keying dials to the I/O module before seating and latching it.
Use additional panel mounting where maximum resistance to mechanical vibration and shock is required.
Use the connector notch to maintain cable orientation and check the engaged cable connection.

Record the installed arrangement and the final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete item to its field interface, mechanical arrangement and configured system.

Carrier identity: Match IC200CHS003 and the connector-style wiring arrangement.
I/O-module isolation: Check the selected module against the carrier compatibility exclusions; high-isolation exceptions apply.
Field cable: Use the correct 36-pin cable arrangement and maintain connector orientation.
Current budget: Respect the separate per-point and power/ground connection current limits.
Mechanical mounting: Retain the perpendicular module orientation, correct keys and secure latch.

Select IC200CHS003 by connector arrangement, module isolation requirements and field-current distribution together.
