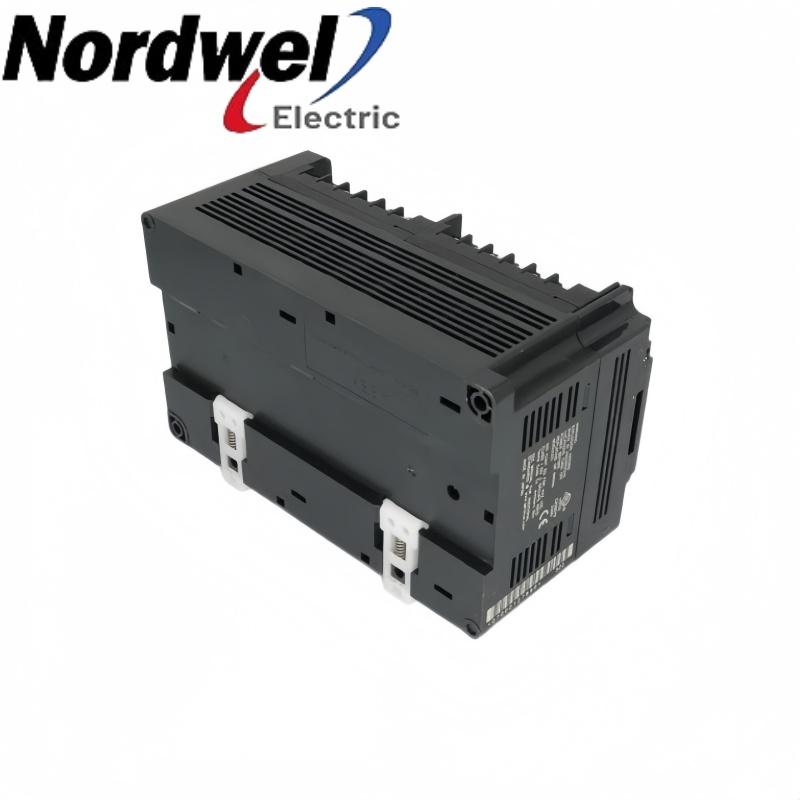

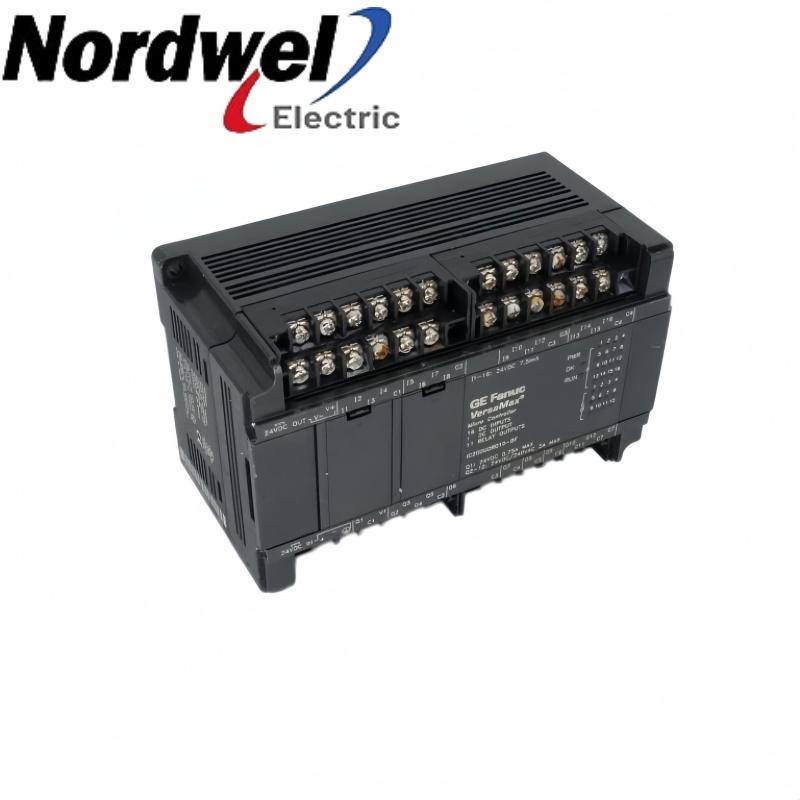

General Electric IC200UDR010 28-point mixed relay/transistor-output micro controller product view

General Electric IC200UDR010 28-point mixed relay/transistor-output micro controller

EMAIL SALES

General Electric VersaMax Micro 28-point

IC200UDR010 - 28-point mixed relay/transistor-output micro controller

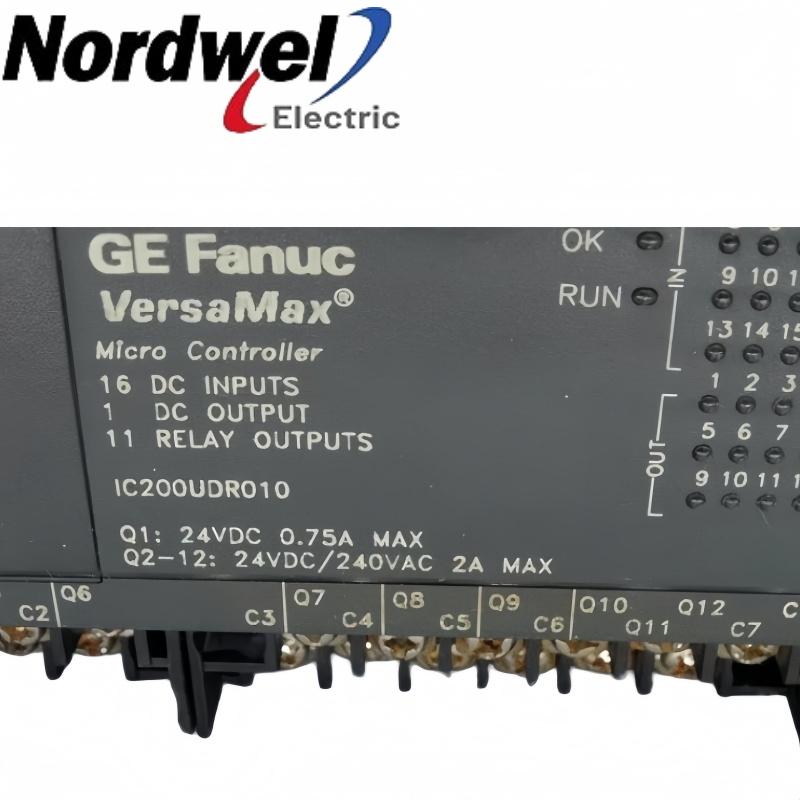

IC200UDR010 provides sixteen 24 V DC inputs, eleven relays and one DC output. Match Q1 separately from the relay-contact wiring.

General ElectricVersaMax Micro 28-point28-point mixed-output controller

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UDR010 product profile

Product familyVersaMax Micro 28-point

Exact modelIC200UDR010

CPU supply24 V DC nominal

Digital inputs16 × 24 V DC

Output arrangement11 normally open relays + Q1 DC output

Serial interfacesRS-232 + RS-485

Brand:
General Electric
Item NO.:
IC200UDR010

Inquiry now

IC200UDR010 configuration inquiry

Get a precise quote for IC200UDR010

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UDR010 functions and interfaces

IC200UDR010 provides 16 nominal 24 V DC input circuits and 11 normally open relays + q1 dc output. The controller electronics use 24 V DC nominal power. External field-load power, output commons and the stored application must be checked separately before replacing an installed unit.

Discrete input processingRead 16 nominal 24 V DC field inputs for the installed application logic.

Field-load commandsOperate the relay circuits and separately configured Q1 transistor output within their own electrical and load limits.

Serial integrationUse the configured RS-232 + RS-485 arrangement for the supported programming and equipment communication paths.

Application retentionRetain the program, I/O assignment and required startup behavior when replacing the controller.

Installation and selection boundaries

Controller supply and switched field-load power are different circuits; keep the approved output-common grouping.
Q1 is a DC transistor output. Only that output can provide pulse-train or PWM operation; the relay contacts cannot.
Back up the installed logic and configuration before de-energizing or exchanging the controller.

Official product data

IC200UDR010 key specifications

CPU power	24 V DC nominal; 19.2-30 V DC
Discrete inputs	16 positive/negative-logic 24 V DC circuits
Discrete outputs	11 normally open relays + Q1 DC output
Relay resistive load	2 A per point at 24 V DC or 240 V AC
Program allocation	9K words
Register allocation	2048 words
Serial arrangement	RS-232 + RS-485
Configured counter-input frequency	10 kHz
Auxiliary field supply	24 V DC, 200 mA maximum; input circuits and user devices combined

Emerson / legacy GE VersaMax Micro User Manual GFK-1645M, printed pages 88-89 and 112-115.

Pre-order check 01

Installation environment

Install the controller with the correct supply, input signal levels and output wiring for this exact catalog identity.

Verify 24 V DC CPU power and the permitted 19.2-30 V DC supply range before connection.
Identify all 16 input circuits as nominal 24 V DC signals; keep their logic commons and polarity consistent.
Isolate external field power and label the output-common groups before removing a terminal assembly.
Restore the saved application, communications and operating mode; test the I/O under the controlled machine-start procedure.

Keep the approved field drawing, application backup and commissioning plan available during installation.

Pre-order check 02

Compatibility confirmation

Match the complete controller identity with the installed wiring, software and communication arrangement.

Exact controller: IC200UDR010; match hardware revision and approved firmware to the installed application.
Supply and field inputs: 24 V DC nominal CPU supply with 16 nominal 24 V DC inputs.
Output hardware: 11 normally open relays + Q1 DC output; verify each field-load supply and common group.
Application resources: 9K words of program allocation and 2048 words of registers; preserve the actual configured I/O map.
Communication path: RS-232 + RS-485; match the actual cable, pinout, protocol and programmer settings.

Confirm IC200UDR010 against CPU power, input levels, output types, serial wiring and the backed-up application.
