Two analog outputs provide the configured voltage or current setpoints. Match the selected mode and load to the connected field device.
Brand:
SIEMENSItem NO.:
6ED1055-1MM00-0BA2Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

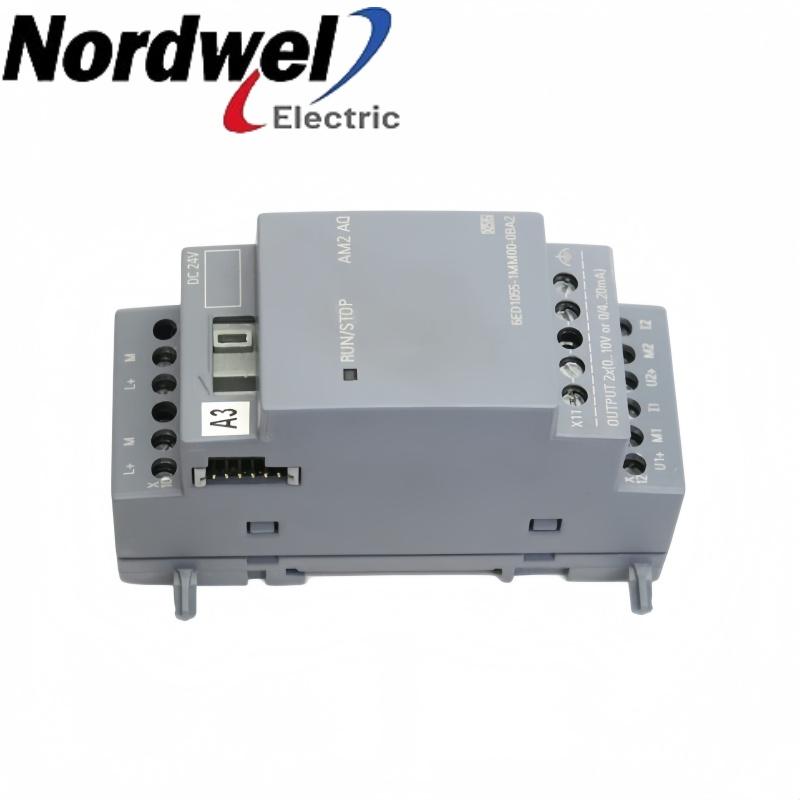

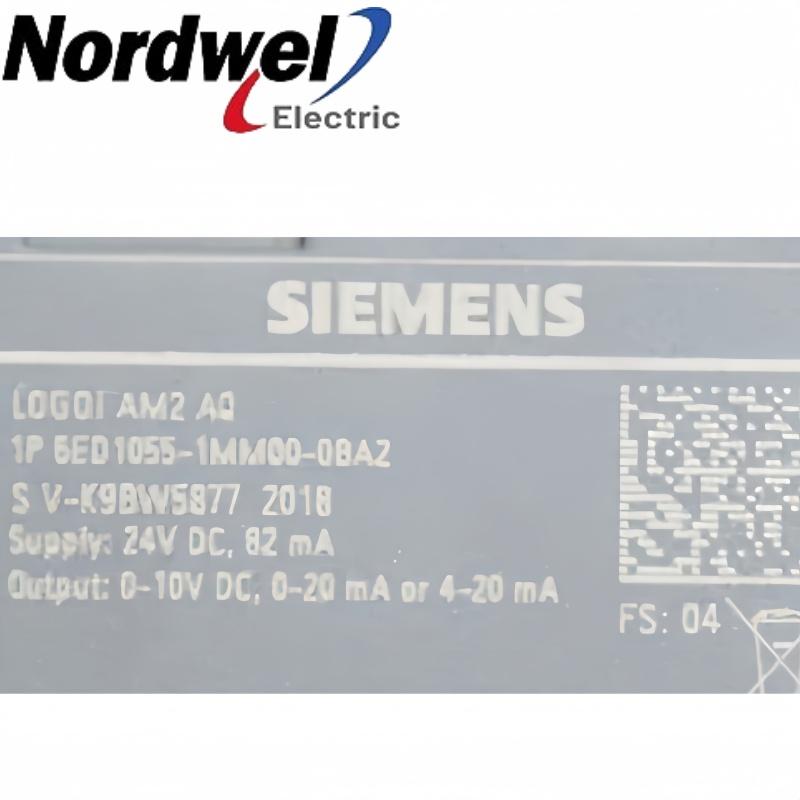

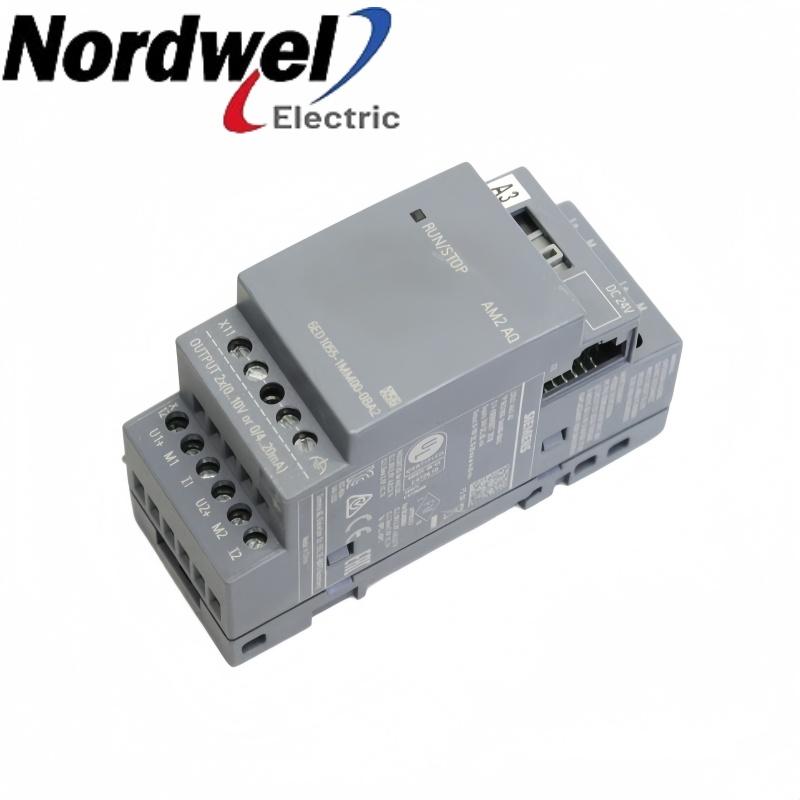

The LOGO! AM2 AQ is a local output expansion supplied at 24 V DC. Its two channels are selected for 0–10 V or 0/4–20 mA, with the application configuration matched to the actual field connection.
| Product designation | LOGO! AM2 AQ |
|---|---|
| Nominal supply | 24 V DC |
| Channel arrangement | 2 analog outputs |
| Signal / sensor range | 0–10 V or 0/4–20 mA |
| Host context | LOGO! 8 expansion |
| Mounting | 35 mm DIN rail |
| Enclosure rating | IP20 |
| Enclosure W × H × D | 35.5 × 90 × 58 mm |
Siemens exact-product technical data.
Check the mounting, connection and operating conditions for this exact configuration before installation.
