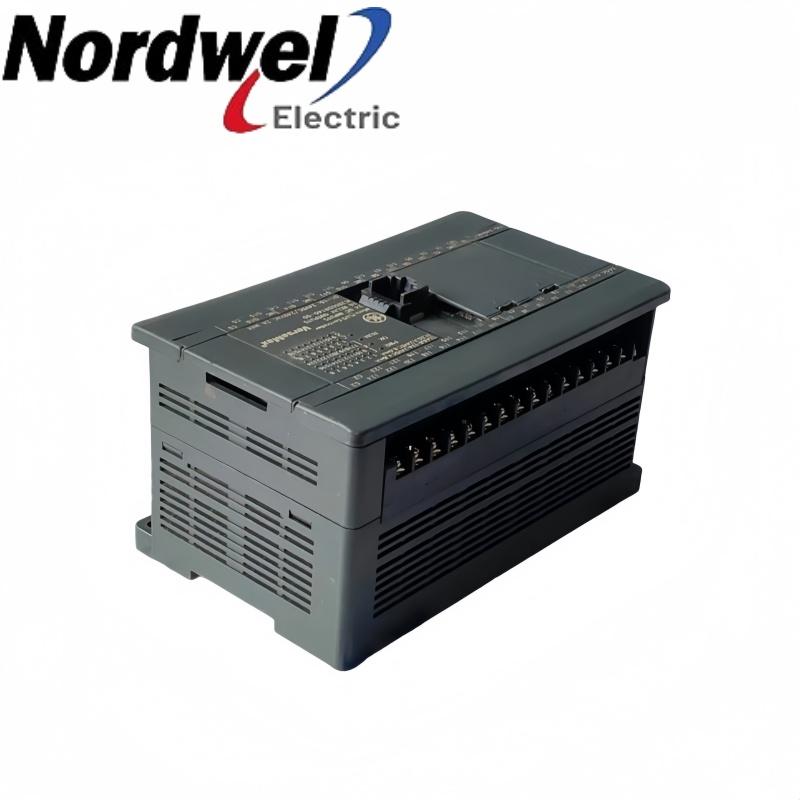

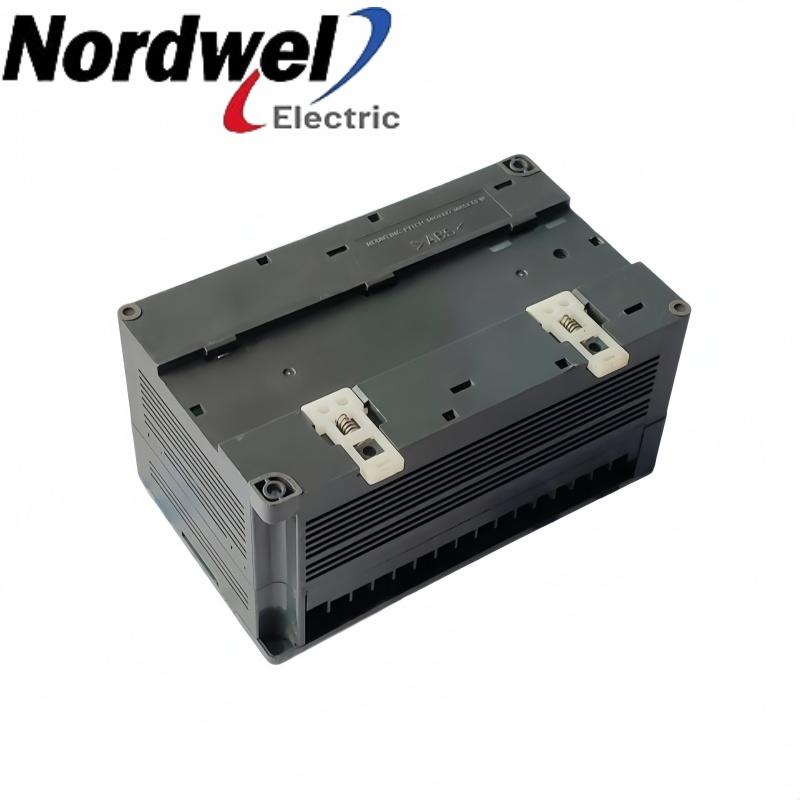

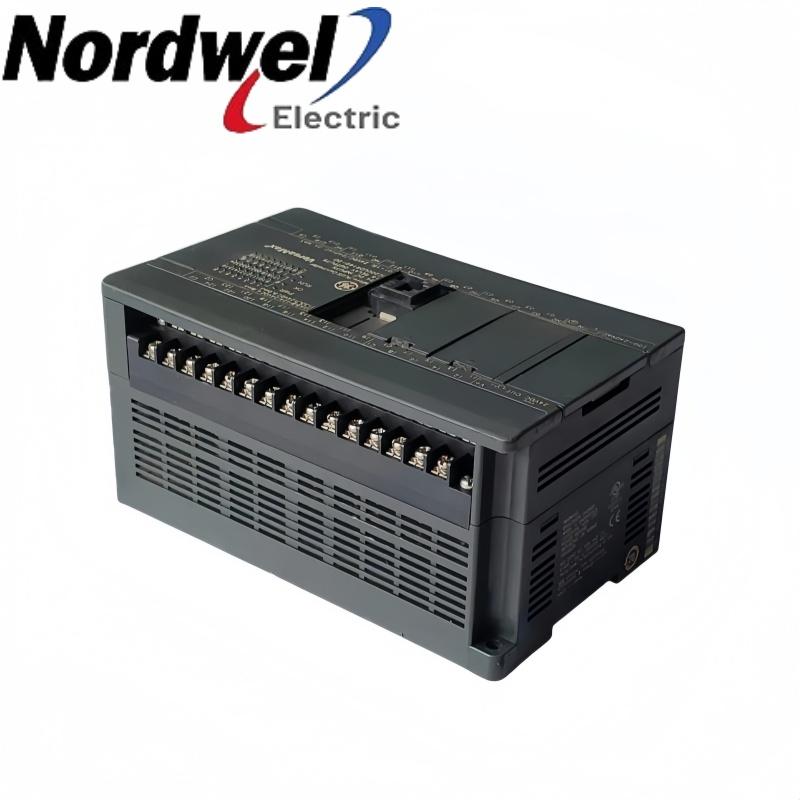

General Electric IC200UDR140 40-point AC-powered relay-output micro controller product image

General Electric IC200UDR140 40-point AC-powered relay-output micro controller

EMAIL SALES

General Electric VersaMax Micro 40-point

IC200UDR140 - 40-point AC-powered relay-output micro controller

IC200UDR140 combines 24 DC inputs with 16 relay outputs. Its 100-240 V AC CPU supply is separate from field-load power.

General ElectricVersaMax Micro 40-point100-240 V ACRelay outputs

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UDR140 product profile

ManufacturerGeneral Electric

Exact modelIC200UDR140

Product type40-point relay controller

Product familyVersaMax Micro 40-point

Primary roleLocal discrete logic execution

Interface context100-240 V AC CPU power

Brand:
General Electric
Item NO.:
IC200UDR140
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

IC200UDR140 configuration inquiry

Get a precise quote for IC200UDR140

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UDR140 function and field interfaces

IC200UDR140 operates from nominal 100-240 V AC and combines 24 DC inputs with 16 relay outputs. The inputs remain nominal 24 V DC, while relay contacts switch separately powered field loads. Its serial connection and optional second port support the configured machine-control arrangement.

Discrete input acquisitionRead 24 nominal 24 V DC input signals with the configured input/common arrangement.

Field-load switchingSwitch separately supplied loads through 16 normally open relay contacts.

Program executionExecute the application in the 40-point Micro controller while preserving the installed configuration.

Serial communicationUse native RS-232 and check the fitted option before specifying a second interface.

Installation and selection boundaries

The CPU supply, nominal DC input signals and externally powered field loads are separate electrical functions.
Preserve the terminal/common allocation and the installed application configuration during replacement.
Relay contacts cannot be assigned pulse-train or PWM output operation.

Official product data

IC200UDR140 key specifications

CPU input power	100-240 V AC nominal
Mains frequency	50 Hz -5% to 60 Hz +5%
Discrete input arrangement	24 positive/negative-logic 24 V DC circuits
Discrete output arrangement	16 normally open Form A relays
Maximum resistive load	2 A per point at 24 V DC or 240 V AC
Sensor-power allowance	435 mA combined input/user-device load
Logic memory	24K words
Register capacity	32K words
Expansion support	Up to four supported Micro units

Emerson GFK-1645M, sections 7.1 and 7.6; chapter 15 installation requirements.

Pre-order check 01

Installation environment

Provide a grounded, ventilated installation and keep each field circuit matched to its terminal function.

Mount on a vertical surface in an appropriate enclosure; allow approximately 50 mm ventilation space and prevent condensation.
Identify the 100-240 V AC CPU power terminals separately from field input and output circuits.
Keep external relay-load supplies and output commons identified; distinguish Q1 where fitted.
Isolate power before changing expansion connections, preserve keyed orientation and coordinate host/expansion startup.

Keep the installed wiring and configuration record available for controlled restart checks.

Pre-order check 02

Compatibility confirmation

Check identity, power, field circuits and the actual host or controller configuration together.

Complete identity: IC200UDR140; match the required hardware revision.
Power arrangement: 100-240 V AC nominal CPU power; field circuits have separate requirements.
Input devices: 24 nominal 24 V DC input circuits; preserve the assigned commons and field-device wiring.
Output circuits: 16 normally open relay contacts; check individual and common-circuit loading.
Host / configuration: Restore the approved logic and configuration; match serial options, expansion allocation and hardware/firmware revision.

IC200UDR140 operates from nominal 100-240 V AC and combines 24 DC inputs with 16 relay outputs. Keep the full model and actual terminal configuration matched before energizing.
