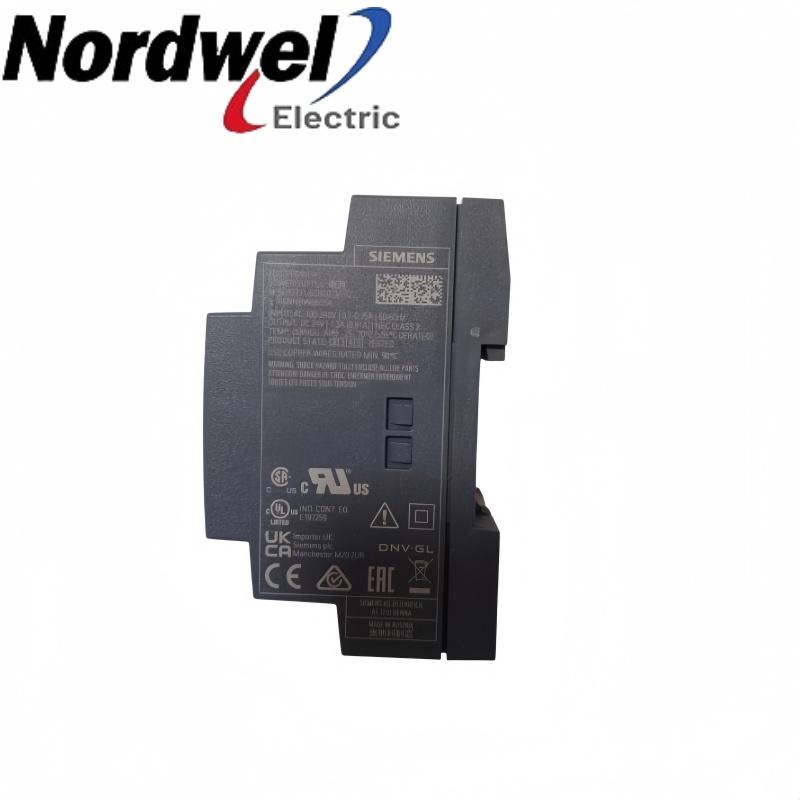

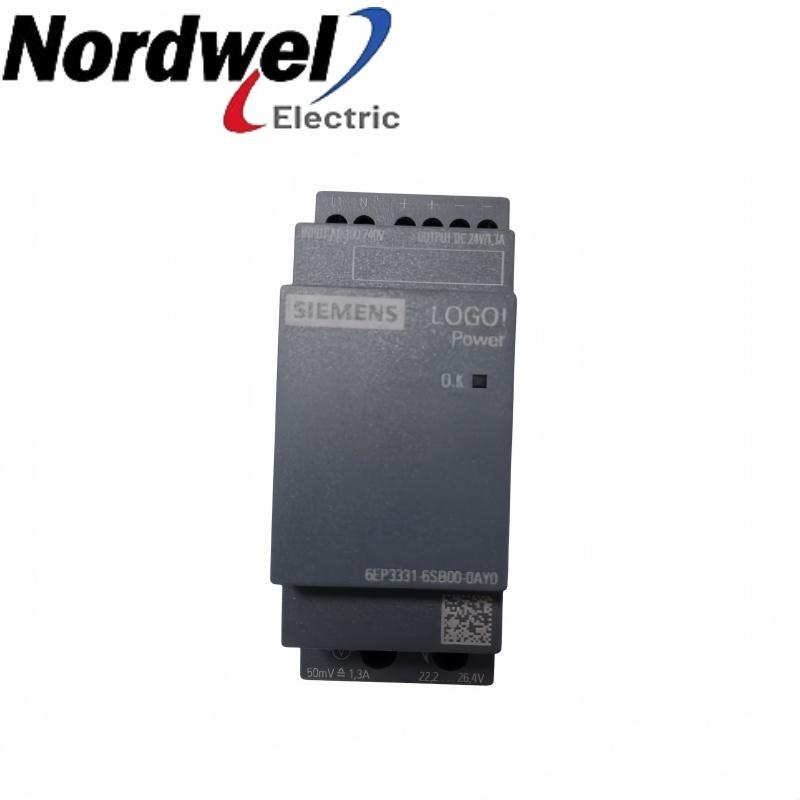

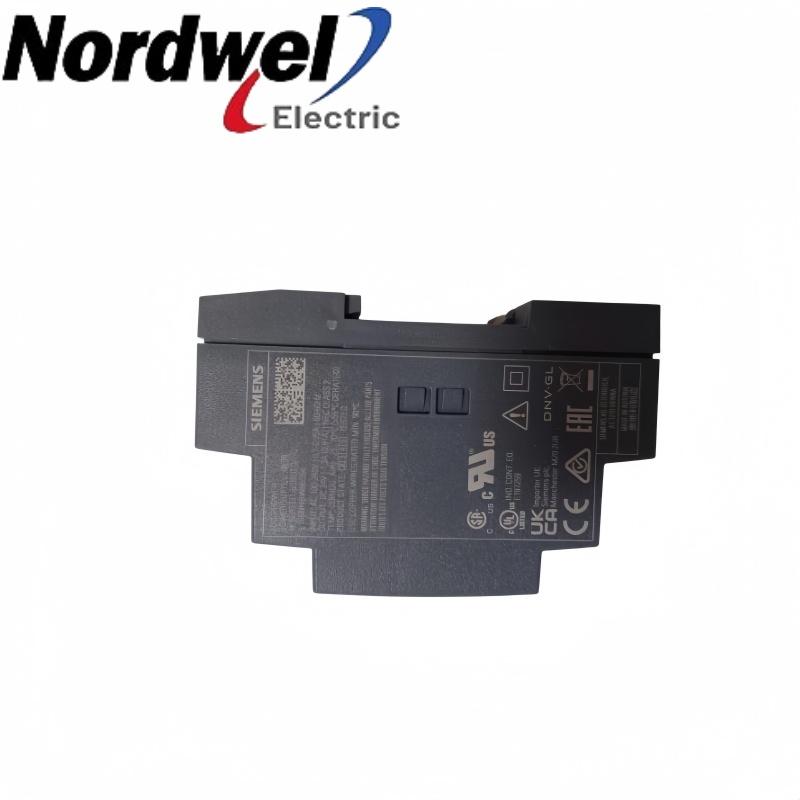

Siemens 6EP3331-6SB00-0AY0 24 V DC 1.3 A power supply product image

Siemens 6EP3331-6SB00-0AY0 24 V DC 1.3 A power supply

EMAIL SALES

LOGO!Power

6EP3331-6SB00-0AY0 — 24 V DC 1.3 A power supply

A regulated 24 V DC output supplies up to 1.3 A under the stated conditions. The compact supply accepts nominal 100–240 V AC input.

SiemensLOGO!Power100–240 V AC24 V DC; 1.3 A

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6EP3331-6SB00-0AY0 product profile

ManufacturerSiemens

Exact model6EP3331-6SB00-0AY0

Product type24 V DC 1.3 A power supply

Product familyLOGO!Power

Primary roleRegulated control power

Interface context24 V DC; 1.3 A

Brand:
SIEMENS
Item NO.:
6EP3331-6SB00-0AY0
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

6EP3331-6SB00-0AY0 configuration inquiry

Get a precise quote for 6EP3331-6SB00-0AY0

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

24 V DC 1.3 A power supply configuration

This LOGO!Power version is selected by its 1.3 A continuous output rating and 36 mm enclosure width. Its output adjustment, load demand and installation conditions must be reviewed together before connected devices are energized.

Regulated outputProvides nominal 24 V DC for loads within the 1.3 A rating.

Mains interfaceUses the listed wide-range AC input rather than a low-voltage module supply.

Load allocationCheck the connected steady-state and startup current demand.

Panel integration36 mm-wide enclosure with screw-terminal wiring.

Engineering selection points

Temporary overload capability is not an additional continuous output rating.
The green status LED reports output voltage OK; verify the voltage at the connected load.
Review load demand and allowed device input voltage before changing the output adjustment.

Official product data

6EP3331-6SB00-0AY0 key specifications

Nominal AC input	100–240 V AC
Nominal frequency	50/60 Hz; permitted 47–63 Hz
Nominal DC output	24 V DC
Rated output current	1.3 A
Output adjustment	22.2–26.4 V DC
Normal status indication	Green LED: output voltage OK
Enclosure rating	IP20
Connection	Screw terminals
Enclosure W × H × D	36 × 90 × 53 mm

Siemens exact-product technical data.

Pre-order check 01

Installation environment

Check the mounting, connection and operating conditions for this exact configuration before installation.

Isolate the AC input before connecting or replacing the supply.
Install in a suitable enclosure with the required terminal and ventilation space.
Verify mains input and DC output wiring before energizing.
Measure output voltage under the intended connected load.

Record the installed arrangement and the final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete item to its field interface, mechanical arrangement and configured system.

Input: Nominal 100–240 V AC; check actual mains and frequency.
Output voltage: 24 V DC nominal; check connected-device voltage limits before adjustment.
Load current: Keep continuous connected demand within the 1.3 A rating and applicable operating conditions.
Mechanical installation: 36 × 90 × 53 mm housing; provide suitable panel mounting and wiring space.
Protection and verification: Coordinate circuit protection and verify the voltage at the load after connection.

Size the supply for continuous and startup load demand; verify protection, temperature conditions and load-end voltage.
