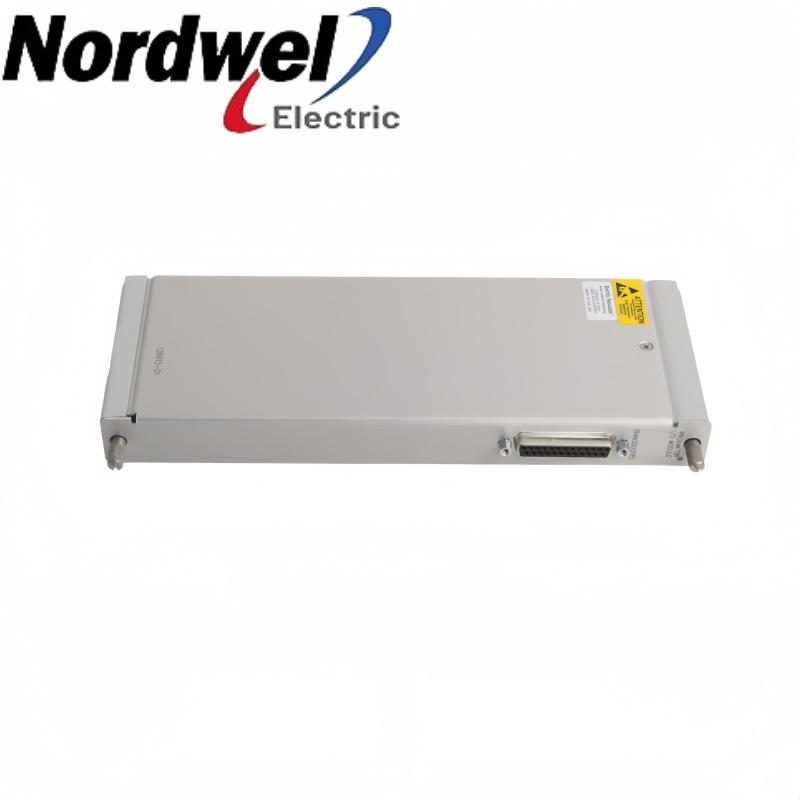

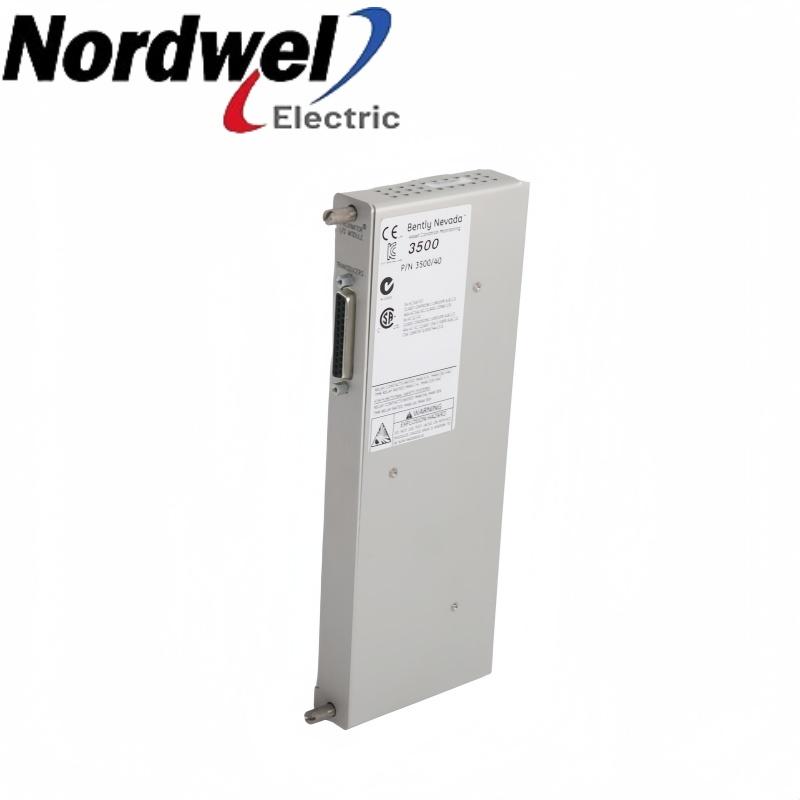

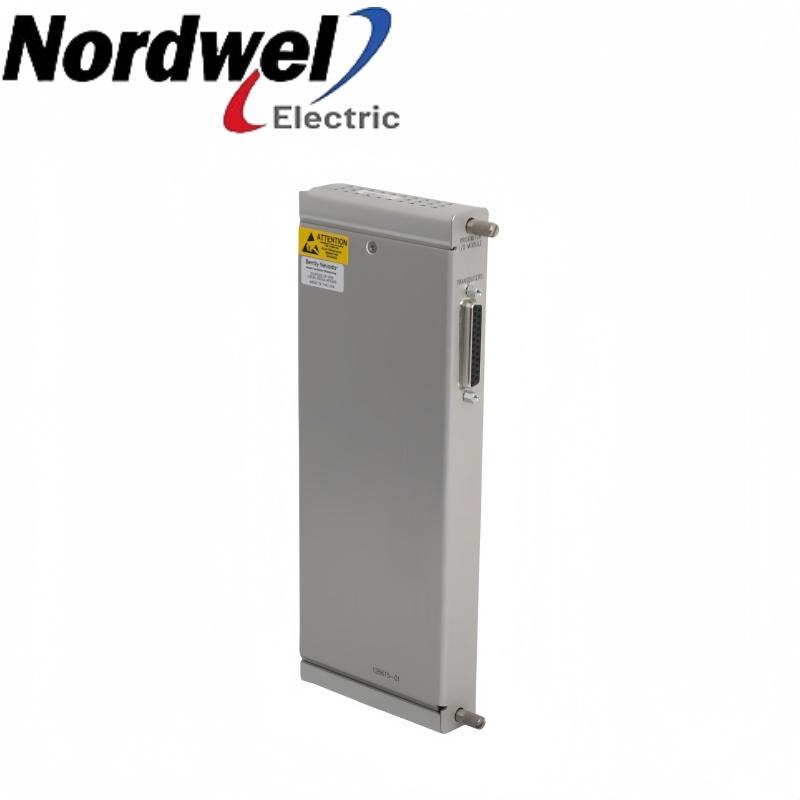

Bently Nevada 3500/40M 126615-01 Proximitor I/O module with external terminations product view

Bently Nevada 3500/40M 126615-01 Proximitor I/O module with external terminations

EMAIL SALES

Bently Nevada 3500/40M

3500/40M 126615-01 - Proximitor I/O module with external terminations

3500/40M 126615-01 connects proximity signals through external terminations. Match the field blocks and cables to the installed channels.

Bently Nevada3500/40MExternal Proximitor I/O

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

3500/40M 126615-01 product profile

ManufacturerBently Nevada

Exact model3500/40M 126615-01

TerminationExternal

Sensor contextProximity transducers

Monitor channelsUp to four

Field connectionSeparate external blocks and cables

Channel programmingPairs: 1-2 and 3-4

Verified functionProximitor field-signal interface

Brand:
Bently Nevada
Item NO.:
3500/40M 126615-01
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

3500/40M 126615-01 configuration inquiry

Get a precise quote for 3500/40M 126615-01

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

3500/40M 126615-01 function and interfaces

3500/40M 126615-01 is a Proximitor I/O module with external terminations for the 3500/40M installation. External termination blocks and cable are ordered separately for each I/O module.

Remote field terminationRoute proximity-transducer wiring through the selected external blocks.

Proximitor monitor connectionCarry the selected field signals into the matched four-channel monitor installation.

Cable-path coordinationMatch the termination hardware and signal cable instead of substituting a direct internal connection.

Configured measurement supportSupport the field interface for the vibration or position function selected in the front monitor.

Installation and selection boundaries

The spare is the external-termination Proximitor I/O assembly, not the front signal-processing monitor.
External termination blocks and cable are ordered separately for each I/O module.
The monitor channels are programmed in pairs; the external I/O alone does not establish the measurement type.

Official product data

3500/40M 126615-01 key specifications

Component	Proximitor I/O module
Termination arrangement	External terminations
Matched monitor signal inputs	One to four proximity transducer signals
External termination blocks	Required separately for each I/O module
External cable	Ordered separately
Monitor channel configuration	Programmed in pairs
Installed measurement functions	Radial vibration, thrust, eccentricity, differential expansion or REBAM
Configuration tool	Bently Nevada 3500 Rack Configuration Software

Bently Nevada datasheet 141535 Rev. R, pages 1-2 and 9-11.

Pre-order check 01

Installation environment

Preserve the approved protection arrangement while installing the correct component and field connections.

Label each proximity signal and retain the channel-pair configuration before disconnecting the external cable.
Check that the external termination block and cable are both available and match the installed wiring.
Seat and secure the I/O connection without changing the approved cable route or shielding arrangement.
Verify the restored channel status, scaling and configured measurement before returning the affected protection function to service.

Keep the installed wiring and configuration records available for controlled commissioning checks.

Pre-order check 02

Compatibility confirmation

Review the complete identity together with the fitted interfaces and installed configuration.

Complete identity: 3500/40M 126615-01 external-termination Proximitor I/O.
Termination hardware: Match the external block connector style and its separately supplied signal cable.
Transducers: Confirm each proximity transducer and the monitor sensitivity selected for that channel.
Channel configuration: Retain the pair programming, measurement type and applicable monitor/software revision.
Installation: Review cabinet routing, field continuity and the approved monitoring availability during replacement.

Match 3500/40M 126615-01 with the installed monitor, field wiring, configuration and applicable installation requirements.
