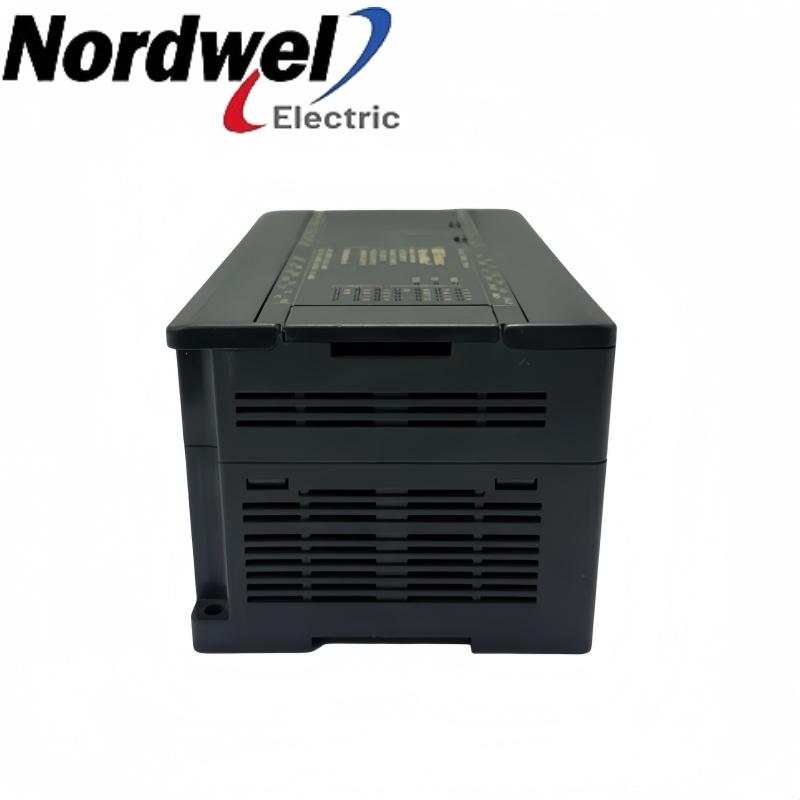

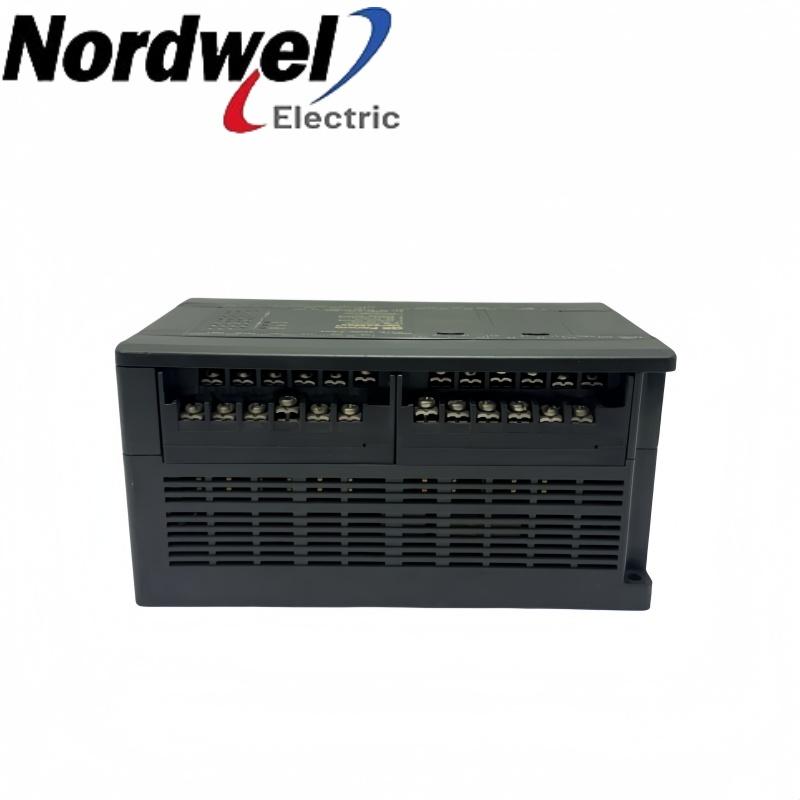

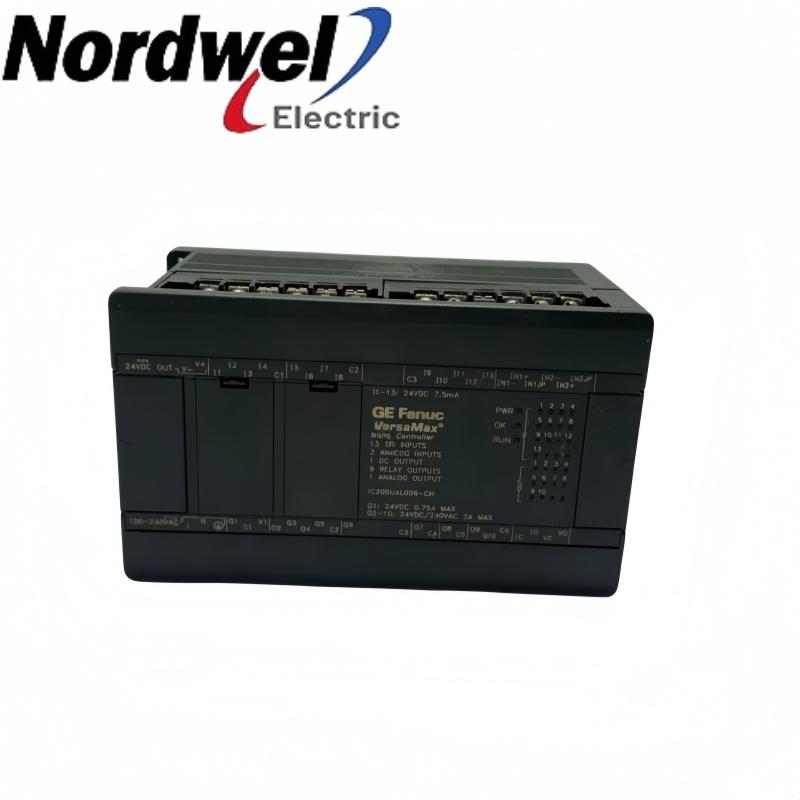

General Electric IC200UAL004 12 VDC relay and analog micro controller product images

General Electric IC200UAL004 12 VDC relay and analog micro controller

EMAIL SALES

VersaMax Micro 23-point

IC200UAL004 — 12 VDC relay and analog micro controller

IC200UAL004 combines 12 VDC inputs, relay outputs and three analog channels. Its analog circuits accept configured voltage or current signals.

General ElectricVersaMax Micro 23-point2 analog inputs and 1 output12 V DC inputs and relay outputs

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UAL004 product profile

ManufacturerGeneral Electric

Exact modelIC200UAL004

Product type12 VDC relay and analog micro controller

Product familyVersaMax Micro 23-point

Primary roleMixed discrete and analog control

Interface context12 V DC inputs and relay outputs

Brand:
General Electric
Item NO.:
IC200UAL004
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

IC200UAL004 configuration inquiry

Get a precise quote for IC200UAL004

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

12 VDC relay and analog micro controller configuration

IC200UAL004 accepts thirteen nominal 12 V DC discrete inputs and two differential analog inputs. It provides ten normally open relay outputs and one single-ended analog output. Its 12 V CPU supply, relay field-power circuits and configurable analog wiring are separate selection considerations.

Low-voltage state sensingReads 12 V discrete device states using the configured input logic.

Relay actuationSwitches externally powered loads through normally open relay contacts.

Instrument measurementAccepts two differential voltage or current analog measurements.

Analog command generationProvides one configured voltage or current output for a connected control device.

Engineering selection points

Discrete input voltage is 12 V DC; do not apply the 24 V input specification of another configuration.
The analog channels are non-isolated despite the separate field-to-logic isolation specifications elsewhere in the controller.
Relay outputs may be controlled by high-speed counters but cannot serve as pulse-train or PWM outputs.

Official product data

IC200UAL004 key specifications

CPU supply	12 V DC nominal; 9.6-15 V DC
Discrete inputs	13 nominal 12 V DC inputs
Discrete outputs	10 normally open Form A relays
Relay switching capacity	2 A per output, subject to stated load conditions
Analog inputs	2 differential, non-isolated
Analog output	1 single-ended, non-isolated
Analog ranges	0-10 V, 0-20 mA or 4-20 mA
Auxiliary supply	12 V DC, 200 mA maximum combined input/device load
Serial ports	RS-232/RJ45 and RS-485/DB15

Emerson GFK-1645M, sections 5.1-5.4.5 and chapter 15.

Pre-order check 01

Installation environment

Check the mounting, connection and operating conditions for this exact configuration before installation.

Supply the CPU with the specified 12 V DC source and check startup/inrush capability separately from steady-state load.
Disconnect power before removing the screw-retained terminal assemblies and preserve field-wire identification.
Set analog voltage/current operation and the current-mode input jumpers to match the instruments.
Provide enclosure ventilation, protective grounding and external relay-load power and protection as specified.

Record the installed arrangement and the final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete item to its field interface, mechanical arrangement and configured system.

Controller code: Match IC200UAL004 and its 12 V DC CPU/input arrangement.
Discrete devices: Match the positive/negative input logic and nominal input voltage to the connected sensor circuits.
Relay loads: Check contact voltage, load type, current and external protective devices.
Analog instruments: Match voltage/current range, differential input wiring and non-isolated signal references.
Serial host: Use the correct RS-232 or RS-485 cable, protocol and applicable CPU firmware.

Confirm the 12 V input circuits, externally supplied relay loads and configured analog ranges before replacing IC200UAL004.
