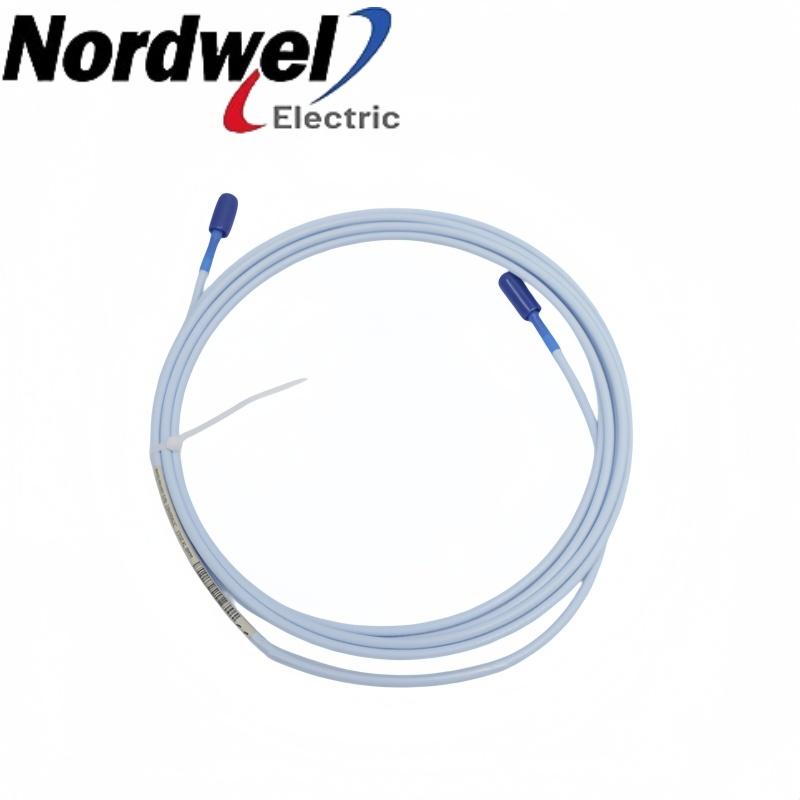

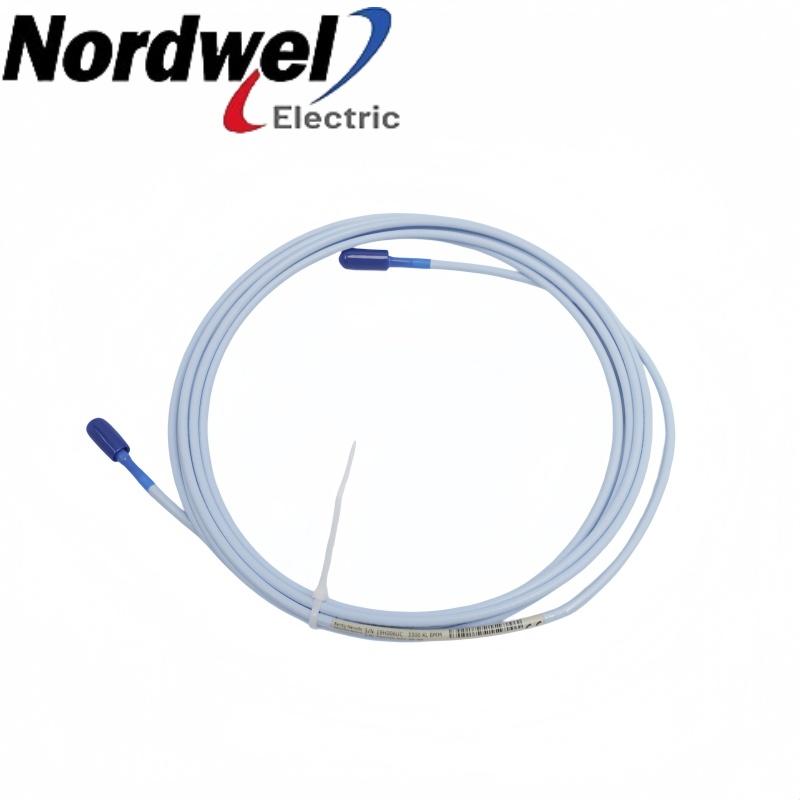

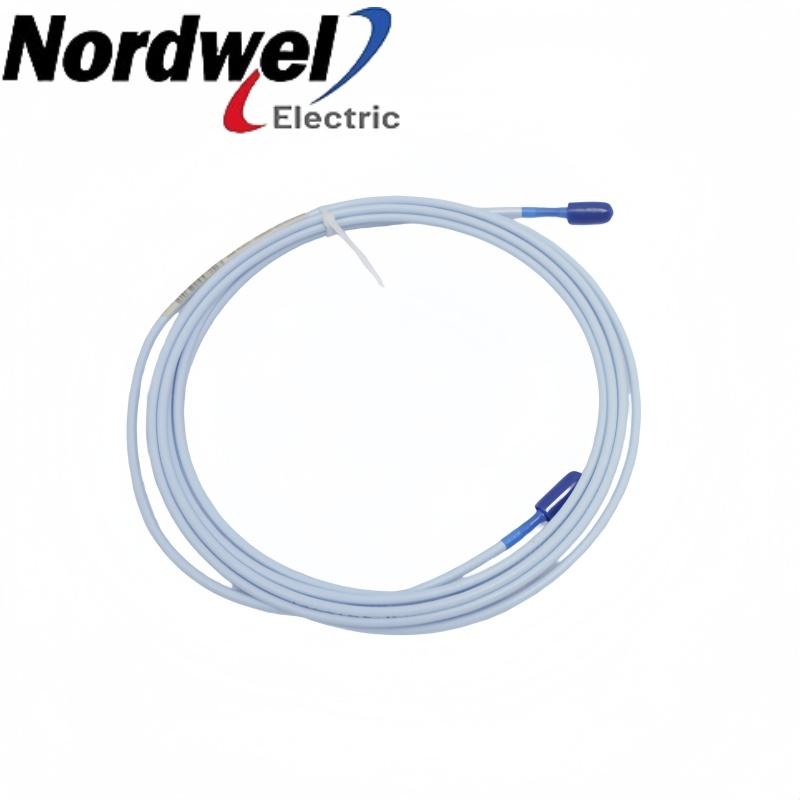

Bently Nevada 330130-035-00-05 3.5 m standard extension cable product image

Bently Nevada 330130-035-00-05 3.5 m standard extension cable

EMAIL SALES

3300 XL extension cable

330130-035-00-05 — 3.5 m standard extension cable

A 3.5 m standard cable extends the proximity-probe connection. Include the probe lead when matching total electrical length.

Bently Nevada3300 XL extension cable3.5 m3.5 m; standard cable

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

330130-035-00-05 product profile

ManufacturerBently Nevada

Exact model330130-035-00-05

Product type3.5 m standard extension cable

Product family3300 XL extension cable

Primary roleProbe signal extension

Interface context3.5 m; standard cable

Brand:
Bently Nevada
Item NO.:
330130-035-00-05

Inquiry now

330130-035-00-05 configuration inquiry

Get a precise quote for 330130-035-00-05

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

3.5 m standard extension cable configuration

The 035 length option provides a 3.5 m extension, while construction option 00 selects standard cable without armor or an installed connector protector. The 05 approval option must be matched to the markings and installation conditions supplied with the item.

Lead extensionCarries the probe connection to its matched signal conditioner.

Length matchingThe 3.5 m extension is included in the calibrated electrical length.

Joint protectionProvide suitable environmental protection at the mating connection.

RoutingProtect the standard cable against mechanical damage.

Engineering selection points

A standard extension is not a FluidLoc cable selection.
Maintain the selected electrical length rather than trimming the cable to remove slack.
Locking coaxial connections are hand-tightened; connector protectors are recommended for environmental protection.

Official product data

330130-035-00-05 key specifications

Extension length	3.5 m
Cable option	00 — standard cable
Armor	Not fitted in construction option 00
Connector protection	No installed connector protector in option 00
Connection	Miniature coaxial ClickLoc connections
System selection	Probe length + extension length = selected system length
Approval option	05 — CSA / ATEX / IECEx option

Bently Nevada 141194, Rev. AN.

Pre-order check 01

Installation environment

Check the mounting, connection and operating conditions for this exact configuration before installation.

Confirm the 3.5 m route before cable installation.
Protect the unarmored cable from pinching and abrasion.
Keep coaxial mating surfaces clean and tighten the ClickLoc joints by hand.
Verify the full probe-and-extension length and gap response after reconnection.

Record the installed arrangement and the final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete item to its field interface, mechanical arrangement and configured system.

Probe connection: Match the intended proximity-probe connection and cable construction.
Total electrical length: Include 3.5 m plus the actual probe lead in the selected chain length.
Conditioner: Use the signal conditioner configured for that complete electrical length.
Environment: Protect standard cable and the exposed mating joint for the installation.
Markings: Confirm the supplied 05 approval markings and associated installation requirements.

Keep the complete electrical-length combination unchanged during replacement.
