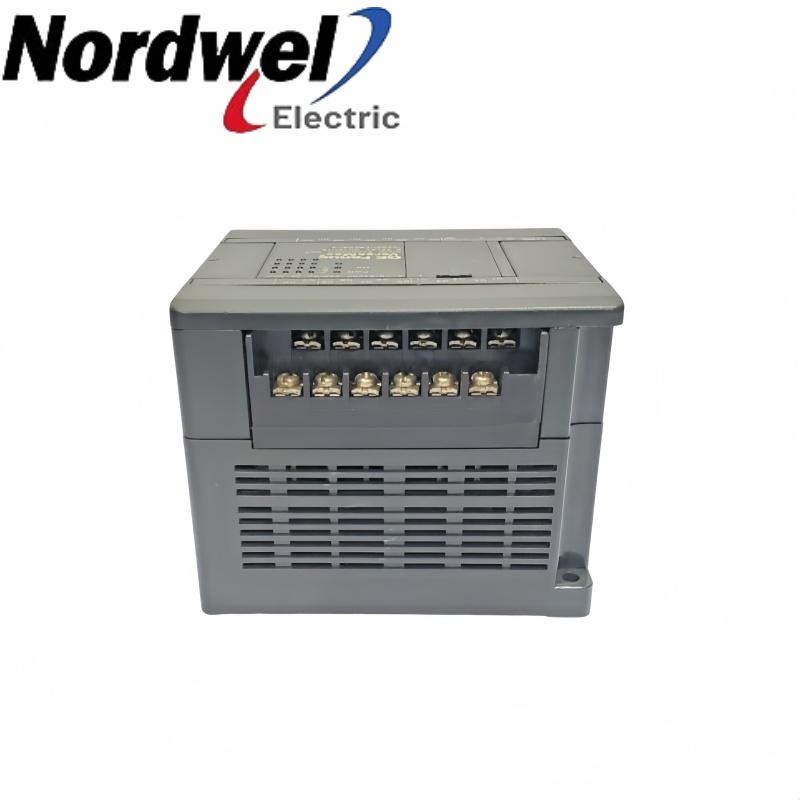

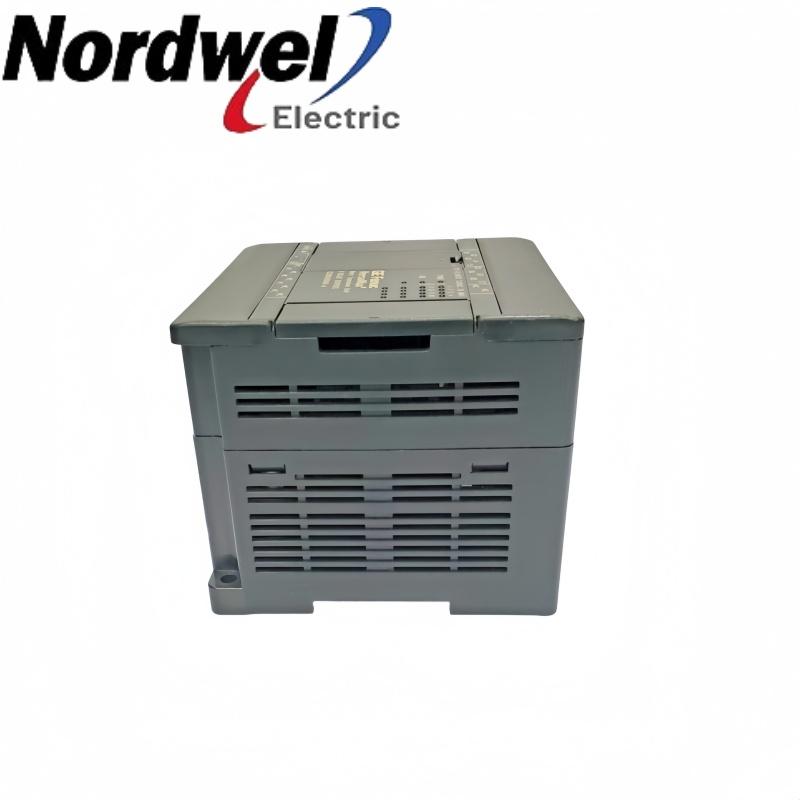

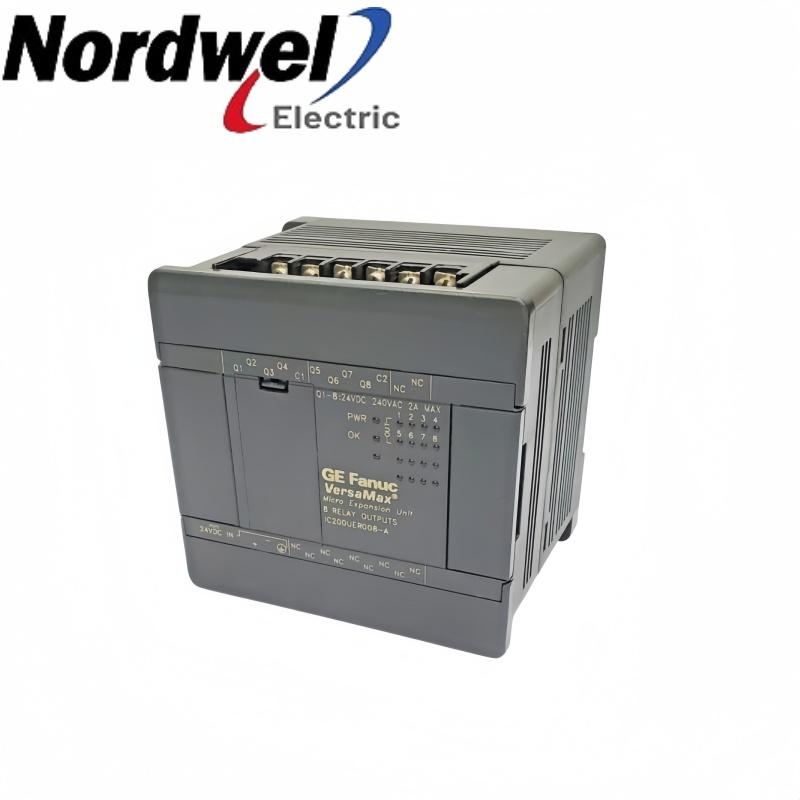

General Electric IC200UEC008 8-point source-output I/O expansion unit product image

General Electric IC200UEC008 8-point source-output I/O expansion unit

EMAIL SALES

General Electric VersaMax Micro expansion

IC200UEC008 - 8-point source-output I/O expansion unit

IC200UEC008 adds four DC inputs and four source-type transistor outputs. It connects to a supported Micro host through the expansion bus.

General ElectricVersaMax Micro expansion24 V DCExpansion I/O

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UEC008 product profile

ManufacturerGeneral Electric

Exact modelIC200UEC008

Product type8-point source I/O expansion

Product familyVersaMax Micro expansion

Primary roleHost-controlled I/O expansion

Interface contextSourcing field-output circuits

Brand:
General Electric
Item NO.:
IC200UEC008
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

IC200UEC008 configuration inquiry

Get a precise quote for IC200UEC008

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UEC008 function and field interfaces

IC200UEC008 adds four nominal 24 V DC inputs and four source-type transistor outputs to a supported Micro controller. The outputs include electronic short-circuit protection. Module power and external output-load power are distinct circuits, and the expansion connection must be installed with the system de-energized.

Input-state extensionAcquire four nominal 24 V DC field signals for the host I/O allocation.

Output load interfaceProvide four source-type transistor channels with the matching field wiring.

Expansion-bus connectionJoin the host or preceding unit through the left connector and continue the chain from the right connector.

Local status indicationUse local Power, OK and point LEDs when checking the installed I/O state.

Installation and selection boundaries

This is a host-controlled expansion unit, not a standalone CPU.
Separate module power from external output field power and retain the required output polarity.
Keep the keyed expansion chain within the host module-count and overall cable-length limits.

Official product data

IC200UEC008 key specifications

Expansion input count	4 nominal 24 V DC inputs
Expansion output count	4 source-type transistor outputs
Output protection	Electronic short-circuit protection (ESCP)
Module supply	24 V DC nominal; -20% / +25%
Output field supply	External nominal 12/24 V DC source
Maximum load	0.7 A per point; 3 A per common
Auxiliary output allowance	200 mA combined input/user-device load
Standard input response	4 ms typical, OFF-to-ON or ON-to-OFF
Connection arrangement	Micro expansion-bus chain

Emerson GFK-1645M, sections 9.1-9.2; chapter 15 installation requirements.

Pre-order check 01

Installation environment

Provide a grounded, ventilated installation and keep each field circuit matched to its terminal function.

Mount on a vertical surface in an appropriate enclosure; allow approximately 50 mm ventilation space and prevent condensation.
Identify the 24 V DC module power terminals separately from field input and output circuits.
Match the transistor output polarity, external field supply and load-return wiring.
Isolate power before changing expansion connections, preserve keyed orientation and coordinate host/expansion startup.

Keep the installed wiring and configuration record available for controlled restart checks.

Pre-order check 02

Compatibility confirmation

Check identity, power, field circuits and the actual host or controller configuration together.

Complete identity: IC200UEC008; match the required hardware revision.
Power arrangement: 24 V DC nominal module power; output field power is separate.
Input devices: 4 nominal 24 V DC input circuits; preserve the assigned commons and field-device wiring.
Output circuits: Four source-type transistor channels with ESCP.
Host / configuration: Supported 14- to 64-point Micro host; up to four expansion units and 2 m total expansion cable.

IC200UEC008 adds four nominal 24 V DC inputs and four source-type transistor outputs to a supported Micro controller. Keep the full model and actual terminal configuration matched before energizing.
