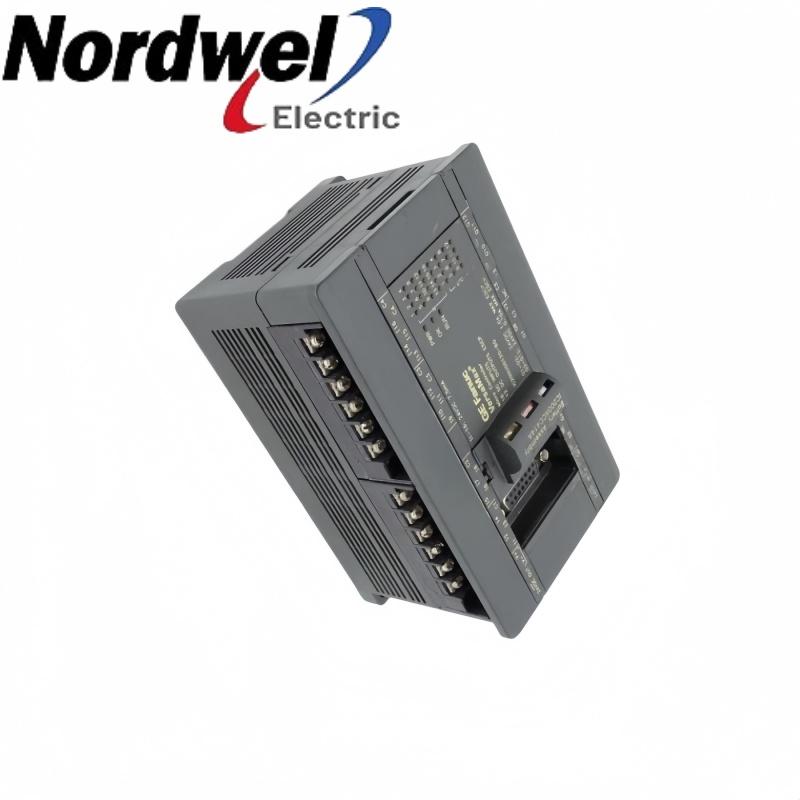

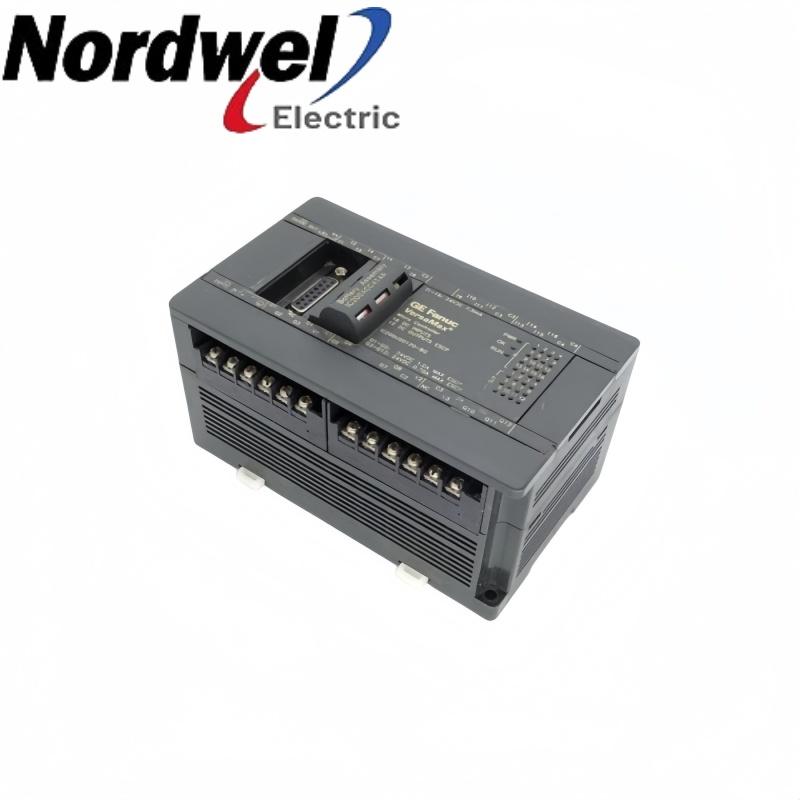

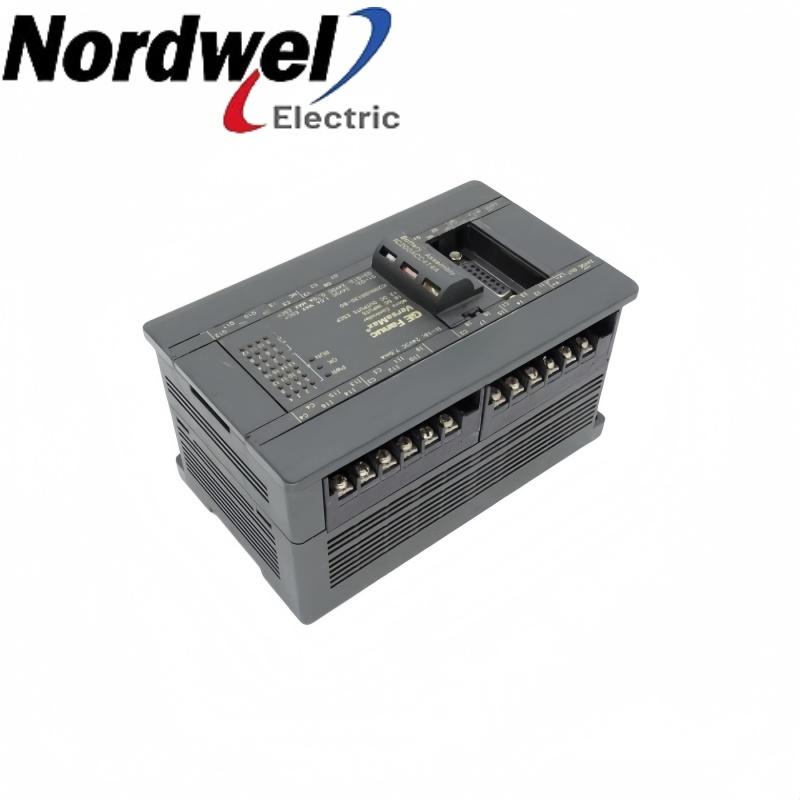

General Electric IC200UDD120 24 VDC ESCP transistor-output controller product images

General Electric IC200UDD120 24 VDC ESCP transistor-output controller

EMAIL SALES

VersaMax Micro 28-point

IC200UDD120 — 24 VDC ESCP transistor-output controller

IC200UDD120 combines 16 DC inputs with 12 short-circuit-protected transistor outputs. The 24 VDC CPU supports counters and selected pulse functions.

General ElectricVersaMax Micro 28-point12 outputs with electronic protection24 V inputs and transistor loads

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UDD120 product profile

ManufacturerGeneral Electric

Exact modelIC200UDD120

Product type24 VDC ESCP transistor-output controller

Product familyVersaMax Micro 28-point

Primary roleProtected DC discrete control

Interface context24 V inputs and transistor loads

Brand:
General Electric
Item NO.:
IC200UDD120
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

IC200UDD120 configuration inquiry

Get a precise quote for IC200UDD120

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

24 VDC ESCP transistor-output controller configuration

IC200UDD120 is a nominal 24 V DC, 28-point Micro controller with sixteen discrete inputs and twelve transistor outputs. Its electronic short-circuit protection distinguishes the output arrangement from externally fused transistor configurations. Keep the configured pulse functions, external load supplies and serial interfaces matched to the application.

Discrete sensor acquisitionCollects sixteen nominal 24 V DC input states for the program.

Protected DC switchingUses electronically short-circuit-protected transistor outputs for compatible loads.

Counter processingAssigns supported inputs to the configured high-speed counter arrangement.

Pulse-command generationUses selected output circuits for the configured HSC, pulse-train or PWM function.

Engineering selection points

ESCP applies to the transistor output circuits; it does not eliminate protection requirements elsewhere in the cabinet.
External output-load supplies are distinct from the CPU supply and auxiliary device-power allowance.
Selected pulse functions and ordinary discrete I/O must retain their configured assignments.

Official product data

IC200UDD120 key specifications

CPU supply	24 V DC nominal; 19.2-30 V DC
Discrete inputs	16 nominal 24 V DC inputs
Discrete outputs	12 transistor outputs
Output protection	Electronic short-circuit protection (ESCP)
Auxiliary supply	24 V DC, 200 mA maximum combined input/device load
Counter arrangements	Four Type A, or one Type A plus one Type B
Maximum counter frequency	10 kHz
Pulse/PWM frequency	5 kHz maximum
Serial ports	RS-232/RJ45 and RS-485/DB15

Emerson GFK-1645M, sections 6.1-6.3, 6.7-6.7.5 and chapter 15.

Pre-order check 01

Installation environment

Check the mounting, connection and operating conditions for this exact configuration before installation.

Use a nominal 24 V DC CPU source within the stated range and support its startup demand.
Identify the external output-load supplies independently of CPU and auxiliary power wiring.
Preserve input allocation, counter configuration and selected pulse-output assignments.
Disconnect power for expansion or terminal work and retain the enclosure ventilation and protective ground.

Record the installed arrangement and the final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete item to its field interface, mechanical arrangement and configured system.

Controller identity: Match IC200UDD120 and the installed hardware revision.
DC field signals: Use nominal 24 V DC input circuits and the approved field-common arrangement.
Output protection: Retain the ESCP transistor-output design rather than substituting another protection arrangement.
Counter and pulse setup: Match the selected input/output assignment, counter type and frequency requirements.
Serial and expansion layout: Keep the RS-232/RS-485 configuration and supported expansion chain consistent with the application.

Match IC200UDD120 by its ESCP outputs, configured counter/pulse assignments and external load-power arrangement.
