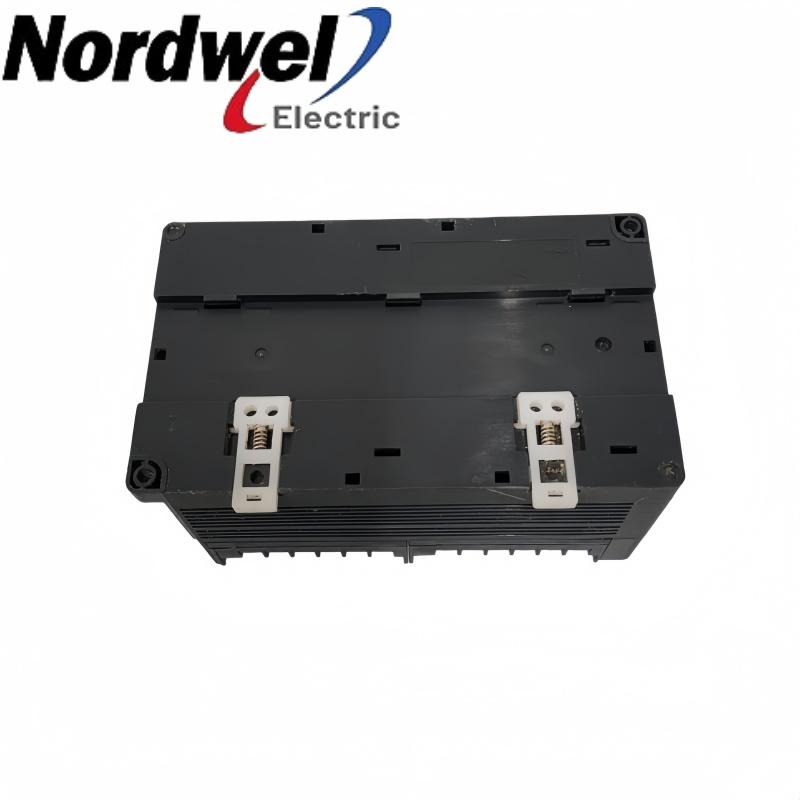

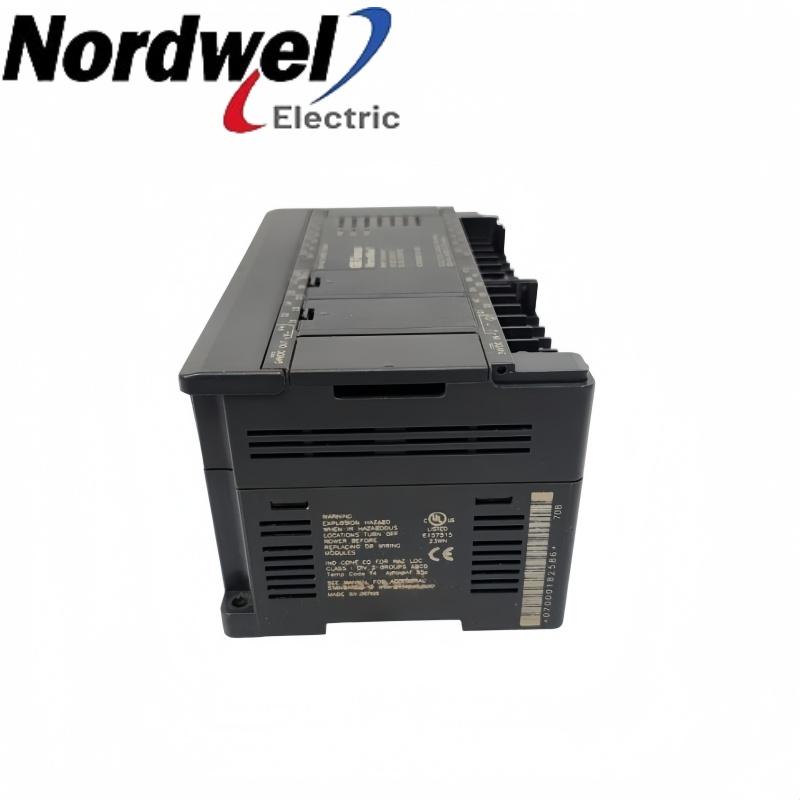

General Electric IC200UDD112 12 VDC transistor-output micro controller product images

General Electric IC200UDD112 12 VDC transistor-output micro controller

EMAIL SALES

VersaMax Micro 14-point

IC200UDD112 — 12 VDC transistor-output micro controller

IC200UDD112 provides eight 12 VDC inputs and six transistor outputs for discrete control. It uses a 12 V CPU supply and one RS-232 serial interface.

General ElectricVersaMax Micro 14-point8 inputs and 6 transistor outputs12 V DC field and load circuits

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC200UDD112 product profile

ManufacturerGeneral Electric

Exact modelIC200UDD112

Product type12 VDC transistor-output micro controller

Product familyVersaMax Micro 14-point

Primary role12 V discrete input/output control

Interface context12 V DC field and load circuits

Brand:
General Electric
Item NO.:
IC200UDD112
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

IC200UDD112 configuration inquiry

Get a precise quote for IC200UDD112

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

12 VDC transistor-output micro controller configuration

IC200UDD112 is a 14-point VersaMax Micro controller with eight configurable DC inputs and six positive-switching transistor outputs. It uses a nominal 12 V DC CPU supply, provides an auxiliary device-power output and supports Micro expansion units. Preserve the external output supply and protective-fuse arrangement during replacement.

Low-voltage sensingReads eight configured 12 V DC device states.

DC load switchingUses positive-switching transistor outputs with the external load supply.

Compact program executionRuns the discrete-control logic in the 14-point Micro CPU.

Serial servicingProvides its RS-232 connection for supported programming, communication and monitoring.

Engineering selection points

The controller has one RS-232 port; do not assume the separate RS-485 port of larger Micro units.
Auxiliary device power is shared with the input-circuit demand and has a combined current limit.
The output transistor protection arrangement uses external fuses; it must not be described as the ESCP output design.

Official product data

IC200UDD112 key specifications

CPU supply	12 V DC nominal; 9.6-15 V DC
Discrete inputs	8 nominal 12 V DC inputs
Discrete outputs	6 positive-switching DC transistor outputs
Auxiliary supply	12 V DC, 200 mA maximum combined input/device load
Program memory	9K words
Register memory	256 words
Serial interface	One RS-232 port
Expansion units	Up to 4
Output protection arrangement	External output fusing specified

Emerson GFK-1645M, sections 3.1, 3.7-3.7.5 and chapter 15.

Pre-order check 01

Installation environment

Check the mounting, connection and operating conditions for this exact configuration before installation.

Verify the 12 V CPU supply range and its ability to support startup demand.
Match the input commons and field-device voltage to the configured DC input logic.
Preserve the external DC output supply and fit the specified fast protective fuses.
Isolate power before expansion or terminal changes and maintain enclosure ventilation and grounding.

Record the installed arrangement and the final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete item to its field interface, mechanical arrangement and configured system.

Exact 14-point unit: Match IC200UDD112 and the installed controller revision.
Field inputs: Use compatible nominal 12 V DC devices and the correct input-common arrangement.
Transistor loads: Match positive-switching output wiring, external DC supply and protective devices.
Serial equipment: Use the supported RS-232 interface rather than assuming an RS-485 or Ethernet connection.
Expansion chain: Use supported Micro expansion units, maintain connector orientation and coordinate power-up.

Confirm the 12 V field circuits, RS-232 connection and external output protection for IC200UDD112.
